ABB ZN0010 Control and Automation Board - IS2
Part Number: ZN0010
Quick Summary
ABB ZN0010 Control and Automation Board is designed to integrate control and automation components inside IS2 enclosures for automation. Too often, shops struggle with pre-fabricated enclosures that don’t align with varied panel dimensions or mounting requirements. It carries a CE Declaration of Conformity, RoHS compliance, and REACH declarations to help streamline regulatory approvals. The kit approach with pre-assembled mounting and aerated flanges reduces field labor and accelerates project timelines, delivering consistent quality for modern automation cabinets.
Product Information
Extended Description

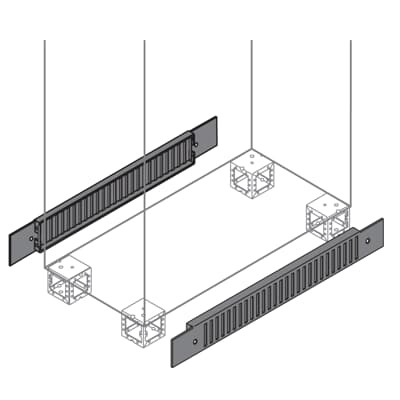

ZN0010 ABB: N.2 vent.plinth flanges 100x1000mm (HXW)
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet with pre-cuts
Options Provided
Aerated flanges front/back H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
115 mm
Product Net Height
100 mm
Product Net Depth / Length
1030 mm
Product Net Weight
3.1660 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.483 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
The mounting kit option provides a pre-assembled base and front/back installation, enabling engineers to install quickly and confidently in IS2 enclosure environments, which translates to reduced commissioning time and lower labor costs. The pickled steel sheet with pre-cuts delivers durable, corrosion-resistant panels that simplify fabrication tasks on the shop floor while supporting repeatable mounting accuracy across multiple projects. With reference depths of 300, 400, 500, 600, 800 and 1000 mm and reference heights from 1400 to 2200 mm, ZN0010 supports scalable control panels without custom rework, boosting design flexibility and reducing total project risk. The inclusion of 6 Flanges as an accessory type and aerated front/back flanges H=100 mm improves airflow and installation accessibility, enhancing reliability in demanding environments. Compliance documentation, including CE, RoHS, and REACH declarations, accelerates procurement and regulatory approvals, while ETIM classifications and WEEE status simplify data exchange and end-of-life planning for your maintenance teams. The pre-assembled kit and mounting type—Kit | Pre assembled—reduce on-site integration challenges, enabling faster deployment in routine automation cabinet builds and expansion projects. Industry practitioners appreciate the predictable performance of a standardized enclosure interface, minimizing customization and enabling repeatable ROI across plant-wide control systems.
Get a Quick Quote for a ABB ZN0010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN0010?
Enquire Now
FAQs
ZN0010 ships as a kit with pre-assembled mounting and 6 Flanges, designed specifically for IS2 Enclosures for Automation. It fits standard IS2 panel configurations and is compatible with reference depths from 300 to 1000 mm and reference heights from 1400 to 2200 mm, ensuring straightforward integration into common automation cabinets.
Key dimensions include a product net width of 115 mm, net height of 100 mm, and net depth (length) of 1030 mm. The product net weight is 3.1660 kg, with a package unit weight of 3.483 kg. The enclosure uses pickled steel sheet with pre-cuts and supports aerated front/back flanges for cooling and access.
ZN0010 is intended for IS2 Enclosures used in automation applications as a dedicated Control and Automation Board. It is supplied as a mounting kit (Kit | Pre assembled) with base/front/back mounting options, and is suitable for Automation control panels requiring robust, standardized interfaces with IS2 enclosure systems.
ZN0010 includes a Declaration of Conformity CE, RoHS Information with RoHS Date 20250108, and REACH Declaration with REACH Date 20250108. WEEE categorization is Product Not in WEEE Scope, ensuring regulatory clarity. Documentation supports swift approval and compliant procurement.
The pre-assembled mounting kit reduces field labor and commissioning time, delivering faster project turnover and lower installation risk. Standardized dimensions and modular reference options support scalable automation installations, while available manuals (1STM604121R0006) and data (IS2 Enclosures Technical Catalogue 2024) streamline maintenance planning and lifecycle management.
