ABB 2CPX041644R9999 Main Circuit Breaker - DIN EN 61439-3
Part Number: ZN1000
Quick Summary
ABB 2CPX041644R9999 Main Circuit Breaker is a Tmax module designed for reliable power distribution in modular panels. Designers often face cramped layouts and integration challenges when adding high-current MCCBs into 48-DIN enclosures. This unit aligns with CE conformity and DIN EN 61439-3/2 standards, RoHS and REACH requirements, providing regulatory assurance. By combining a robust enclosure, modular compatibility, and a clear expansion path, it reduces project risk and lifecycle costs while enabling scalable panel builds. Industry leaders appreciate the clarity of integration with XT1/XT3 options and the 500x300 mm footprint that fits standard electrical rooms. With built-in 90-degree closure and ease of mounting in WR or EDF frames, installation time is minimized.
Product Information
Extended Description

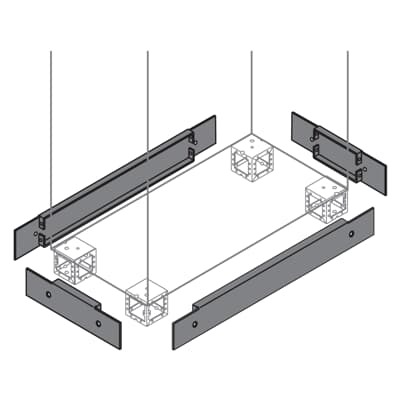

ZN1000 ABB: N.2 plinth flanges 100x1000mm HxW
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Blind flanges front/back/side H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
105 mm
Product Net Height
63 mm
Product Net Depth / Length
1020 mm
Product Net Weight
3.166 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.483 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
