ABB ZN1010 Control Board - IS2 Enclosures for Automation
Part Number: ZN1010
Quick Summary
ABB ZN1010 is a control board for automation enclosures used in industrial control panels. Engineers often struggle with mounting flexibility and compatibility in IS2 systems. This model supports CE conformity, RoHS compliance, and REACH declarations to streamline regulatory reviews. Its pickled steel construction and modular plinth options reduce installation time and extend service life in harsh settings. Designed for IS2 enclosures for automation, it ships pre-assembled with mounting kit options, enabling faster deployment and reduced risk of field misalignment. Compliance-focused buyers will appreciate RoHS, REACH and CE declarations integrated in the product data, easing sourcing audits. This combination supports scalable automation projects from cabinet to line level.
Product Information
Extended Description

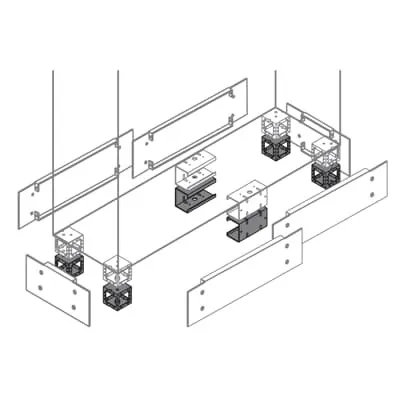

ZN1010 ABB: N.4 angle pieces H=100mm
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
7. Plinth
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Additional Plinth H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
230 mm
Product Net Height
100 mm
Product Net Depth / Length
230 mm
Product Net Weight
3.54 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.830 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: Kit | Pre assembled mounting type with 7. Plinth; Business Impact: speeds installation, ensures precise alignment, and reduces field adjustments; Application: IS2 enclosure systems for automation, control and automation boards, enabling faster time-to-value on new builds. Feature: Pickled steel sheet construction; Business Impact: provides robust mechanical protection and corrosion resistance in tough factory environments; Application: control cabinets subjected to dust, humidity, and physical impacts. Feature: Modular footprint with 230 mm width and depth; Business Impact: enables compact enclosures while accommodating larger control components; Application: scalable automation cabinets and space-constrained control panels. Feature: Compliance suite RoHS, REACH, CE; Business Impact: simplifies audits and supplier qualification; Application: regulated manufacturing settings with strict environmental and safety requirements. Feature: ETIM and eClass alignment; Business Impact: improves cataloging, BOM integration, and ERP workflows; Application: procurement and engineering workflows in large automation projects. Feature: Weight and packaging clarity; Business Impact: easier handling and installation logistics; Application: on-site assembly and cabinet mounting with predictable transport requirements. Feature: Documentation and environment suitability; Business Impact: reduces risk during commissioning; Application: IS2 Enclosures Technical Catalogue 2024 references, CE declarations, and WEEE considerations.
Get a Quick Quote for a ABB ZN1010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN1010?
Enquire Now
FAQs
ABB ZN1010 ships as a pre-assembled mounting kit designed for IS2 enclosures, with an integrated 7. Plinth option to enable precise alignment. Its compact 230x230x100 mm footprint fits many IS2 configurations, reducing fieldwork and misalignment risks. The kit approach speeds installation and ensures consistent panel mounting, even in tight cabinets.
The product net dimensions are 230 mm (width) by 100 mm (height) by 230 mm (depth), with a net weight of 3.54 kg. Packaged weight is 3.83 kg. These metrics support predictable handling and integration into standard control cabinet layouts without exceeding enclosure clearances.
Yes. ABB ZN1010 is specified for IS2 Enclosures for Automation and is designed to mount within Control and Automation Board configurations. It aligns with IS2 installation practices, supports modular plinths, and enables scalable cabinet designs for factory automation projects.
ABB ZN1010 includes CE Declaration of Conformity, RoHS information dated 20250108, and REACH information with a 20250108 date. It is categorized as WEEE not in scope for this product, and ETIM 8/9 entries EC000721 help with cataloging and procurement compliance.
The pre-assembled mounting kit with plinth reduces installation time and field risk, while RoHS, REACH and CE declarations streamline audits. Its modular dimensions and pickled steel construction offer durable, scalable cabinet solutions that improve deployment speed, BOM accuracy, and long-term maintenance efficiency for automated facilities.
