ABB ZN1020 Control and Automation Board - CE
Part Number: ZN1020
Quick Summary
ZN1020 control and automation board enables centralized control inside IS2 automation enclosures. Engineers often face long installation times, modularity gaps, and mismatched mounting methods that slow projects and raise costs. This ABB solution carries CE conformity along with RoHS and REACH declarations, and aligns with ETIM EC000721 for standardised procurement, helping procurement teams consolidate parts. The design also leverages a pre-assembled mounting kit and a compatible IS2 enclosure interface, delivering predictable build quality. By choosing ZN1020 you gain faster deployment, reduced field wiring errors, and a clearer path to scalable automation assets across production lines.
Product Information
Extended Description

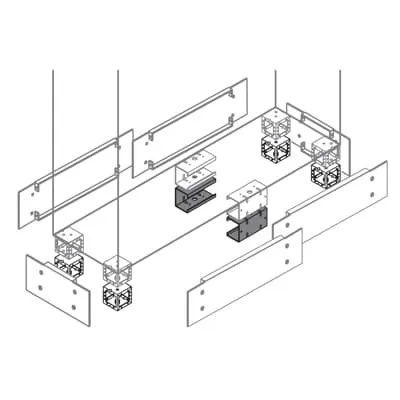

ZN1020 ABB: N.2 intermediate angle H=100mm
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
7. Plinth
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Additional Plinth H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
135 mm
Product Net Height
100 mm
Product Net Depth / Length
235 mm
Product Net Weight
2.38 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.380 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: Base front/back. Business Impact: Ensures a stable mechanical interface and straightforward alignment during cabinet build, reducing field alignment time. Application: Suitable for control cabinets within IS2 automation environments. Feature: Suitable For: IS2 Enclosures for Automation. Business Impact: Guarantees plug‑and‑play compatibility with ABB automation lines, cutting integration risk. Application: Ideal for modular control panels in high‑volume production lines. Feature: Accessory Type: 7. Plinth. Business Impact: Adds depth for cable management and clearance, improving serviceability. Application: Used where extra depth is needed without enclosure redesign. Feature: Mounting Type: Kit | Pre assembled. Business Impact: Reduces on‑site assembly time and wiring mistakes, accelerating deployment. Application: Best for projects requiring fast commissioning and repeatable configurations. Feature: Material: Pickled steel sheet. Business Impact: Delivers durable, corrosion‑resistant construction suitable for harsh environments. Application: Industrial cabinet components with long service life; weight 2.38 kg supports sturdy mounting. Feature: Dimensions: 135 mm W x 100 mm H x 235 mm D; Reference Depths 300–1000 mm. Business Impact: Enables precise space planning and scalable deployments. Application: Fits a range of IS2 enclosure widths and depths with consistent tolerances.
Get a Quick Quote for a ABB ZN1020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN1020?
Enquire Now
FAQs
The ZN1020 is designed to fit IS2 automation enclosures with a matching mounting kit. It features a compact footprint (135 mm W x 100 mm H x 235 mm D) and ships as a pre-assembled assembly, simplifying cabinet builds and reducing field wiring errors. Its plinth option also supports deeper cable management and expansion modules.
Net width is 135 mm, net height is 100 mm, and net depth is 235 mm. The unit weighs 2.38 kg. Reference depths range from 300 mm to 1000 mm, with reference heights from 1400 mm to 2200 mm and reference widths from 400 mm to 1200 mm, aiding precise space planning.
Yes. The ZN1020 carries a CE Declaration of Conformity for IS2, with RoHS information dated 20250108 and a REACH declaration dated 20250108. REACH information confirms no substances above 0.1 mass percentage, supporting regulatory compliance in most industrial environments.
ZN1020 offers a Mounting Type option of Kit or Pre assembled, and includes an Accessory Type labeled 7. Plinth, with an option for an Additional Plinth H=100 mm. These features reduce on-site labor and provide flexibility for varying enclosure depths and cable management requirements.
The pre-assembled mounting kit and standardized plinth options streamline commissioning, reducing installation time and wiring errors. The modular base‑element approach improves serviceability and scalability, enabling repeatable, faster upgrades across production lines, which translates to lower total cost of ownership and improved uptime over the cabinet lifecycle.
