ABB ZN1040 Control and Automation Board Kit - CE IS2
Part Number: ZN1040
Quick Summary
ZN1040 is a robust ABB control and automation board kit for IS2 enclosure installations in industrial automation. It addresses the challenge of reliably mounting a control module on pre-assembled plinths while keeping cable access straightforward and serviceability intact. This solution carries CE conformity with a Declaration of Conformity IS2, RoHS and REACH compliance, and aligns with ETIM classifications for base elements, supporting procurement efficiency and regulatory clarity. By pairing a durable pickled steel plinth with modular depth and height options, it delivers fast installation and scalable configurations, reducing downtime and inventory complexity. Buyers gain consistent performance across ABB IS2 enclosures, with clear documentation and a catalogue reference that aids design reviews and maintenance planning. This aligns with industry best practices for panel builders and OEMs.
Product Information
Extended Description

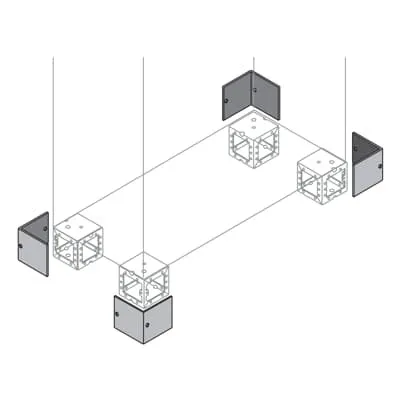

ZN1040 ABB: N.4 plinth covers
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
7. Plinth
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Covers “L” shaped for single plinth
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
105 mm
Product Net Height
100 mm
Product Net Depth / Length
105 mm
Product Net Weight
1.038 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.038 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: Kit or pre-assembled mounting simplifies installation. Business Impact: Reduces panel commissioning time and limits wiring rework, improving project timelines. Application: Ideal for ABB IS2 enclosure projects where automation boards require rapid, reliable mounting. Feature: Durable pickled steel sheet construction. Business Impact: Delivers long-term enclosure base integrity with corrosion resistance, lowering maintenance costs. Application: Suitable for industrial environments with standard exposure. Feature: Compact net dimensions and modular depth/width options. Business Impact: Enables a wide range of IS2 configurations with fewer SKUs, reducing inventory and design complexity. Application: Panel builders integrating control and automation boards in mixed enclosure sizes. Feature: Base front/back mounting and L-shaped cover options. Business Impact: Enhances enclosure access and serviceability while preserving enclosure aesthetics. Application: OEMs retrofitting or upgrading automation panels in existing lines. Feature: Regulatory compliance and ETIM alignment. Business Impact: Simplifies procurement, compliance checks, and documentation for audits. Application: Projects requiring CE/RoHS/REACH conformity and standardized base element classification.
Get a Quick Quote for a ABB ZN1040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN1040?
Enquire Now
FAQs
ZN1040 is provided as a kit or pre-assembled unit that fits the IS2 enclosure base; align the base front/back and mount onto the IS2 plinth, using the 105 mm net width/height/depth, and install the control board on the plinth. For details, consult the IS2 Enclosures Technical Catalogue 2024 and the 1STM604121R0006 manual.
The plinth measures 105 mm wide, 105 mm deep, and 100 mm high with a net weight of 1.038 kg. It supports reference lengths from 300 to 1000 mm and heights from 1400 to 2200 mm, with reference widths from 400 to 1200 mm, making it compatible with typical IS2 enclosure configurations.
Yes, ZN1040 is designed for IS2 Enclosures for Automation and for the Control and Automation Board class. It uses a kit or pre-assembled mounting type and supports L-shaped covers for a single plinth, aligning with ETIM EC000721 base element classification.
ZN1040 carries a CE Declaration of Conformity IS2, RoHS compliance (RoHS information, date 20250108), and a REACH declaration (no substances > 0.1 mass%). It is categorized under WEEE as not in scope and is classed in ETIM 8/9 EC000721.
Using ZN1040 reduces installation time through pre-assembled options, lowers risk with standardized base mounting, and minimizes part SKUs thanks to modular depth/width options. This translates to faster panel builds, easier maintenance planning, and predictable performance across ABB IS2 enclosures in automation projects.
