ABB ZN3000 Control and Automation Board - IS2 Enclosures
Part Number: ZN3000
Quick Summary
The ABB ZN3000 control and automation board enables compact, turnkey automation inside IS2 enclosures. Engineers often struggle with mounting compatibility, wiring complexity, and lengthy field installation when integrating control boards into rigid enclosure systems. This solution aligns with CE conformity, RoHS compliance since 2025-01-08, and REACH declarations, helping you meet regulatory requirements with confidence. By delivering a pre‑assembled mounting kit and IS2 enclosure compatibility, the ZN3000 reduces on-site labor, shortens project timelines, and supports scalable automation initiatives across manufacturing and process environments.
Product Information
Extended Description

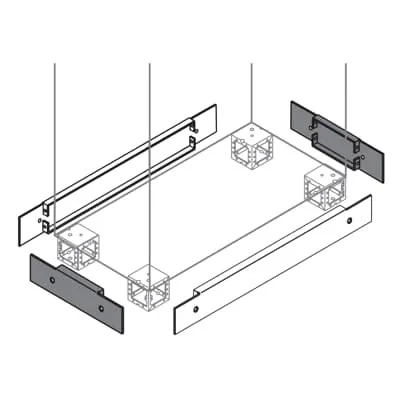

ZN3000 ABB: N.2 plinth flanges 100x300mm HxW
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Blind flanges front/back/side H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
105 mm
Product Net Height
63 mm
Product Net Depth / Length
320 mm
Product Net Weight
0.941 kg
Reference Depth/Length
300 mm
Reference Height
1400 mm | 1600 mm
Reference Width
600 mm | 800 mm | 1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.035 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: Pre-assembled mounting kit ensures fast, error-free installation → Business impact: Cuts on-site labor and risk of misalignment, accelerating project timelines in automation projects. Application: Suitable for IS2 enclosures in new line installations and retrofits, enabling rapid deployment of control and automation boards. Feature: Pickled steel sheet construction → Business impact: Enhances durability in harsh industrial settings, reducing maintenance costs and downtime. Application: Ideal for factory floors and outdoor-rated control rooms where corrosion resistance matters. Feature: Kit | Pre assembled mounting type → Business impact: Simplifies handling and eliminates guesswork during assembly, lowering installation variance. Application: Works with 600 mm widths and 1400 mm high IS2 enclosures for standardized line setups. Feature: Modular dimensions (Product Net Width 105 mm, Height 63 mm, Depth 320 mm) → Business impact: Frees cabinet space and ensures predictable fit within reference dimensions. Application: Supports compact control panels alongside existing electrical architectures. Feature: Material compliance (RoHS, REACH) → Business impact: Ensures regulatory adherence and smoother supplier audits. Application: Suitable for multinational plants requiring traceable material declarations. Feature: Documentation and standards (CE, ETIM EC000721, eClass V11.1) → Business impact: Improves procurement confidence and interoperability with downstream systems. Application: Facilitates integration with engineering workflows and ERP-based procurement.
Get a Quick Quote for a ABB ZN3000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN3000?
Enquire Now
FAQs
Yes, the ZN3000 is designed for IS2 enclosures and ships with a pre-assembled mounting kit and 6 Flanges option. This setup simplifies installation, minimizes field modification, and ensures a secure, vibration-resistant mounting suitable for high-demand automation environments.
The product net dimensions are 105 mm wide, 63 mm high, and 320 mm deep, with a reference height of 1400–1600 mm and reference width of 600–1000 mm. Net weight is 0.941 kg, with package weight around 1.035 kg. Plan for a compact footprint and compatible clearance within IS2 assemblies.
The ZN3000 carries CE conformity certification and RoHS information with RoHS date 20250108, plus a REACH declaration confirming no substances above 0.1% mass. WEEE categorization places it outside WEEE scope. These credentials support regulatory audits and global supply chain compliance.
The pre-assembled mounting kit reduces assembly steps and field wiring time, minimizing risk of misalignment and simplifying cabling. This translates to shorter commissioning windows, lower labor costs, and faster time-to-production, particularly valuable for multi-line deployments and refurbishments in IS2 enclosure environments.
Key documents include the IS2 Enclosures Technical Catalogue 2024, installation reference 1STM604121R0006, and data sheets. A CE declaration of conformity and REACH/RoHS declarations are provided, along with ETIM EC000721 and eClass V11.1 classifications to support procurement, installation planning, and ongoing maintenance.
