ABB ZN4002 Other/Miscellaneous - CE Declaration of Conformity
Part Number: ZN4002
Quick Summary
ABB ZN4002 is a control and automation board designed for IS2 enclosure systems in automation. Engineers often face retrofit compatibility, mounting precision, and space planning challenges when configuring panels in demanding environments. This model pairs a pre‑assembled mounting kit with versatile flange options to streamline installation and improve alignment, reducing field errors. It carries CE conformity, RoHS compliance, and a REACH declaration, supporting regulatory requirements for European installations and supplier traceability. With ETIM classification and IS2 enclosure compatibility, procurement and integration become more predictable across projects. By combining robust pickled steel construction with modular mounting, ABB ZN4002 delivers reliable long-term performance, simpler maintenance, and scalable capacity for growing automation needs. The result is faster project delivery and lower lifecycle costs for OEMs and end users.
Product Information
Extended Description

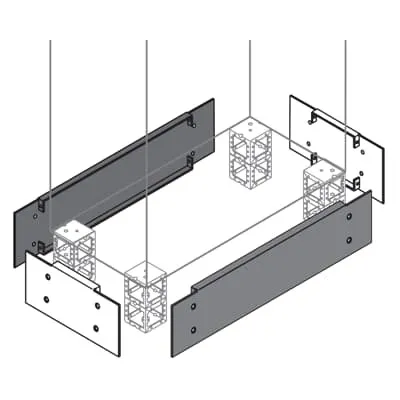

ZN4002 ABB: N.2 plinth flanges 200x400mm HXW
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Blind flanges front/back/side H=200 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
215 mm
Product Net Height
400 mm
Product Net Depth / Length
430 mm
Product Net Weight
2.1910 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.411 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature → Business Impact → Application: Kit | Pre assembled mounting significantly shortens install time and reduces field misalignment, enabling faster commissioning and fewer service calls on IS2 automation enclosures. This supports high-mix, low-volume production lines where downtime costs matter and engineers need dependable plug‑and‑play integration. Feature → Business Impact → Application: 6 Flanges with blind front/back/side options provide flexible, secure sealing and alignment across diverse enclosure configurations, improving panel rigidity and simplifying retrofits in aging automation plants. Feature → Business Impact → Application: Pickled steel sheet delivers robust mechanical strength and corrosion resistance for harsh industrial environments, extending service life in temperature-variant facilities and providing predictable maintenance intervals. Feature → Business Impact → Application: Compact net dimensions (215 mm width, 400 mm height, 430 mm depth) with a 2.191 kg weight support compact rack layouts, saving panel space while preserving access for cabling and diagnostics. Feature → Business Impact → Application: Regulatory compliance (CE, RoHS, REACH) reduces audit risk and accelerates acceptance by customers with strict procurement standards, enabling easier qualification for ISO and safety programs. Feature → Business Impact → Application: Reference depth/height options (400/500/600/800/1000 mm and 1400/1600/1800/2000/2200 mm) enable scalable building blocks for modular automation systems, enabling future expansions without replacing the enclosure base.
Get a Quick Quote for a ABB ZN4002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN4002?
Enquire Now
FAQs
ABB ZN4002 ships with a mounting kit and six flange options, enabling front, back, or side mounting within IS2 automation enclosures. The pre‑assembled configuration reduces现场 wiring errors and installation time. For best results, align flanges with enclosure mounting points, verify reference depths, and plan for future expansions using the available depth/height options.
Yes. The product carries RoHS information with a dated RoHS certificate and a REACH declaration indicating no substances above 0.1 mass percentage. This ensures regulatory compliance for European projects and supports sustainable procurement practices, including waste and lifecycle considerations.
The product has a net width of 215 mm, net height of 400 mm, and net depth of 430 mm, with a net weight of 2.1910 kg. Package level weight is listed at 2.411 kg. These dimensions suit compact panel layouts while preserving cabling access and serviceability.
ABB ZN4002 carries a CE Declaration of Conformity and is documented under ETIM 8 EC000721 for base/base element classification (enclosure/cabinet). It also references eClass V11.1 27182003 and a 2024 IS2 Enclosures Technical Catalogue, aligning with standard industrial procurement and compliance workflows.
The solution includes a kit with six flanges and options for blind flanges front/back/side H=200 mm, plus pre‑assembled mounting to speed installation. Compatible with IS2 enclosures and designed for scalable configurations with reference depths/heights from 400–1000 mm and 1400–2200 mm, enabling modular automation layouts without enclosure replacement.
