ABB ZN5000 Control and Automation Board - CE Certified
Part Number: ZN5000
Quick Summary
ABB ZN5000 control and automation board enables compact IS2 enclosure integration for automation projects. Engineers struggle with mounting versatility, space constraints, and wiring complexity in small cabinets. It delivers CE conformity, RoHS compliance and ETIM classification to support compliant sourcing and procurement. Designed for IS2 enclosures and pre-assembled mounting kits, it reduces on-site labor and risk while improving installation reliability. By aligning with standard dimensions and modular height options (1400–2200 mm) it fits multiple panel layouts, improving future scalability. This combination translates to shorter project timelines, lower lifecycle costs, and more predictable maintenance for industrial automation deployments.
Product Information
Extended Description

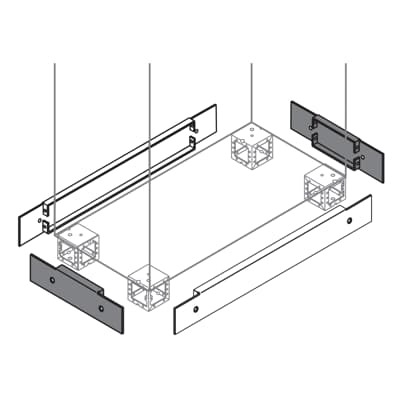

ZN5000 ABB: N.2 plinth flanges 100x500mm HxW
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Blind flanges front/back/side H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
105 mm
Product Net Height
63 mm
Product Net Depth / Length
520 mm
Product Net Weight
1.577 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.735 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Six flanges provide a versatile mounting interface for this enclosure accessory. This modular approach reduces retrofit time and enables secure sealing in IS2 enclosures, making it ideal for upgrading existing automation cabinets. Pickled steel sheet delivers rugged durability, resisting corrosion in typical factory environments. This material choice lowers maintenance costs and extends service life for control panels exposed to dust, humidity, and thermal cycling. Mounting Type is Kit | Pre assembled, so installers can drop in the assembly with minimal field wiring. That reduces commissioning time and error risk, especially on tight shop floors. Product Net Width 105 mm, Height 63 mm, Net Depth 520 mm; Reference Depth 500 mm; Height options 1400–2200 mm; Reference Width 400–1200 mm. These dimensions ensure compatibility with ABB's IS2 enclosures and a wide range of panel configurations. RoHS information from 2025-01-08 and REACH declaration verify regulatory compliance; WEEE category notes the product is not in WEEE scope. Suitable for IS2 Enclosures for Automation and class EC000721; ETIM 8/9; standardization and consistency in procurement; packaging is 1 piece.
Get a Quick Quote for a ABB ZN5000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN5000?
Enquire Now
FAQs
The ZN5000 is supplied as a pre-assembled kit with six flanges and blind end caps, designed to drop into IS2 enclosures. Follow the installation guide 1STM604121R0006 for sequencing, torque specs, and wiring paths. The kit minimizes field assembly and ensures precise alignment, reducing commissioning time and risk.
Net dimensions are 105 mm width, 63 mm height, and 520 mm depth, with a reference depth of 500 mm. Height options range from 1400 to 2200 mm and width options from 400 to 1200 mm to match standard IS2 enclosure footprints, ensuring a consistent fit across ABB’s automation cabinets.
Yes. The product carries CE conformity and RoHS information dated 20250108, along with a REACH declaration stating no substances above 0.1 mass%. This combination supports regulatory compliance across global automation deployments and procurement workflows.
Absolutely. The pre-assembled mounting kit and flexible flange arrangement simplify retrofits and new builds, cutting on-site labor and commissioning time. The durable pickled steel construction reduces maintenance, yielding lower lifecycle costs and higher panel reliability in production environments.
Documentation includes the CE Declaration of Conformity and REACH information, ETIM classification EC000721 for base components, and the IS2 Enclosures Technical Catalogue 2024. Installation guidance is provided by the referenced manual set, ensuring consistent assembly and future serviceability.
