ABB ZN5001 Control and Automation Board - RoHS
Part Number: ZN5001
Quick Summary
ABB ZN5001 control and automation board enables modular automation in IS2 enclosure systems. Engineers often contend with space constraints and lengthy wiring during panel upgrades. This solution carries CE conformity with a Declaration of Conformity IS2, RoHS compliance dated 20250108, and ETIM EC000721 standardization, delivering traceable, regulator-ready data for procurement. The preassembled mounting kit includes six flanges for structural reinforcement, reducing field labor and revision cycles. Its compact footprint supports scalable panel layouts while preserving enclosure integrity and predictable procurement for growing automation projects.
Product Information
Extended Description

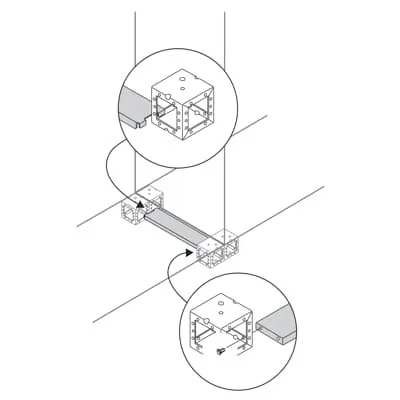

ZN5001 ABB: N.2 support flanges for cables W=500
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Flange in depth for structure reinforcement
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
85 mm
Product Net Height
40 mm
Product Net Depth / Length
300 mm
Product Net Weight
0.8690 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.956 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: Preassembled mounting kit with six flanges provides a rigid base for cables and components. Business impact: Faster installation, reduced field labor, lower total project cost. Application: IS2 Enclosures for Automation, Control and Automation Board families. Feature: Pickled steel sheet construction offers robust durability in workshop and field environments. Business impact: Improved component longevity and easier surface finishing, lowering maintenance cycles. Application: Industrial control panels with high vibration and temperature swings. Feature: Dimensions and weight—net width 85 mm, height 40 mm, depth 300 mm, weight 0.869 kg—yield a compact, predictable footprint. Business impact: Optimized enclosure planning and easier stocking, reducing misfits in procurement. Application: Small-to-midsize automation racks within IS2 systems. Feature: Compatibility and standards—Suitable for IS2 Enclosures for Automation; ETIM EC000721 base element; CE Declaration of Conformity IS2. Business impact: Streamlined data exchange and regulatory alignment for batch production. Application: Global manufacturing lines requiring standardized data models. Feature: Regulatory and installation support—RoHS, REACH declarations, and installation instruction 1STM604121R0006 included. Business impact: Reduced non-compliance risk and faster commissioning. Application: Service teams performing routine updates and upgrades.
Get a Quick Quote for a ABB ZN5001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN5001?
Enquire Now
FAQs
ZN5001 is designed for IS2 Enclosures for Automation and functions as a preassembled mounting kit within the Control and Automation Board family. It uses six flanges for secure base/back mounting and aligns with ETIM EC000721 standards, ensuring reliable integration with ABB automation panels and consistent data across procurement systems.
ZN5001 reduces on-site labor through a ready-to-install mounting kit with preassembled flange hardware, supporting faster commissioning and fewer field wiring errors. Its compact footprint and standardized reference dimensions simplify panel planning, inventory management, and ongoing maintenance in IS2 enclosure environments.
Yes. ZN5001 carries a CE Declaration of Conformity IS2 and RoHS compliance dated 20250108, with REACH information indicating no substances above 0.1 mass percent. The design also references ETIM EC000721 for base/base element classification, ensuring regulatory alignment across European markets and standardized data handling.
The ZN5001 features a net width of 85 mm, net height of 40 mm, and net depth of 300 mm, with a reference depth of 500 mm and reference height options (1400–2200 mm). It weighs 0.869 kg and uses pickled steel sheet, ensuring robust service in automation panels while supporting scalable IS2 enclosure configurations.
Yes, mounting is provided as a kit with six flanges for base/front/back support, offered in a preassembled configuration. Benefits include faster setup, reinforced enclosure integrity, easier compatibility checks with IS2 Enclosures for Automation, and streamlined supplier data in accordance with CE and RoHS requirements. Installation instructions are documented under 1STM604121R0006.
