ABB ZN5002 Control and Automation Board - IS2 Enclosures
Part Number: ZN5002
Quick Summary
ABB ZN5002 is a control and automation board designed for IS2 enclosures used in automation cabinets and control panels. In practice, engineers face time-consuming installation and alignment challenges inside tight spaces. This solution carries Declaration of Conformity CE, RoHS compliance, and REACH information, with RoHS and REACH dates 20250108, and ETIM classifications EC000721 for base components, improving interoperability. With kit-based mounting, a pickled steel frame, and blind flange options up to 200 mm, it enables faster installation, reduces field wiring errors, and supports scalable cabinet designs. By aligning with IS2 Enclosures Technical Catalogue 2024 and ETIM standards, it delivers predictable performance and easier procurement across industrial automation projects.
Product Information
Extended Description

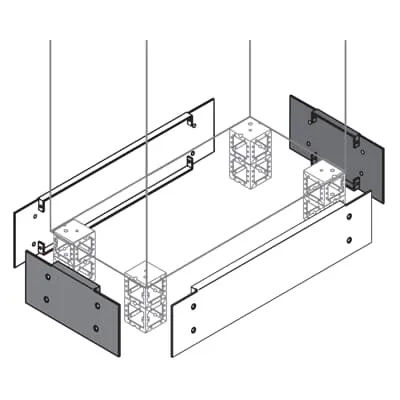

ZN5002 ABB: N.2 plinth flanges 200x500mm HXW
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Blind flanges front/back/side H=200 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
215 mm
Product Net Height
200 mm
Product Net Depth / Length
530 mm
Product Net Weight
2.7450 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.019 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: Six flanges and blind flanges H=200 mm → Business Impact: Flexible mounting, sealed joints, reduced field adjustments and faster commissioning → Application: IS2 Enclosures for Automation. Six flanges plus blind flanges front/back/side H=200 mm enable configurable sealing and rapid alignment, reducing installation time and field rework in crowded control cabinets. Feature: Kit | Pre assembled mounting → Business Impact: Shortened on-site assembly, consistent fit, reduced risk of mounting errors → Application: Factory integration and retrofit projects where time-to-commission matters. This option supports both turnkey installations and on-site customization, smoothing project handoffs and improving first-pass acceptance. Feature: Material — Pickled steel sheet → Business Impact: Robust mechanical strength and corrosion resistance, extended lifecycle in harsh environments → Application: Automation cabinets in manufacturing and process plants. The durable body withstands vibration, temperature swings, and exposure to industrial contaminants. Feature: Dimensions — Net width 215 mm, Net height 200 mm, Net depth 530 mm; Reference width 400–1200 mm; Reference height 1400–2000 mm; Reference depth 500 mm → Business Impact: Clear footprint guidance, reduced design risk, scalable enclosure planning → Application: New builds and retrofits requiring predictable fit and modular expansion. Feature: Compliance and standards — RoHS 20250108; REACH 20250108; CE Declaration; WEEE category: Product Not in WEEE Scope; ETIM EC000721 base/base element → Business Impact: Regulatory assurance, simplified audits, and cross-compatibility with ETIM-based procurement → Application: Global automation deployments in regulated industries. Feature: Documentation and packaging — Instructions 1STM604121R0006; Package Level 1 Unit: 1 piece; Package Gross Weight: 3.019 kg → Business Impact: Clear install guidance, predictable logistics, and training readiness → Application: Standardized rollout across multi-site projects.
