ABB ZN6000 Control and Automation Board - CE Certified
Part Number: ZN6000
Quick Summary
ABB ZN6000 Control and Automation Board provides robust control mounting for IS2 automation enclosures. Engineers frequently grapple with mismatched mounting kits that complicate installation and limit upgrade flexibility. This kit delivers CE conformity, RoHS compliance dated 2025-01-08, and REACH declarations, ensuring regulatory alignment and safer materials for European and global use. Designed for seamless integration with IS2 enclosures, it reduces assembly time and supports scalable automation projects. The solution also aligns with industry standards, improving maintenance accessibility and total cost of ownership over the life of the panel. With pre assembled mounting and durable steel construction, it simplifies audits and changeovers across production lines.
Product Information
Extended Description

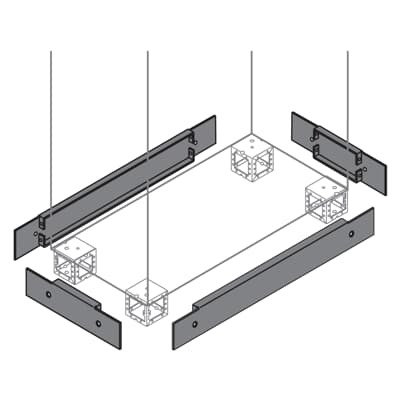

ZN6000 ABB: N.2 plinth flanges 100x600mm HxW
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Blind flanges front/back/side H=100 mm
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
105 mm
Product Net Height
63 mm
Product Net Depth / Length
620 mm
Product Net Weight
1.894 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.084 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
The ZN6000 is a pre assembled mounting kit that provides base front/back mounting surfaces with six flanges, delivering ready-to-install hardware that simplifies enclosure integration. This feature translates into tangible business impact by dramatically reducing on-site installation time and minimizing misalignment during panel builds, enabling faster project completion on high-volume lines. It is particularly well suited for IS2 Enclosures for Automation, providing a reliable, repeatable fit across multiple control and automation board configurations. The kit uses pickled steel sheet, offering robust structural support while resisting corrosion in typical industrial environments, which lowers maintenance costs and extends cabinet life. With 105 mm net width, 63 mm net height, and 620 mm net depth, plus reference depths of 300–1000 mm and reference heights of 1400–2200 mm, it delivers precise compatibility for a range of standard IS2 cabinet sizes. Blind flanges front/back/side H=100 mm provide installation flexibility and future modification capability without costly rework. RoHS and REACH compliance, along with an IS2 Environmental Catalogue basis, help satisfy regulatory audits and customer requirements, while the 1 piece packaging and modest weight streamline logistics and field deployment. In practice, installers experience fewer field modifications, more predictable mounting behavior, and a lower total cost of ownership across lifecycle maintenance. Industry-specific contexts include automation panel shops, machine builders, and process industries where consistent mechanical interfaces underpin reliability and uptime.
Get a Quick Quote for a ABB ZN6000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN6000?
Enquire Now
FAQs
The ZN6000 kit is designed for quick, secure mounting in IS2 enclosures. Start by aligning the front/back mounting surfaces to the enclosure faces, attach the six flanges to the pre assembled kit, then secure the kit to the enclosure chassis. Use the provided blind flanges to seal any unused faces (front, back or sides) to maintain environmental integrity. Follow the IS2 installation instructions (1STM604121R0006) for best results and confirm front/back alignment before wiring.
Key metrics include a Product Net Width of 105 mm, Net Height of 63 mm, and Net Depth of 620 mm. The reference depths span 300, 400, 500, 600, 800, and 1000 mm with reference heights at 1400, 1600, 1800, 2000, and 2200 mm. The Product Net Weight is 1.894 kg, with a packaged gross weight of 2.084 kg, making it manageable for standard panel builds and on-site handling.
Yes. RoHS information is provided with a RoHS date of 20250108, and a REACH declaration is included with REACH information confirming no substances above 0.1 mass percentage. This compliance supports regulatory requirements in European markets and aligns with ongoing supplier sustainability programs, reducing compliance risk in automation projects.
ZN6000 is designed for IS2 Enclosures for Automation and is compatible with ABB control and automation boards (Product Type 5B5B30B330). It is ideal for automation cabinets in manufacturing lines, machine builders, and process industries where a durable, pre assembled mounting kit accelerates panel assembly and ensures consistent fit and access for maintenance.
The pre assembled mounting kit reduces installation time, minimizes field modifications, and enhances reliability by providing a precise, repeatable interface with IS2 enclosures. Over time these factors translate to faster commissioning, lower labor costs, easier audits, and improved uptime, delivering a measurable reduction in total cost of ownership for automation projects.
