ABB ZN8001 Control and Automation Board - IS2/CE
Part Number: ZN8001
Quick Summary
ABB ZN8001 Control and Automation Board enables compact control solutions for IS2 enclosure systems. Engineers often struggle to fit robust automation hardware into space-constrained panels while maintaining clean, accessible wiring. This device carries CE conformity, RoHS compliance, and REACH declarations, aligning with strict regulatory expectations. Beyond compliance, the pre-assembled mounting kit and flange options streamline installation, reducing downtime and total cost of ownership. In practice, integrators appreciate the compact footprint—85 mm net width and 600 mm net depth—paired with IS2 enclosure compatibility and straightforward cabling support for scalable control system integration.
Product Information
Extended Description

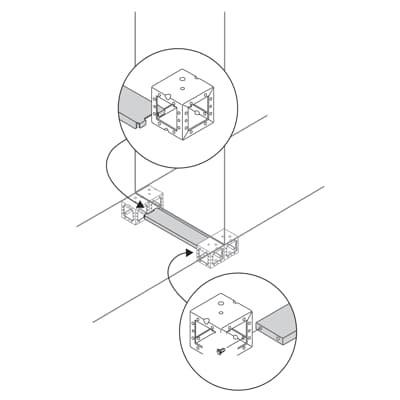

ZN8001 ABB: N.2 support flanges for cables W=800
Sub-Function 3
Base front/back
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
6. Flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Flange in depth for structure reinforcement
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
85 mm
Product Net Height
40 mm
Product Net Depth / Length
600 mm
Product Net Weight
1.6810 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.85 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Standards
See code for structure
Feature: IS2 enclosure compatibility with a pre-assembled mounting kit → Business Impact: accelerates panel assembly and reduces field wiring errors → Application: machine builders deploying modular control panels in IS2 enclosures. Feature: Compact footprint 85 mm width x 600 mm depth with 40 mm height → Business Impact: enables denser control architectures and easier retrofits → Application: space-constrained automation cabinets in packaging and process lines. Feature: N.2 cable support flanges at W=800 and option for flange depth reinforcement → Business Impact: improves cable management and structural stability → Application: robust wiring channels for high-vibration environments. Feature: Pickled steel sheet construction and flanges → Business Impact: enhances mechanical durability while preserving panel integrity → Application: long-life control cabinets subject to varying temperatures and mechanical loads. Feature: RoHS and REACH compliance with CE declaration and WEEE considerations → Business Impact: ensures regulatory compliance and smoother procurement → Application: regulated manufacturing environments with audit-ready documentation. Feature: Weight 1.681 kg and modular product classification (ETIM/EC codes) → Business Impact: simpler handling, installation planning, and standardized sourcing → Application: industrial integrators optimizing logistics and spare parts management.
Get a Quick Quote for a ABB ZN8001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZN8001?
Enquire Now
FAQs
ZN8001 is specifically designed to fit IS2 enclosure standards, offering a pre-assembled mounting kit and compatible flange hardware. Its dimensions and mounting options reduce panel integration time, minimize misalignment risks, and simplify wiring when deploying automation boards in IS2 systems.
Key specs include a net width of 85 mm, net height of 40 mm, net depth of 600 mm, and a reference depth of 800 mm. The component weighs 1.681 kg and uses pickled steel sheet. It features N.2 cable support flanges at W=800 and a pre-assembled mounting kit for quick installation.
Yes. The product carries a CE Declaration of Conformity (IS2) and RoHS information with a RoHS date of 20250108. It also provides a REACH declaration and date, ensuring regulatory alignment for European and global supply chains and supporting audit-ready compliance documentation.
The combination of a pre-assembled mounting kit, integrated cable flanges, and standardized dimensions reduces assembly time and field wiring errors. For machine builders, this translates to lower labor costs, shorter project cycles, and greater predictability when scaling control architectures across multiple panels.
Ideal for IS2 automation enclosures in machine control cabinets and process automation lines, ZN8001 delivers compact footprint and robust mechanicals with compliant material standards. ROI improves through faster installation, reduced maintenance due to durable construction, and streamlined compliance documentation aiding procurement and audits.
