ABB ZU2100 Plinth Kit for IS2 Enclosures - CE Declaration of Conformity
Part Number: ZU2100
Quick Summary

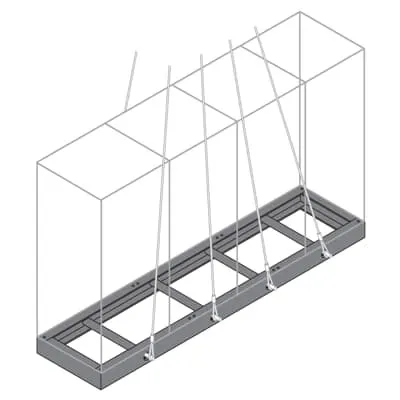

ABB ZU2100 is a plinth kit for IS2 automation enclosures used in switchboard and control-panel installations. It stabilizes bases and improves cable management, reducing rework in tight spaces. CE Declaration of Conformity, RoHS compliance, and REACH information ensure regulatory alignment for panel builders and end-users. With a pre-assembled mounting option and System pro E control compatibility, the ZU2100 speeds commissioning and lowers on-site labor while delivering durable, long-term performance. Made from pickled steel sheet, it provides reliable mounting across varied depths and widths in IS2 enclosures. Engineers benefit from repeatable fits, straightforward maintenance access, and scalable configurations for growing automation architectures.
Product Information
Extended Description
ZU2100 ABB: Entire Strip H=200 For Switchboards Battery - Unit of measure =M
Sub-Function 3
Base front/back
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
7. Plinth
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B330
Material
Pickled steel sheet
Options Provided
Single plinth (unit of measure for the order: METRE)
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
800 mm
Product Net Height
200 mm
Product Net Depth / Length
1000 mm
Product Net Weight
13.9 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
13.983 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000721 - Base/base element (enclosure/cabinet)
ETIM 9
EC000721 - Base/base element (enclosure/cabinet)
eClass
V11.1 : 27182003
Object Classification Code
U
Standards
See code for structure
Feature: Base front/back integration delivers a rigid, level foundation for IS2 enclosures, reducing vibration and misalignment. Business Impact: This stability improves sensor accuracy and extends component life in vibration-prone industrial settings. Application: Ideal for switchboards and battery unit stands in automated production lines. Feature: Compatible with Automation and Control Enclosures (System pro E control) and IS2, ensuring seamless interoperability. Business Impact: Reduces integration risk and accelerates project timelines. Application: Suitable for new builds and retrofits in control rooms. Feature: Mounting Type Kit | Pre assembled enables plug-and-play installation. Business Impact: Cuts on-site wiring and alignment time, boosting productivity. Application: Fast retrofits and modular expansions. Feature: Material is pickled steel sheet for durability. Business Impact: Delivers corrosion resistance and predictable performance in harsh environments. Application: Factory floors and electrical cabinets. Feature: Single plinth with configurable depth options (Reference Depth/Length up to 1000 mm). Business Impact: Supports diverse layout needs while minimizing inventory. Application: IS2 enclosure projects with variable mounting footprints.
Get a Quick Quote for a ABB ZU2100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ZU2100?
Enquire Now
FAQs
The ZU2100 is designed as a plinth kit for IS2 automation enclosures and is compatible with System pro E control systems. It uses a pre-assembled mounting approach to align with standard IS2 mounting interfaces, ensuring fast, predictable installation with minimal field modification.
Key specifications include a product width of 800 mm, height of 200 mm, and depth of 1000 mm, with a net weight of 13.9 kg (13.983 kg packaged). These dimensions help determine enclosure footprint and mounting clearances in switchboard or control-panel layouts.
Yes. The ZU2100 carries a CE Declaration of Conformity, RoHS information with a 20250108 RoHS date, and REACH declaration with a 20250108 REACH date, ensuring regulatory alignment for European installations and chemical compliance.
A pre-assembled kit reduces on-site assembly time, minimizes misalignment, and speeds commissioning. It supports quick retrofits and scalable configurations for growing automation architectures while maintaining consistent mounting interfaces with IS2 enclosures.
Ideal for automation and control enclosures in switchboards and control rooms, especially where System pro E control IS2 enclosures are used. It provides stable base mounting, reliable cable routing, and durable construction suitable for harsh industrial environments.
