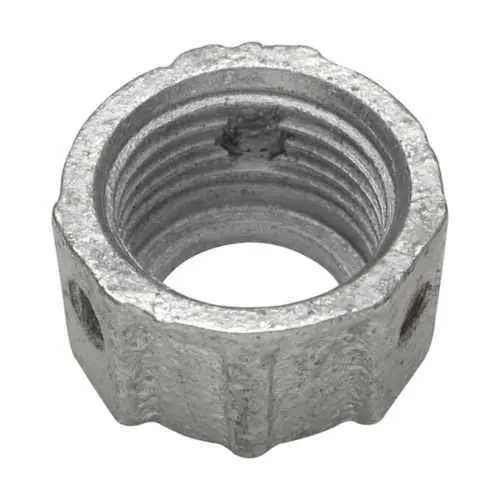

Eaton Crouse-Hinds 1031NI Throat Bushing - Rigid/IMC
Part Number: 1031NI
Quick Summary
1031NI throat bushing is a compact conduit fitting that secures rigid/IMC transitions in electrical panels, enclosures, and industrial installations. Engineers often contend with vibration, misalignment, and sealing gaps that degrade performance, drive maintenance costs, and extend project schedules. This Eaton Crouse-Hinds model aligns with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, with Canadian certification options supported by supplier documentation. Its malleable iron construction, non-insulated design, and 1/2 inch threaded connection enable fast, reliable installs that stay seated under vibration while meeting code requirements. By delivering predictable dimensions and clear specifications, it reduces field rework, supports compliant installations, and improves overall system uptime for harsh industrial environments.
Product Information
Extended Description
1031NI Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Non-insulated, Malleable iron, Threaded, 1/2"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
1031NI
Product Length/Depth
1.06 in
Product Height
0.63 in
Product Width
1.06 in
Product Weight
0.07 lb
UPC
662277003414
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Non-insulated
Thread
Threaded
Trade size
1/2"
Material
Malleable iron
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - 1031NI
Feature: Material is malleable iron, providing rugged durability under vibration and impact. Benefit: Longer service life and reduced maintenance cost in harsh industrial environments. Application: Suitable for rigid/IMC conduit transitions in control panels and enclosures. Feature: Conduit type is rigid/IMC with a threaded connection. Benefit: Secure seating and repeatable torquing, minimizing leakage paths and misalignment during panel assembly. Application: Electrical installations requiring reliable conduit termination in machinery, switchgear, and MCCs. Feature: Insulator is non-insulated. Benefit: Faster assembly and fewer parts required, reducing labor time during field terminations. Application: Standard, non-insulated throat bushings in non-hazardous locations. Feature: Trade size is 1/2 inch with precise dimensions (1.06 in length, 0.63 in height, 1.06 in width). Benefit: Predictable fit, compatibility with common IMC fittings, and quick inventory decisions for project kits. Application: 1/2 in conduit runs in panels and enclosures. Feature: Certifications include NEC/CEC compliance and Ordinary/Non-Hazardous Location classification. Benefit: Clear regulatory alignment reduces risk during audits and supports faster code approvals. Application: Industrial facilities with strict conformity requirements. Feature: Weight is 0.07 lb for a compact, lightweight installation. Benefit: Lower overall panel weight and easier handling during assembly and maintenance. Application: Space-constrained electrical cabinets and control panels.
Get a Quick Quote for a Eaton Crouse-Hinds 1031NI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 1031NI?
Enquire Now
FAQs
The 1031NI supports rigid/IMC conduit with a 1/2 inch trade size. It features a threaded connection and non-insulated design made from malleable iron, suitable for standard 1/2 inch IMC terminations in non-hazardous environments. This provides a straightforward, reliable fit for most panel and enclosure installations.
Key specs include a 1/2 inch trade size, rigid/IMC conduit compatibility, threaded connection, non-insulated insulation, malleable iron material, dimensions of 1.06 in length and width, 0.63 in height, and a weight of 0.07 lb. UPC is 662277003414. Catalog references and datasheets confirm these parameters for engineered compliance.
The 1031NI is classified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards. While suitable for non-hazardous environments, customers should verify project-specific location classifications. Canadian certification references are available, and UL listings in supplier documentation support cross-border applications when applicable.
Its threaded 1/2 inch connection and non-insulated design simplify terminations, reducing assembly steps and torque checks. The compact malleable iron body resists vibration and maintains seating under operation, cutting field rework and downtime. This translates to faster panel builds, lower labor costs, and improved system uptime in production cells.
Ensure the conduit is clean and threads are undamaged before installation to prevent cross-threading. Use proper thread sealant or torque per manufacturer guidelines to achieve a reliable seal. Confirm the 1/2 inch trade size and IMC compatibility, and verify that the installation location adheres to NEC/CEC requirements for ordinary locations.
