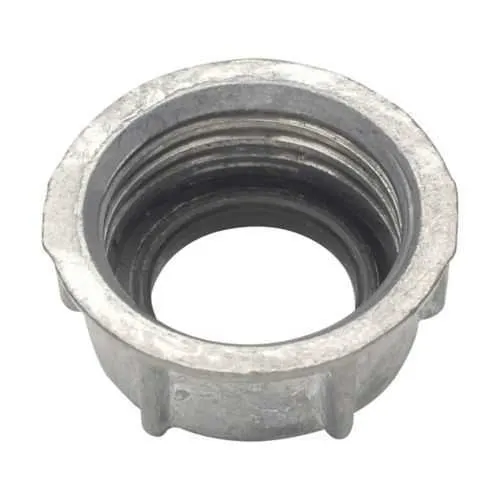

Eaton Crouse-Hinds 1036DC Throat Bushing - NEC/CEC Certified
Part Number: 1036DC
Quick Summary
1036DC throat bushing from Eaton Crouse-Hinds provides secure threaded terminations for rigid/IMC conduit in industrial electrical installations. In the field, misaligned fittings and moisture intrusion can trigger downtime; this bushing ensures proper threading and consistent grounding continuity. It meets NEC/CEC standards and carries UL certification for rigid/IMC installations, making it suitable for ordinary or non-hazardous locations. For engineers and procurement teams, this zinc die-cast solution delivers durability and cost efficiency, reducing field rework and warranty exposure. The compact, threaded design also speeds assemblies in tight spaces, while maintaining reliability across typical industrial environments.
Product Information
Extended Description
1036DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Non-insulated, Zinc die cast, Threaded, 2"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
1036DC
Product Length/Depth
3.34 in
Product Height
0.95 in
Product Width
1.72 in
Product Weight
0.1 lb
UPC
662277037693
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Non-insulated
Thread
Threaded
Trade size
2"
Material
Zinc die cast
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Eaton Specification Sheet - 1036DC
Rigid/IMC conduit compatibility ensures a secure mechanical fit, reducing movement and vibration that can loosen terminations. This translates to fewer service calls and longer service life in harsh environments, making it ideal for panel ducts and equipment enclosures in manufacturing plants. Zinc die-cast construction delivers corrosion resistance and rugged durability in damp facilities, supporting longer maintenance intervals and lower lifecycle costs in washdown or humid plants. The threaded connection simplifies field installation using standard tools and practices, reducing installation time and training needs for technicians, which is particularly valuable during retrofits. Non-insulated design lowers material costs and streamlines installs where insulation is not required, beneficial for dry indoor environments and non-insulated interfaces. The 2" trade size with compact dimensions enables installation in tight spaces, while a light 0.1 lb weight reduces handling effort and personnel exposure. With NEC/CEC compliance and UL certification, this part provides regulatory assurance, helping you pass audits and minimize risk while maintaining consistent performance across multiple sites.
Get a Quick Quote for a Eaton Crouse-Hinds 1036DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 1036DC?
Enquire Now
FAQs
To install the 1036DC throat bushing, align the threaded bushing with the 2" trade-size conduit opening and start by hand to ensure clean engagement with the IMC threads. Use a standard conduit wrench to tighten until snug, ensuring the bushing is seated against the conduit hub without overtightening. Verify the alignment and moisture seal as part of the final inspection to prevent misalignment and leaks in non-insulated terminations.
The 1036DC is specified for Ordinary/Non-Hazardous Locations under NEC/CEC standards and UL certifications. It is not intended for hazardous locations. For facilities with potential exposure to hazardous atmospheres, consult alternative fittings that carry the appropriate hazard-class certifications and ensure full regulatory compliance before installation.
The 1036DC supports NEC/CEC standards and UL certification for rigid/IMC conduit installations. It is designed for ordinary/non-hazardous locations and provides regulatory assurances suitable for industrial facilities seeking compliant, dependable conduit terminations without insulation requirements.
The 1036DC features a 2" trade size with a length of 3.34 inches, height of 0.95 inches, and width of 1.72 inches. It weighs 0.1 pounds and uses a threaded connection, with a zinc die-cast body and non-insulated design suitable for rigid/IMC conduit terminations.
Zinc die-cast construction provides robust durability and corrosion resistance, extending service life in industrial environments. The non-insulated, threaded 2" design offers straightforward installation, cost efficiency, and reliable terminations for ordinary locations. Its compact size supports tight-space applications, reducing installation time and field rework while meeting NEC/CEC and UL requirements.
