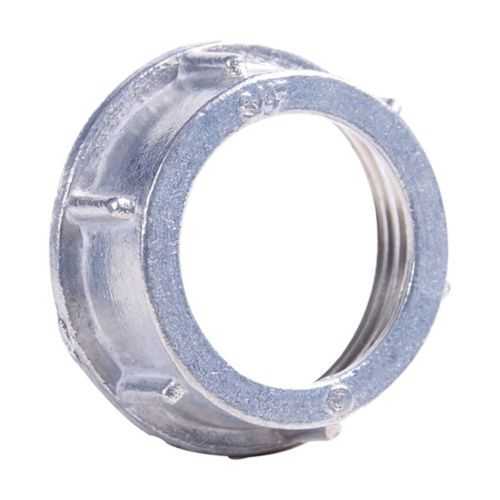

Eaton Crouse-Hinds 1038 Throat Bushing - NEC/CEC
Part Number: 1038
Quick Summary
Eaton Crouse-Hinds throat bushing provides rugged barrier protection and reliable conduit sealing for rigid/IMC installations. Engineers often wrestle with insulation wear, misalignment at threaded connections, and rising maintenance costs at enclosure entries. This part is NEC/CEC compliant and UL-certified for rigid, IMC installations in ordinary/non-hazardous locations, offering peace of mind in safety-critical environments. The combination of an insulated, threaded bushing made from malleable iron, rated to 105°C, delivers durable performance in demanding temperatures. In practice, the 3" trade size and compact 4x4x1 inch footprint simplify field installs and stock management, supporting cost-effective procurement while improving long-term reliability for panel and equipment enclosures.
Product Information
Extended Description
1038 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, 105°C, Threaded, 3"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
1038
Product Length/Depth
4 in
Product Height
1 in
Product Width
4 in
Product Weight
0.54 lb
UPC
784564110381
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threaded
Trade size
3"
Material
Malleable iron
Temperature rating
105°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Eaton Specification Sheet - 1038
Insulated, threaded throat bushing design resists moisture ingress and maintains reliable conductivity, reducing insulation failures and arcing risk in metal enclosures. This translates to lower maintenance, fewer unscheduled shutdowns, and enhanced safety for control panels in industrial environments. The 3" trade size with a compact 4x4x1 inch footprint ensures compatibility with standard rigid/IMC conduit terminations, simplifying installation and reducing the need for adapters or rework during panel upgrades. The malleable iron body provides mechanical strength and impact resistance, improving resilience in crowded electrical rooms and during shipment. Rated to 105°C, this bushing remains effective in high-temperature zones near motors and drives, supporting uptime and product longevity. UL certifications and NEC/CEC compliance address regulatory requirements, translating to faster approvals and reduced risk in cross-border projects. Overall, the product blends performance with ease of procurement and installation, delivering measurable cost and downtime reductions.
Get a Quick Quote for a Eaton Crouse-Hinds 1038
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 1038?
Enquire Now
FAQs
Install the 1038 by aligning the threaded connection with the conduit entry, tighten to manufacturer torque, and ensure the insulated body seats flush against the enclosure face. Use appropriate thread sealant if required for your panel design, verify the 3" trade size fits standard IMC conduit entries, and test for proper grounding continuity after assembly.
Catalog number 1038, trade size 3", length 4", width 4", height 1", weight 0.54 lb, material malleable iron, insulated, threaded, temperature rating 105°C, conduit type rigid/IMC, UPC 784564110381. Meets NEC/CEC standards and is UL-certified for rigid/IMC use in ordinary locations.
Yes. The 1038 is rated for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards, with UL certification for US and Canadian applications, making it suitable for typical factory automation environments and control rooms.
The 1038 carries NEC/CEC standard compliance and UL certification for Rigid-IMC applications. This ensures regulatory alignment, improves audit readiness, and reduces risk when wiring into enclosures across facilities in different regions.
Its insulated, threaded design, 3" trade size, and standardized 4x4x1 inch footprint simplify stocking and installation, cutting commissioning time and minimizing rework. The robust malleable iron body and 105°C rating also extend service life, lowering maintenance costs and boosting overall ROI.
