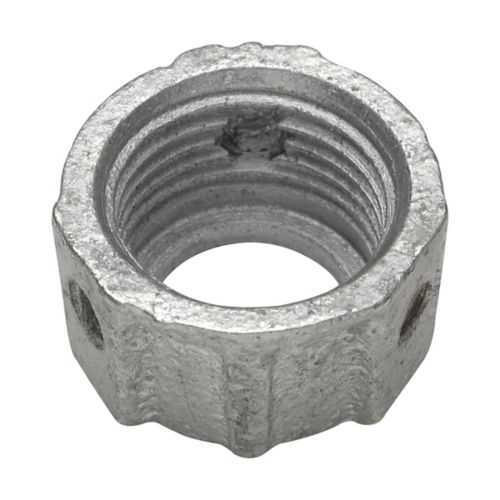

Eaton Crouse-Hinds 1040NI Throat Bushing - Rigid/IMC
Part Number: 1040NI
Quick Summary
The 1040NI throat bushing from Eaton Crouse-Hinds provides a rugged conduit entry for rigid/IMC systems in electrical enclosures. Engineers often wrestle with secure, insulated entries that resist vibration and moisture ingress, which can drive downtime and maintenance costs. This part carries NEC/CEC standards compliance and ordinary/non-hazardous area ratings, with Canadian certification documented to streamline qualification. Its malleable-iron body and threaded interface deliver durable, reliable service, while a compact footprint simplifies panel installations and reduces wiring complexity. For procurement teams, the combination of standard size and widely supported documentation translates to faster sourcing and fewer project delays.
Product Information
Extended Description
1040NI Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Non-insulated, Malleable iron, Threaded, 4"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
1040NI
Product Length/Depth
5.06 in
Product Height
1.13 in
Product Width
5.06 in
Product Weight
0.95 lb
UPC
662277003506
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Non-insulated
Thread
Threaded
Trade size
4"
Material
Malleable iron
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Insulating and Throat Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - 1040NI
Feature: Rigid/IMC compatibility and threaded connection → Business Impact: Provides a secure, vibration-resistant entry that maintains conductor integrity and minimizes maintenance downtimes in industrial panels. Application: Ideal for control panels and equipment enclosures using rigid or IMC conduits, ensuring a reliable metal-to-conduit interface. Long-tail keywords: throat bushing for rigid conduit, IMC conduit fittings, threaded conduit entries. Feature: Non-insulated malleable iron construction → Business Impact: Delivers robust mechanical protection with cost-efficient durability, reducing replacement cycles in standard environments. Application: Suitable for non-insulated requirements in ordinary/non-hazardous locations. Long-tail keywords: malleable iron throat bushing, non-insulated conduit fittings, durable conduit hardware. Feature: 4 inch trade size with precise dimensions → Business Impact: Fits common 4" conduit entries, enabling quick, predictable installations and compatible enclosure designs. Application: Panels, junction boxes, and enclosures with 4" conduit crossings. Long-tail keywords: 4 inch throat bushing, 4" trade size conduit entry, panel fitting. Feature: NEC/CEC compliance and area ratings → Business Impact: Reduces compliance risk and procurement complexity by aligning with widely used standards and non-hazardous location classifications. Application: Projects requiring NEC/CEC conformity in ordinary locations. Long-tail keywords: NEC/CEC conduit fittings, ordinary location rating, code-compliant bushings. Feature: Documentation and certification support → Business Impact: Accelerates spec approval and commissioning with readily available datasheets and Canadian certifications. Application: Engineering specs, procurement briefs, and QA reviews. Long-tail keywords: specification sheet, Canadian certification, UL documentation.
Get a Quick Quote for a Eaton Crouse-Hinds 1040NI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 1040NI?
Enquire Now
FAQs
To install the 1040NI, verify the catalog number and ensure your enclosure knockout matches a 4" trade size. Thread the bushing into the enclosure opening until snug, using appropriate torque for metal-to-metal connections. Confirm the conduit is properly seated and alignment is correct to prevent binding or cross-threading, then complete the installation with standard conduit fittings for a secure seal.
1040NI is designed for ordinary/non-hazardous locations and adheres to NEC/CEC conduit standards, simplifying code qualification. Its rigid/IMC compatibility and threaded design support reliable, code-compliant assemblies. For procurement and verification, reference Eaton’s datasheets and the provided NEC/CEC compliance documentation.
Yes, the 1040NI is specified for ordinary/non-hazardous locations. It is constructed from malleable iron and is non-insulated, with a threaded connection for secure, durable performance in standard industrial settings. This combination provides a robust metal-to-conduit interface suitable for a wide range of panel and enclosure installations.
The part supports a 4" trade size with overall dimensions centered on 5.06 inches in length and width, and 1.13 inches in height, with a weight of about 0.95 lb. These metrics influence enclosure cutouts, depth clearance, and mounting space. Plan for a slim but sturdy fit to ensure proper threading and seating without hindering other components.
Available documentation includes Eaton’s specification sheet, the Crouse-Hinds catalog page for insulating and throat bushings, and Canadian certification references. Access to UL-based Canadian certification pages and the product datasheet supports qualification, vendor audits, and smooth approval workflows during procurement.
