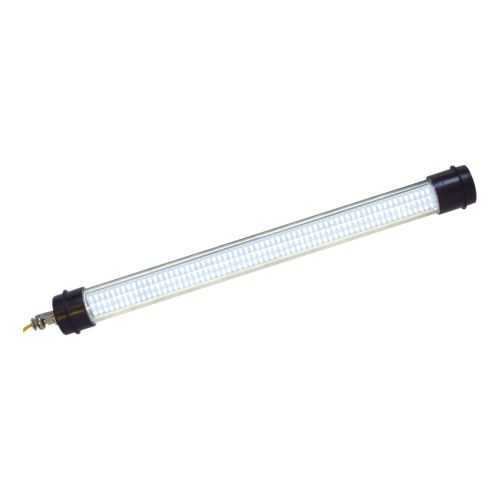

Eaton 11700100002 CEAG machine lamp - IECEx/ATEX IP68
Part Number: 11700100002
Quick Summary
Eaton CEAG machine lamp is a robust LED lighting solution designed for hazardous-location machine areas in industrial plants. Operators often struggle with unreliable illumination and strict regulatory compliance during maintenance and troubleshooting. The unit carries IECEx/ATEX certification, IP68 ingress protection, and supports Zone 1, Zone 2, Zone 21, and Zone 22 hazardous locations, giving you safe operation across diverse environments. With a 24-50V AC/DC input, 18W consumption, and 3520 lumens from a durable polycarbonate housing, it delivers bright, consistent illumination while reducing energy costs and downtime. This makes it an ideal choice for OEMs and maintenance teams needing compliant, long-lasting lighting in demanding facilities.
Product Information
Extended Description
11700100002 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG machine lamp, Polycarbonate, LED, 3520 lumens, 5m cable 3 x 1.5 mm² without plug, 2-lamp, LEDM100de36940, 24-50V AC/DC, 18W
Product Name
Eaton's Crouse-Hinds series CEAG machine lamp
Catalog Number
11700100002
Product Length/Depth
985 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
3 kg
EAN
4250959961624
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 21 Zone 2 Zone 22 Zone 1
Ingress protection (IP) ratings
IP68
Lamp type
LED
Wattage
18W
Voltage rating
24-50V AC/DC
Lumens
3520
Construction material
Polycarbonate
Type
LEDM100de36940
Special features
5m cable 3 x 1.5 mm² without plug, 2-lamp
Crouse-Hinds CEAG HL and ML LED Hand Lamps catalog page
EC Type Examination Certificate - HL and ML
EC Type Examination Certificate - HL and ML
EC Type Examination Certificate - HL and ML
Operating Instructions - HL and ML LED Hand Lamps
Feature LED lamp delivering 3520 lumens at 18W; Business Impact Lower energy consumption and longer service life reduce operating costs while maintaining high visibility in critical zones; Application Hazardous-location machinery and control panels benefit from bright, dependable lighting. Feature 24-50V AC/DC input with 5m cable (3x1.5 mm²) without plug; Business Impact Flexible power sourcing and simplified field wiring lower installation time and integration risk; Application Retrofits and new builds across mixed voltage infrastructures. Feature 2-lamp design with polycarbonate construction; Business Impact Enhanced brightness and redundancy improve maintenance throughput and safety in dim or cluttered workspaces; Application Long fixtures along production lines or access corridors. Feature IP68 rating and IECEx/ATEX Zone 1/2 and Zone 21/22 compliance; Business Impact Tight regulatory alignment prevents downtime from non-compliant equipment and supports global installations; Application Offshore, chemical, mining, and heavy-industry facilities. Feature 985 mm length and 100x100 mm footprint with a 3 kg weight; Business Impact Predictable mounting and space planning simplify installation in machine enclosures or along conveyors; Application OEM integration and retrofits require precise fit and robust enclosure compatibility. Feature Polycarbonate housing and LEDM100de36940 type; Business Impact Durable, impact-resistant construction ensures reliable operation in rugged environments; Application Harsh environments where optical clarity and resilience are essential. Feature Access to official documentation (catalog pages, EC-type certificates, operating instructions); Business Impact Faster procurement and compliant commissioning with verifiable records; Application Maintenance and quality assurance across global sites.
Get a Quick Quote for a Eaton Crouse-Hinds 11700100002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 11700100002?
Enquire Now
FAQs
This CEAG LED machine lamp is IP68 rated and IECEx/ATEX certified for Zones 1, 2, 21 and 22. It operates from 24-50V AC/DC, draws 18W, and delivers 3520 lumens. The fixture length is 985 mm with a 100x100 mm footprint and weighs 3 kg, featuring a 5 m cable (3×1.5 mm²) without a plug, which simplifies wiring and mounting in confined or hazardous spaces.
Plan for a 24-50V AC/DC supply, 18W power draw, and up to 3520 lumens of output. The unit uses a 5 m 3×1.5 mm² cable without plug, enabling flexible installation alongside existing power rails or transformers in hazardous areas.
Yes. The lamp is certified under IECEx/ATEX for Zone 1, Zone 2, Zone 21, and Zone 22, and it carries IP68 ingress protection, making it appropriate for a wide range of hazardous-location applications from industrial plants to offshore facilities.
The 2-lamp arrangement provides higher brightness and redundancy, reducing blind spots and risk of partial failure. The 5 m cable aids reach and eliminates the need for additional wiring runs, speeding installation and enabling easier servicing without frequent panel opening in hazardous zones.
Official documentation includes the Crouse-Hinds HL/ML LED Hand Lamps catalog page, EC Type Examination Certificates, and installation instructions. Accessing these PDFs supports compliant commissioning, traceability, and audit readiness for hazardous-location lighting projects.
