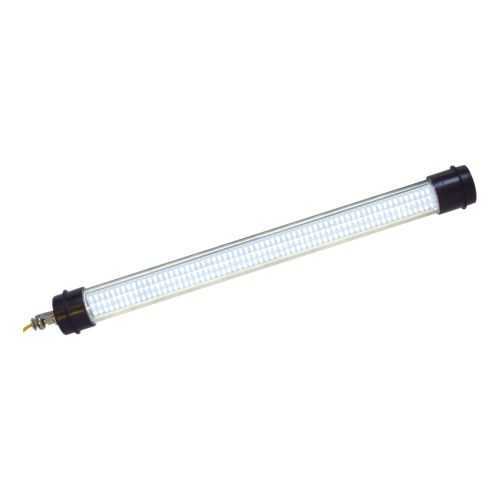

Eaton 11700100007 LED Machine Lamp - IP68 Zone 1/2/21/22
Part Number: 11700100007
Quick Summary
Eaton's Crouse-Hinds CEAG machine lamp illuminates hazardous locations, providing robust LED lighting for industrial machinery. Operators often face tight spaces, frequent maintenance, and regulatory pressure that disrupt production; this lamp is designed to simplify installation and reliability in demanding environments. The unit carries IECEx/ATEX certification for Zone 1 and Zone 21 (with extensions to Zone 2 and Zone 22), plus IP68 ingress protection, ensuring safe operation under dust, moisture, and washdown. With a 24–50 V AC/DC supply and 36 W LED engine, it delivers high brightness and long life while reducing energy use. This translates to lower maintenance costs and improved uptime across automation and process lines.
Product Information
Extended Description
11700100007 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG machine lamp, Polycarbonate, LED, 7400 lumens, 5m cable 3 x 1.5 mm² without plug, 2-lamp, LEDM100de721850, 24-50V AC/DC, 36W
Product Name
Eaton's Crouse-Hinds series CEAG machine lamp
Catalog Number
11700100007
Product Length/Depth
1895 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
4.5 kg
EAN
4250959961655
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 2 Zone 21 Zone 22
Ingress protection (IP) ratings
IP68
Lamp type
LED
Wattage
36W
Voltage rating
24-50V AC/DC
Lumens
7400
Construction material
Polycarbonate
Type
LEDM100de721850
Special features
5m cable 3 x 1.5 mm² without plug, 2-lamp
Crouse-Hinds CEAG HL and ML LED Hand Lamps catalog page
EC Type Examination Certificate - HL and ML
EC Type Examination Certificate - HL and ML
EC Type Examination Certificate - HL and ML
Operating Instructions - HL and ML LED Hand Lamps
The CEAG LED machine lamp uses a polycarbonate housing to deliver rugged durability in harsh environments, reducing unscheduled downtime and replacement costs. The result is reliable, high-visibility illumination that supports faster fault finding and safer operation in hazardous locations. With 7400 lumens of output, the lamp enhances task accuracy for alignment, inspection, and repair work in automation panels and production lines. IP68 sealing protects against dust ingress and water immersion, enabling dependable performance in washdown zones and moisture-prone areas. The 24–50 V AC/DC input accommodates varied plant power systems, simplifying wiring and compatibility with existing controls. The 5 m cable length with 3 × 1.5 mm² conductors (without plug) enables quick, flexible installation and clean cable management. The two-lamp arrangement further improves redundancy and coverage, especially in long-span machine enclosures. End-user objections about upfront cost are offset by long service life, reduced energy consumption, and minimal maintenance interventions, delivering a favorable total cost of ownership in hazardous-location lighting.
Get a Quick Quote for a Eaton Crouse-Hinds 11700100007
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 11700100007?
Enquire Now
FAQs
To install the 11700100007, ensure the power is de-energized and confirm your plant electrical system supports 24–50 V AC/DC. The unit uses a 5 m cable with 3 × 1.5 mm² conductors and ships without a plug, simplifying integration into existing control enclosures. Its IP68 rating and two-lamp arrangement provide reliable coverage and protection against dust and immersion, while IECEx/ATEX compliance confirms suitability for Zone 1, Zone 2, Zone 21, and Zone 22 installations.
This CEAG LED machine lamp delivers 7400 lumens with a 36 W LED platform, operating across 24–50 V AC/DC. The polycarbonate construction offers impact resistance and chemical compatibility, while the IP68 rating provides robust ingress protection. The two-lamp design enhances light distribution across long machine spans, reducing shadowed areas and improving inspection accuracy in hazardous locations.
Yes. The lamp is certified under IECEx/ATEX for Zone 1 and Zone 2, and Zone 21 and Zone 22, making it suitable for dusty, damp, or potentially explosive environments. Its rugged construction, 5 m cable, and non-plug wiring simplify installation in tight spaces on heavy machinery, conveyors, and processing equipment while maintaining regulatory compliance.
The unit features IECEx/ATEX certification for hazardous locations, Zone 1/2/ Zone 21/22, and IP68 ingress protection. This combination guarantees safe operation in explosive atmospheres and moisture-prone environments, aligning with global safety requirements for industrial lighting on critical equipment and automation systems.
The LED technology delivers long life and low energy consumption compared with traditional lamps, reducing replacement intervals and energy costs. IP68 sealing minimizes ingress-related failures, while a 5 m cable and two-lamp design decrease wiring complexity and maintenance visits. Overall, operators typically experience lower total cost of ownership through improved uptime and predictable maintenance cycles.
