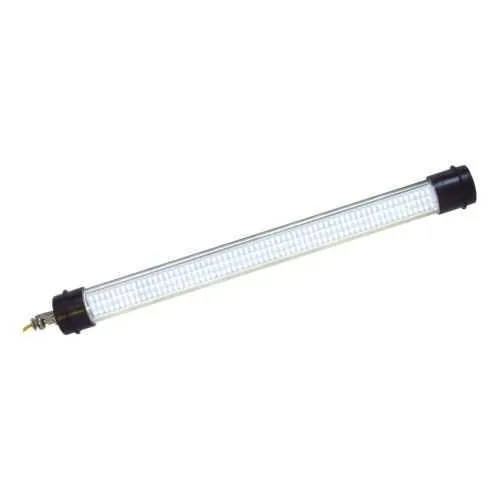

Eaton 11700100010 CEAG Machine Lamp - IP68 LED Hazardous
Part Number: 11700100010
Quick Summary
Eaton's CEAG machine lamp delivers rugged LED illumination for hazardous-location machinery and production lines. For technicians facing downtime and unreliable lighting in hazardous zones, this lamp offers a robust, long-life solution that minimizes rework and safety risk. It carries IECEx/ATEX certification, IP68 protection, and is approved for Hazardous/Classified Locations (Zones 1/2 and 21/22), ensuring regulatory compliance and safer operation across global sites. Designed for industrial lighting applications, it delivers energy-efficient LEDs, a 2-lamp configuration, and a 5 m cable, reducing maintenance costs and improving uptime even in remote installations. The polycarbonate construction resists impact and harsh environments, while providing a durable, field-friendly lighting solution for demanding environments.
Product Information
Extended Description
11700100010 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG machine lamp, Polycarbonate, LED, 4310 lumens, 5m cable 3 x 1.5 mm² without plug, 2-lamp, LEDM100de441245, 85-265 Vac, 120-370 Vdc, 22W
Product Name
Eaton's Crouse-Hinds series CEAG machine lamp
Catalog Number
11700100010
Product Length/Depth
1290 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
3.7 kg
EAN
4250959961686
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 2 Zone 21 Zone 22
Ingress protection (IP) ratings
IP68
Lamp type
LED
Wattage
22W
Voltage rating
85-265 Vac, 120-370 Vdc
Lumens
4310
Construction material
Polycarbonate
Type
LEDM100de441245
Special features
5m cable 3 x 1.5 mm² without plug, 2-lamp
Crouse-Hinds CEAG HL and ML LED Hand Lamps catalog page
EC Type Examination Certificate - HL and ML
EC Type Examination Certificate - HL and ML
EC Type Examination Certificate - HL and ML
Operating Instructions - HL and ML LED Hand Lamps
LED technology delivers 4310 lumens at 22 watts with a wide input range (85-265 Vac or 120-370 Vdc). This means lower energy costs and predictable performance across international sites, reducing total cost of ownership. The lamp is ideal for mounting on industrial machinery and conveyors in hazardous locations, where consistent illumination improves process control and operator safety. The IP68-rated polycarbonate housing provides dust, water ingress, and impact resistance, which translates to fewer service calls and longer intervals between replacements in rough environments such as chemical plants, mining operations, and offshore facilities. With a 2-lamp configuration sharing a total luminous output along long lines, it offers extended coverage, reducing blind spots and supporting safer, more efficient operations on conveyors and large machine tools. A 5 m cable length with 3 x 1.5 mm² conductors without plug enables streamlined wiring and flexible installation, cutting field termination time and effort during retrofits or new builds. IECEx/ATEX certification and Zones 1/2 and 21/22 approvals ensure regulatory compliance and safety across global sites, simplifying audits and procurement for oil & gas, chemical processing, and heavy industry installations. The durable polycarbonate housing and compatibility with CEAG HL/ML families support quick retrofits and consistent performance across all HL/ML lighting assets, improving maintenance planning and inventory optimization.
Get a Quick Quote for a Eaton Crouse-Hinds 11700100010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 11700100010?
Enquire Now
FAQs
11700100010 is a 1290 mm long, 100 mm wide by 100 mm high two-lamp luminaire weighing 3.7 kg. It uses a 5 m fixed cable with 3 x 1.5 mm² conductors and ships without a plug, enabling field wiring to standard CEAG HL/ML configurations. Ensure mounting supports Zone 1/2 and 21/22 installations and compatible brackets or fixtures for stable alignment.
Key specs include LED light source delivering 4310 lumens at 22 W, voltage rating of 85-265 Vac or 120-370 Vdc, IP68 ingress protection, 1290 mm length, and a 2-lamp arrangement. It’s designed for reliable operation in hazardous locations with durable polycarbonate housing and a 5 m cable.
This lamp is designed for Zones 1/2 and 21/22 hazardous areas and is suitable for chemical plants, mining, oil and gas facilities, and offshore installations. It provides long-life illumination for conveyors, large machinery, control panels, and other industrial assets requiring robust, continuous lighting in harsh environments.
The fixture carries IECEx/ATEX certification and is rated for Hazardous/Classified Locations, including Zones 1/2 and 21/22, with an IP68 protection class. These certifications support global deployment, supplier audits, and regulatory compliance in high-risk industrial settings.
LED life and low power consumption translate to reduced maintenance and energy costs. The 5 m cable simplifies wiring, while the rugged housing minimizes replacement cycles. For facilities with frequent lighting runs along conveyors or large tooling, this translates to lower downtime, faster commissioning, and improved asset uptime over traditional lighting solutions.
