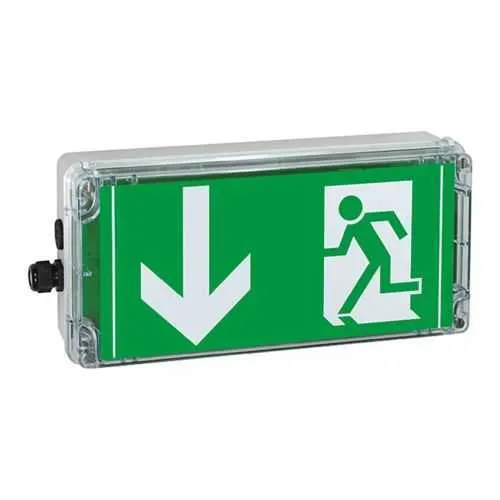

Eaton 12191000003 EXIT sign - IECEx/ATEX Zone 1
Part Number: 12191000003
Quick Summary
EXIT exit sign from Eaton Crouse-Hinds provides clear egress indication for hazardous locations. In demanding industrial environments, outages can obscure routes and slow evacuation, increasing risk and audit friction. This model is certified for IECEx/ATEX Zone 21/1 and IP66, ensuring reliable performance in hazardous and wet locations. The LED illumination minimizes power consumption and maintenance, while the gray polycarbonate housing resists impact and chemicals. Wall-mounted installation supports fast deployment along corridors and exits, helping facilities meet safety codes and streamline maintenance budgets. Together with silk-screen pictograms, this unit delivers consistent visibility and compliance across rugged plants and offshore installations.
Product Information
Extended Description
12191000003 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT exit sign, Arrowhead downward, Gray, LED, White letter color, Polycarb, Wall mt, Cover with silk-screen pictogram (arrow 6h), 1 x M20 plastic cable gland, 1 x M20 screw plug, DIN 4844, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT exit sign
Catalog Number
12191000003
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4250217413148
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
DIN 4844
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 6h)
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs operating instructions
Feature: LED lamp technology provides bright, uniform illumination with a long service life, reducing frequent lamp replacements in harsh environments. Business impact: lower energy use translates to meaningful operating cost savings and less downtime for signage. Application: ideal for continuous operation along corridors, production lines, and exit routes where visibility must be immediate and reliable. Feature: IECEx/ATEX hazardous location certification with Zone 21/1 and IP66 ingress protection provides rugged, compliant performance. Business impact: certified equipment reduces regulatory risk, enables safer handling of flammable atmospheres, and supports audits with traceable compliance. Application: suitable for chemical plants, refineries, offshore platforms, and other facilities demanding strict safety standards. Feature: Silk-screen pictogram with arrow 6h and a gray polycarbonate enclosure delivers clear guidance under challenging lighting. Business impact: improves evacuation clarity and minimizes confusion during emergencies, supporting safer worker behavior. Application: wall-mounted units near exits in industrial spaces where chemical exposure or dust demands tough housing. Feature: Universal voltage range 110-277 Vac and 110-250 Vdc with 50-60 Hz support ensures versatile compatibility. Business impact: simplifies procurement across multi-site operations and accelerates commissioning by accommodating existing power systems. Application: retrofit projects and new builds requiring resilient power supply for LED exit signs. Feature: Compact, durable dimensions—380.5 mm length, 175 mm height, 76 mm width—coupled with 2 kg weight for easy handling. Business impact: reduces installation time, minimizes field adjustments, and provides a robust sign that withstands industrial wear. Application: wall-mounted signage in harsh environments including warehouses, plants, and offshore facilities.
Get a Quick Quote for a Eaton Crouse-Hinds 12191000003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191000003?
Enquire Now
FAQs
The 12191000003 is designed for wall mounting per DIN 4844 standards and accommodates standard 1 x M20 plastic cable glands and 1 x M20 plug, simplifying retrofit and new-build installs. Its 380.5 mm length, 175 mm height, and 76 mm width align with typical exit-sign footprints, while the polycarbonate housing provides robust support against impact and exposure in harsh environments.
This sign uses LED illumination for high efficiency and long life, with a voltage rating of 110-277 Vac and 110-250 Vdc, and a frequency range of 50-60 Hz. IP66 ingress protection ensures dust and water resistance, while IECEx/ATEX Zone 21 Zone 1 certification confirms suitability for hazardous locations. It is suitable for continuous operation with minimal maintenance.
Ideal for chemical plants, oil refineries, offshore platforms, and other facilities handling hazardous atmospheres, where Zone 21/1 certification and IP66 protection are required. Its wall-mounted design suits long corridors, plant floors, and emergency egress routes, providing clear, durable signaling even in dusty, wet, or explosive environments.
The sign carries IECEx/ATEX certification for hazardous locations (Zone 21/1) and an IP66 rating, indicating robust protection against dust and water ingress. These certifications reduce regulatory risk, support safety audits, and enable safe operation in demanding environments such as chemical plants and offshore facilities.
LED technology offers extended life and lower energy consumption, which reduces replacement cycles and power costs. The rugged polycarbonate housing minimizes impact damage, while the IP66 and IECEx/ATEX certifications lower compliance risk and downtime. Across multi-site deployments, universal voltage compatibility also streamlines procurement and commissioning, accelerating time-to-value.
