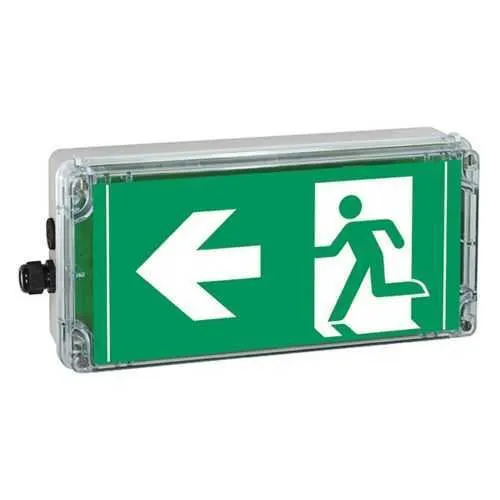

Eaton Crouse-Hinds 12191000022 EXIT Sign - IECEx Zone 1
Part Number: 12191000022
Quick Summary
Eaton Crouse-Hinds EXIT Sign delivers reliable emergency illumination for hazardous locations in industrial facilities. When evacuation signage must endure harsh environments and strict regulatory demands, visibility and reliability matter most. This model carries IECEx/ATEX certification for Zone 1 and Zone 21, IP66 protection, and ISO 7010 compliant pictograms, ensuring safe, compliant signaling in challenging environments. With LED efficiency and a rugged polycarbonate housing, it reduces maintenance costs while delivering consistent illumination over time. The wall-mount design simplifies installation, and the included cable glands support robust field wiring. Ideal for chemical plants, refineries, and offshore facilities, it enables fast deployment and clear exit communication across operations.
Product Information
Extended Description
12191000022 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT exit sign, Arrowhead left, Gray, LED, White letter color, Polycarb, Wall mount, Cover with silk-screen pictogram (arrow 9h), 1 x M20 plastic cable glands, 1 x M20 screw plug, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT exit sign
Catalog Number
12191000022
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4250217484773
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 9h)
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs operating instructions
Feature LED lamp → Business Impact Lower energy consumption and longer lifecycle reduce operating costs; Application Suitable for continuous-duty signage in hazardous locations. The LED source delivers bright, uniform illumination and minimizes routine maintenance. Feature IP66 enclosure and hazardous-location ratings → Business Impact Improved regulatory compliance and protection against dust and water ingress; Application Ideal for Zone 1/21 environments in chemical plants and refineries. Feature ISO 7010 pictogram signaling → Business Impact Standardized, fast-recognition signage reduces evacuation time; Application Applicable across regulated facilities and multi-shift operations. Feature Wall mounting with M20 gland entry → Business Impact Simplified installation and reliable wiring, lowering commissioning time; Application Useful for constrained spaces in industrial plants. Feature Arrowhead left designation and gray polycarbonate housing → Business Impact Clear directional signage with durable construction, reducing replacement costs; Application Suitable for high-traffic safety environments. Feature Voltage flexibility 110-277 Vac and 110-250 Vdc at 50-60 Hz → Business Impact Enables universal compatibility across existing power systems; Application Easy retrofits and cross-site deployments in global operations.
Get a Quick Quote for a Eaton Crouse-Hinds 12191000022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191000022?
Enquire Now
FAQs
Install the EXIT Sign on a suitable wall surface using the wall-mount hardware. Ensure the enclosure seals are intact for IP66 protection, then connect field wiring through the 1 x M20 plastic cable gland and 1 x M20 screw plug. Provide 110-277 Vac or 110-250 Vdc power at 50-60 Hz, and verify ISO 7010 pictogram orientation (arrow left) for clear evacuation guidance.
The unit supports both 110-277 Vac and 110-250 Vdc with a 50-60 Hz frequency rating. It uses LED illumination and is designed for reliable operation in hazardous locations. Wiring is routed via M20 glands, and a robust gray polycarbonate housing protects the internal components against dust and water ingress (IP66).
Yes. The 12191000022 is IECEx/ATEX certified for Zone 1 and Zone 21 hazardous areas, offering Zone 1 electrical compliance and safe operation in classified locations. Its IP66 rating further ensures resilience against dust and powerful water jets, making it appropriate for chemically aggressive and other demanding environments.
The sign adheres to ISO 7010 requirements for safety pictograms and uses a left-pointing arrow design (Arrowhead left) to clearly indicate egress direction. Certifications include IECEx/ATEX for hazardous locations. Its construction and labeling are intended to minimize misinterpretation and support regulatory signage programs across facilities.
LED technology provides long life with low energy consumption, reducing replacement and energy costs over the sign’s lifecycle. The rugged polycarbonate housing, IP66 protection, and simple wiring reduce maintenance visits, improving uptime. In hazardous locations, this translates to lower total cost of ownership while maintaining high-visibility evacuation signaling.
