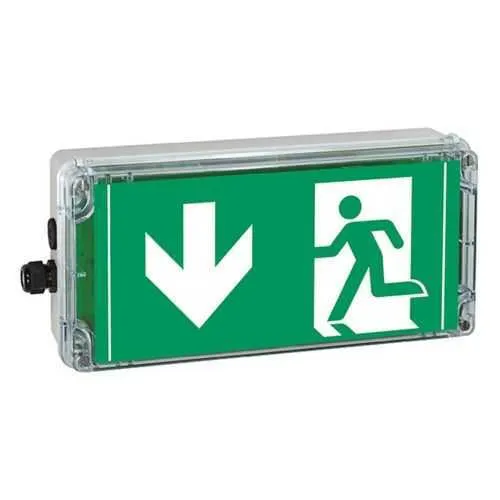

Eaton 12191000023 EXIT Sign - IP66/ATEX Zone 1
Part Number: 12191000023
Quick Summary
EXIT Sign by Eaton is a wall-mounted LED indicator that guides occupants to safety in complex facilities. In hazardous locations, teams often struggle with signs that fail under dust, moisture, or explosive atmospheres. This unit carries IECEx/ATEX certification for Zone 1 and Zone 21, IP66 ingress protection, and ISO 7010 pictograms. Designed for industrial success, it leverages LED efficiency and a compact wall-mount form to reduce maintenance while improving visibility in costly downtime scenarios. The design also supports quick retrofits with a standard M20 gland and secure plug, enhancing lifecycle value in demanding environments.
Product Information
Extended Description
12191000023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT exit sign, Arrowhead downward, Gray, LED, White letter color, Polycarb, Wall mt, Cover with silk-screen pictogram (arrow 6h), 1 x M20 plastic cable gland, 1 x M20 screw plug, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT exit sign
Catalog Number
12191000023
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4250217484872
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 6h)
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs operating instructions
Feature → Business Impact → Application: LED illumination with white letter color delivers high visibility while minimizing power consumption, reducing energy costs and extending component life in continuous operation environments. This improves reliability for 24/7 signaling in chemical plants, refineries, and mining sites. Feature → Compliance → Application: IECEx/ATEX Zone 1/21 ratings plus IP66 protection ensure compliance and protect against dust, water ingress, and ignition sources, enabling safer evacuations and faster permitting in hazardous-location facilities such as oil & gas platforms. Feature → Installation → Application: Wall-mount configuration with 1 x M20 plastic cable gland and 1 x M20 screw plug simplifies wiring and field upgrades, supporting retrofits and standard conduit layouts in existing plant infrastructure. Feature → Design → Application: Silk-screen pictogram (arrow 6h) and ISO 7010 designation provide clear, internationally recognized evacuation cues for varied operator languages in plants and offshore rigs. Feature → Performance → Application: LED, 50–60 Hz operation across 110–277Vac or 110–250Vdc ensures consistent performance under fluctuating electrical conditions, reducing maintenance cycles and improving uptime in harsh environments.
Get a Quick Quote for a Eaton Crouse-Hinds 12191000023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191000023?
Enquire Now
FAQs
Model 12191000023 supports standard wall mounting and field wiring via 1 x M20 plastic cable gland plus 1 x M20 screw plug. It operates from 110-277Vac or 110-250Vdc at 50-60 Hz, accommodating common industrial power rails and conduit layouts. This simplifies retrofits and minimizes wiring changes during upgrades.
Yes. The unit carries IECEx/ATEX ratings for Zone 1 and Zone 21, along with IP66 ingress protection. These certifications ensure safe operation in dusty, wet, and potentially explosive environments, streamlining approvals and procurement for global hazardous-location projects.
It is ideal for chemical plants, oil and gas facilities, mining, and other heavy industries where reliable egress signaling is critical. The arrow-down pictogram and LED visibility support fast evacuation, while the rugged wall-mount design withstands vibration and washdown in demanding environments.
Ensure power supply within 50-60 Hz, connect to 110-277Vac or 110-250Vdc as specified, and secure the M20 gland entries to maintain IP66 integrity. The unit’s pictogram is ISO 7010 compliant, and its mounting orientation is designed for wall installations, making retrofits straightforward and compliant across sites.
LED technology delivers long life and low maintenance, reducing spare-parts costs and downtime in hazardous locations. The rugged polycarbonate housing and compact design resist harsh conditions, while ISO 7010 compliance supports consistent safety languages. Over the lifecycle, this translates to reliable signaling, predictable ROI, and fewer ongoing maintenance events.
