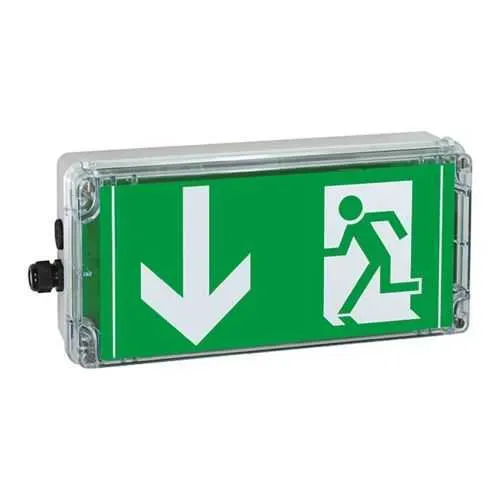

Eaton 12191000103 EXIT exit sign - IP66 IECEx Zone 1
Part Number: 12191000103
Quick Summary
Eaton's 12191000103 EXIT exit sign delivers reliable emergency lighting for hazardous industrial environments. This compact, wall-mounted LED unit clearly marks egress points in challenging locations, reducing evacuation times and improving safety. The design supports IECEx/ATEX certifications and Zone 1 Zone 21 classifications while delivering IP66 ingress protection for dust and water exposure. With white letters on a gray polycarbonate housing, legibility remains high in harsh environments. Its wide voltage range of 110-277 Vac or 110-250 Vdc and DIN 4844 footprint enable flexible, global deployment, simplifying procurement and installation while ensuring regulatory compliance and long-term reliability for maintenance-heavy operations.
Product Information
Extended Description
12191000103 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT exit sign, Arrowhead downwards, Gray, LED, White letter color, Polycarbonate, Wall mount, Cover with silk-screen pictogram (arrow 6h), 2 x M20 metal thread, DIN 4844, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT exit sign
Catalog Number
12191000103
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4250217413100
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
DIN 4844
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 6h)
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs operating instructions
LED illumination provides long life and lower operating costs. The unit accepts 110-277 Vac or 110-250 Vdc, reducing wiring variants in mixed-voltage facilities and supporting global deployment. The 2 kg polycarbonate housing resists impact and exposure to harsh plant environments, delivering dependable operation across multiple shifts. IP66 ingress protection combined with IECEx/ATEX Zone 1/21 ratings delivers compliance and uptime in dusty, wet or explosive atmospheres. This reduces the risk of contamination and unplanned outages, particularly in chemical plants, mines, and offshore platforms. Arrowhead-downward designation and silk-screen pictogram provide immediate evacuation recognition during emergencies. The DIN 4844 footprint, wall mounting, and 2 x M20 mounting threads simplify installation and retrofit in complex layouts. White lettering on gray housing improves visibility in low-light conditions, while LED technology minimizes maintenance and supports long-term reliability in demanding settings.
Get a Quick Quote for a Eaton Crouse-Hinds 12191000103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191000103?
Enquire Now
FAQs
Begin by confirming Zone 1/21 compliance and IP66 suitability for the installation site. Mount the unit on a wall using the two M20 mounting points, ensuring seal integrity to maintain ingress protection. Use the DIN 4844 footprint for compatibility with standard sign mounting accessories, and verify LED orientation and pictogram visibility for optimal evacuation messaging.
Yes. The sign carries IECEx/ATEX certification and is rated for Zone 1 (potentially explosive atmospheres) and Zone 21. It also features IP66 ingress protection, indicating robust resistance to dust and water. These certifications support regulatory compliance in chemical, petrochemical, mining, and offshore environments, reducing risk and simplifying audits.
The sign accepts a broad input range of 110-277 Vac or 110-250 Vdc, with a 50-60 Hz frequency range. This versatility supports global deployment in mixed- voltage facilities and allows consistent performance across shifts, minimizing wiring complexity and inventory needs.
LED technology provides extended life with lower routine maintenance compared to traditional lamp types. The unit's durable polycarbonate housing and sealed construction resist environmental wear, reducing replacement cycles. Operators benefit from fewer service interruptions, lower maintenance costs, and predictable signage performance in demanding industrial environments.
This sign uses a DIN 4844 footprint and wall mounting with 2 x M20 metal threads for straightforward installation. Its IP66 rating, IECEx/ATEX certification, and Zone 1/21 hazard classifications ensure compliance across hazardous locations. The gray housing with white lettering maintains legibility, while the silk-screen pictogram supports clear evacuation messaging in emergencies.
