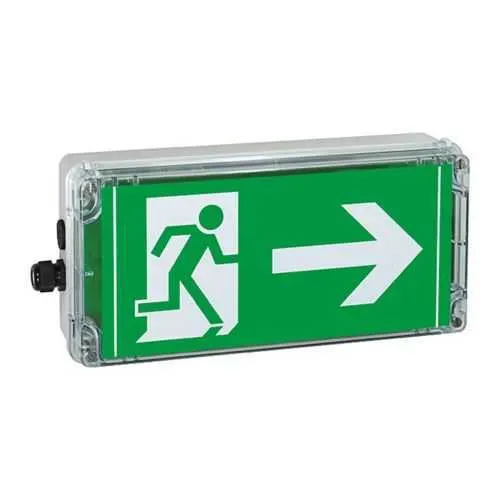

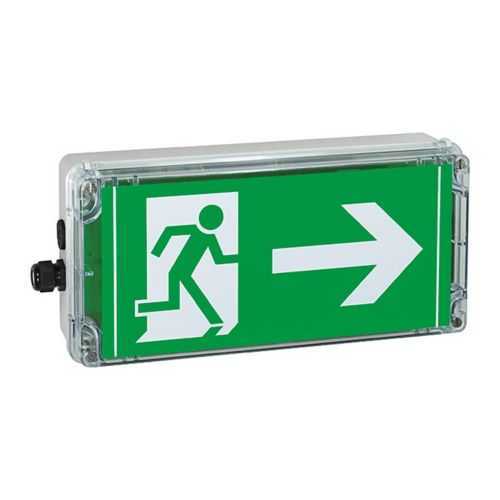

Eaton Crouse-Hinds 12191020001 EXIT V-CG-S - IP66
Part Number: 12191020001
Quick Summary
EXIT V-CG-S exit sign by Eaton Crouse-Hinds provides durable visibility for hazardous-location egress in industrial facilities. In challenging environments with dust, moisture, or explosive atmospheres, conventional signage can fail to remain legible or compliant. This unit carries IECEx/ATEX certification for Zone 1 and Zone 21, IP66 ingress protection, and hazardous-location compliance, ensuring safety-critical messaging in harsh plants. Designed for wall mounting with a DIN 4844 outline and 220-254 Vac operation, it includes a monitoring module for reliability. With a white LED legend and gray polycarbonate housing, it aligns with modern plant safety programs while reducing downtime and ongoing operating costs.
Product Information
Extended Description
12191020001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow right, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 3h), monitoring module, 1 x M20 plastic cable gland, 1 x M20 screw plug, DIN 4844, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020001
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217413001
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Type
DIN 4844
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 3h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
LED lighting delivers long life and energy efficiency, reducing maintenance frequency and energy costs while maintaining high-contrast visibility in low light. Feature → Business Impact → Application: The LED source offers low power consumption and extended service life, translating to lower replacement costs for critical exit signage in busy facilities such as refineries and chemical plants, where uptime is essential. Feature → Business Impact → Application: The wall-mounted design with DIN 4844 compatibility enables quick retrofits and straightforward installation in existing enclosures, minimizing downtime during upgrades or code-compliance projects. Feature → Business Impact → Application: IP66 ingress protection ensures reliable operation in dusty, wet, and wash-down environments common in process industries, reducing the risk of downtime due to water or dust ingress. Feature → Business Impact → Application: IECEx/ATEX Zone 1/21 certification provides regulatory clearance for hazardous locations, supporting compliance-driven projects in oil & gas, mining, and chemical processing. Feature → Business Impact → Application: The integrated monitoring module enhances reliability by detecting LED or circuit faults early, lowering emergency maintenance calls and improving safety program metrics. Feature → Business Impact → Application: The unit operates on 220-254 Vac (50-60 Hz) with white legend lettering and a gray polycarbonate housing, offering compatibility with standard plant power supplies and suppressing confusion during evacuations. These features collectively support safer egress, faster maintenance planning, and cost-effective installation across hazardous-location deployments.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020001?
Enquire Now
FAQs
12191020001 is designed for wall mounting with a DIN 4844 footprint. It includes 1 x M20 plastic cable gland and 1 x M20 screw plug for flexible wiring, enabling quick integration into existing enclosures and conduits while meeting wiring standards for hazardous environments.
Yes. The unit carries IECEx/ATEX certifications for Zone 1 and Zone 21 hazardous locations, delivering compliant operation in explosive atmospheres such as chemical processing, oil & gas, and mining facilities without sacrificing performance or visibility.
The EXIT V-CG-S operates across 220-254 Vac and 50-60 Hz, with a compatible DC range of 195-250 Vdc. This broad range ensures reliable performance across standard industrial power systems and reduces the need for additional power conditioning in mixed-site deployments.
The integrated monitoring module provides fault detection for LED health and circuit integrity, enabling proactive maintenance and reducing unexpected sign failures during critical evacuations. This translates to lower emergency service costs and improved safety program reliability in hazardous environments.
Absolutely. The V-CG-S adheres to DIN 4844 dimensional standards and offers IP66 protection, making it suitable for wall-mounted installations in dusty, wash-down, and high-dust settings typical of process plants while ensuring regulatory compliance and long-term durability.
