Eaton 12191020003 EXIT Sign - IP66 Zone 1/21 Hazardous
Part Number: 12191020003
Quick Summary
EXIT Sign is a rugged LED emergency device that provides clear emergency egress guidance for industrial facilities. In hazardous environments, wiring, protection, and regulatory compliance often complicate installation and ongoing maintenance. It carries IECEx/ATEX for Zone 1 and Zone 21, IP66 protection, and Hazardous/Classified Location ratings, ensuring safe operation in demanding locations. Designed for quick deployment and long-term reliability, this signage supports regulatory compliance, reduces downtime, and lowers lifecycle costs for facilities. With its wall-mount design, silk-screen pictograms, and a built-in monitoring module, it simplifies retrofit projects and ongoing safety monitoring across sites. The product supports standard DIN 4844 mounting and M20 gland connections for fast, code-compliant installation.
Product Information
Extended Description

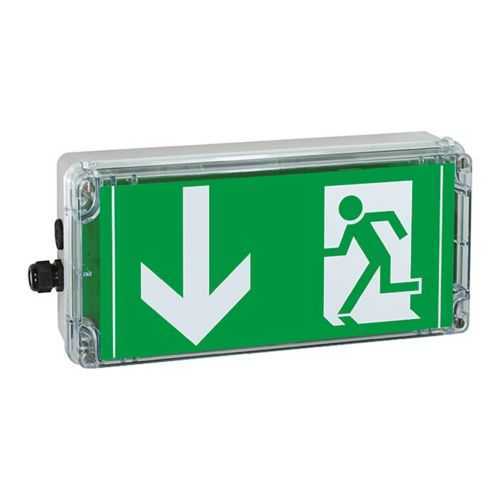

12191020003 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow down, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 6h), monitoring module, 1 x M20 plastic cable glands, 1 x M20 screw plug, DIN 4844, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020003
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217412981
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
DIN 4844
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 6h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
LED illumination provides high visibility with a low energy footprint. The 220-254 Vac / 195-250 Vdc supply and 50-60 Hz compatibility support reliable operation across regional power grids, while white letters on a durable polycarbonate lens ensure legibility in harsh lighting. In industrial facilities, this translates to lower energy bills and longer maintenance intervals, especially for signage that runs continuously in production corridors and exit routes. IP66 ingress protection combined with IECEx/ATEX Zone 1/21 certification means this exit sign performs reliably in dust, water exposure, and explosive atmospheres. This reduces the risk of signage failures during critical safety checks, supports compliance with global standards, and allows use in chemical plants, refineries, and mining operations. Wall mounting and DIN 4844 compatibility simplify installation. The unit ships with 1 x M20 plastic cable glands and 1 x M20 screw plug, plus a cover with silk-screen pictogram and a monitoring module, enabling neat, code-compliant wiring and easy fault monitoring. Durable polycarbonate construction, gray housing, and a 2.2 kg weight provide robust performance in challenging environments, while the arrow-down pictogram ensures quick comprehension even at a distance.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020003?
Enquire Now
FAQs
Yes. The 12191020003 is designed for wall mounting per DIN 4844 and ships with one M20 plastic cable gland and one M20 screw plug for secure wiring. It supports 220-254 Vac / 195-250 Vdc operation at 50-60 Hz, and includes a cover with pictogram for clear, code-compliant installation in industrial settings.
The sign uses LED illumination with a voltage rating of 220-254 Vac and 195-250 Vdc, operating at 50-60 Hz. It features white lettering on a polycarbonate lens, a 380.5 mm length, 175 mm height, and 76 mm width, with an overall weight of approximately 2.2 kg, suitable for continuous use in harsh environments.
Yes. The EXIT V-CG-S sign is certified IECEx/ATEX for Zone 1 and Zone 21, enabling safe operation in flammable or explosive atmospheres. Combined with IP66 protection, it remains functional in dusty and wet conditions, making it suitable for chemical plants, refineries, mining, and similar operations.
The device is rated for Hazardous/Classified Locations and carries IECEx/ATEX certifications for Zone 1/21. It also has IP66 ingress protection and adheres to DIN 4844 mounting standards, with a wall-mount design compatible with typical industrial electrical installations and safety inspection requirements.
The LED technology delivers lower energy use and longer service intervals compared with traditional lamps, reducing operating costs. A built-in monitoring module supports proactive maintenance and status reporting, while durable polycarbonate construction and IP66/ATEX compliance minimize downtime and extend lifecycle in challenging environments, improving overall facility safety and ROI over time.
