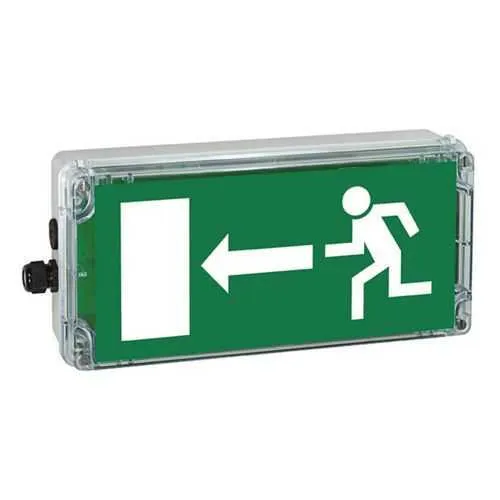

Eaton 12191020012 EXIT V-CG-S exit sign - IP66
Part Number: 12191020012
Quick Summary
EXIT V-CG-S exit sign provides bright, compliant emergency indication for hazardous industrial areas. In corrosive or explosive zones, failing signage can delay evacuation and complicate compliance. This unit carries IECEx/ATEX certification, Zone 21/1 rating, and IP66 protection, ensuring performance in harsh conditions. With wall-mount installation and LED efficiency, it lowers maintenance costs and supports safer, compliant facilities.
Product Information
Extended Description
12191020012 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow left, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 9h), monitoring module, 1 x M20 plastic cable glands, 1 x M20 screw plug, EN 1838, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020012
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250959900715
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Type
EN 1838
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 9h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
LED lamp technology delivers long life and low power draw, reducing energy usage and maintenance intervals. This translates to lower operating costs and fewer disruptions during inspections. Suitable for continuous operation in busy facilities where clear visibility is critical for safe egress. IP66 enclosure protection shields against dust ingress and powerful washdowns, enabling installation in dusty plants, outdoor areas, or harsh environments without compromising performance. This supports dependable operation in hazardous and classified locations while meeting regulatory expectations. IECEx/ATEX certification and Zone 21/1 rating verify global explosion-protection compliance, reducing procurement risk and simplifying specifications for chemical plants, oil refineries, and offshore operations. Monitoring module and pictogram cover enhance fault detection and evacuation clarity, improving safety management and reducing downtime during audits. Wall mounting with standard M20 glands and screw plug simplifies installation, cable management, and future maintenance, enabling straightforward retrofits in constrained spaces. The design supports 220–254 VAC and 50–60 Hz operation, aligning with typical industrial power systems for hazard-prone sites. Compatible with Crouse-Hinds LED signage families to streamline multi-unit implementations.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020012?
Enquire Now
FAQs
Yes. The EXIT V-CG-S is designed for wall mounting in hazardous locations (Zone 21/1) and includes a 1 x M20 plastic cable gland plus a screw plug for secure, sealed cable entry. The unit’s IP66 enclosure protects against dust and water ingress, while the polycarbonate housing provides robust impact resistance. For retrofits, ensure mounting surface can accommodate the 380.5 mm length and 175 mm height; use appropriate adapters if needed to align pictograms for clear visibility.
The EXIT V-CG-S operates from 220–254 VAC and 50–60 Hz, with a secondary 195–250 VDC range available for certain configurations. It uses LED lighting for long life and low maintenance. The sign features white letter illumination on a gray polycarbonate housing, with a left-arrow pictogram (Arrowhead left) to meet EN 1838 signaling standards. The IP66 rating ensures reliability in challenging environments.
Industries with harsh or hazardous environments benefit most, including chemical plants, oil refineries, petrochemical facilities, and large industrial warehouses. Zone 21/1 and IECEx/ATEX certifications make it suitable for hazardous/classified locations, while the wall-mount design supports compact retrofits in constrained spaces without compromising visibility or compliance.
The EXIT V-CG-S is IECEx/ATEX certified for hazardous locations and rated Zone 21/1. It also complies with EN 1838 for emergency lighting and uses IP66 ingress protection. These certifications help ensure regulatory compliance, streamline procurement, and reduce the risk of non-conforming equipment being installed in critical safety areas.
The built-in monitoring module provides proactive fault detection, enabling preventative maintenance before failures occur and reducing unplanned downtime. Combined with long-life LED illumination and low energy consumption, this configuration lowers operating costs, extends product life, and improves plant safety records. The module also simplifies compliance reporting during inspections and reduces labor costs associated with routine sign verification.
