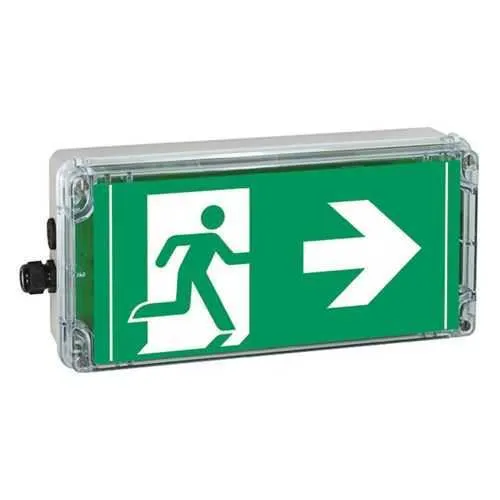

Eaton 12191020021 EXIT Sign - Zone 1/21 IECEx/ATEX
Part Number: 12191020021
Quick Summary
EXIT Sign 12191020021 from Eaton provides reliable emergency illumination for hazardous-location facilities. In harsh environments, traditional signage can fail due to ingress, high maintenance costs, or noncompliant ratings. With IECEx/ATEX certification for Zone 1 and Zone 21 and an IP66 rating, it remains visible and durable in demanding conditions. The LED stability, wall-mount design, and built-in monitoring module drive lower operating costs, while ensuring compliant egress illumination. This combination supports safer, compliant facilities and streamlined maintenance budgets for industrial operations.
Product Information
Extended Description
12191020021 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow right, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 3h), monitoring module, 1 x M20 plastic cable gland, 1 x M20 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020021
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217484735
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 3h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
LED illumination delivers energy-efficient, long-life visibility, reducing operating costs while ensuring clear egress in critical areas. The sign’s 380.5 mm length, 175 mm height, and 76 mm width fit compact wall installations, with a weight of 2.2 kg that simplifies mounting. Utilizing a polycarbonate housing in gray with white illuminated letters, it maintains legibility in challenging environments and resists impact. IP66 ingress protection and hazardous-location approvals (Zone 1, Zone 21 under IECEx/ATEX) provide reliable performance in chemical plants and on offshore assets, minimizing downtime and regulatory risk. The unit ships with cover featuring silk-screen pictogram (arrow 3h) and a monitoring module, enabling status alerts and proactive maintenance planning. The M20 gland and plug options facilitate flexible cable configurations, easing installation and future retrofits. Compatibility with 50–60 Hz supply and dual voltage ranges supports global deployments.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020021?
Enquire Now
FAQs
Install on a solid wall surface using the provided mounting provisions. Route power to the 220-254 Vac / 195-250 Vdc supply through suitable wiring, connect the monitoring module, and utilize the 1 x M20 plastic cable gland plus 1 x M20 screw plug. Ensure IP66 seals and proper enclosure integrity to maintain Zone 1/21 compliance and uninterrupted visibility.
The sign operates at 220-254 Vac or 195-250 Vdc with a frequency of 50-60 Hz and uses LED illumination for high efficiency and long-life. It features white letters on a gray polycarbonate housing, with a compact wall-mount design weighing 2.2 kg for straightforward installation and maintenance in constrained spaces.
Yes. The EXIT V-CG-S is certified for Zone 1 and Zone 21 under IECEx/ATEX and carries IP66 ingress protection, making it appropriate for chemical processing facilities, refineries, and offshore platforms where corrosive or dusty atmospheres are common and reliable egress signaling is critical.
It carries IECEx/ATEX certification for hazardous locations (Zones 1 and 21) and an IP66 rating for robust protection against dust and water ingress. Its area classification aligns with Hazardous/Classified Locations requirements, ensuring compliance in high-stakes industrial environments.
The built-in monitoring module provides status visibility to reduce unexpected outages, while LED technology lowers energy consumption and extends service life. The robust polycarbonate housing and sealed design minimize maintenance, reducing total cost of ownership in demanding facilities without compromising safety or compliance.
