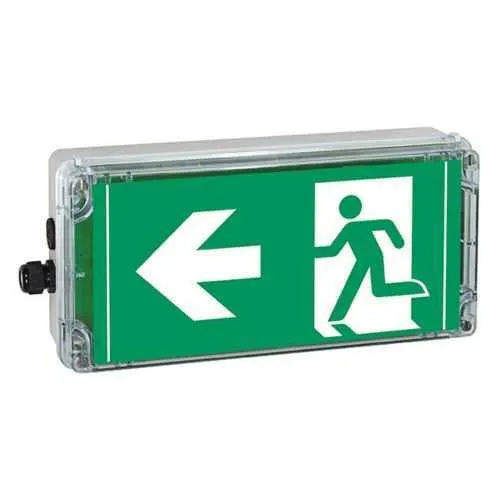

Eaton 12191020022 Exit Sign - IECEx/ATEX, IP66
Part Number: 12191020022
Quick Summary
Exit Sign 12191020022 from Eaton Crouse-Hinds provides reliable emergency visibility for hazardous locations in industrial facilities. Operators often struggle with signage that fails under harsh conditions, leading to missed safety cues and regulatory scrutiny. This unit carries IECEx/ATEX certifications for Zone 1 and Zone 21, plus IP66 protection and ISO 7010-compliant pictograms, ensuring safe, compliant operation. Built for wall mounting with LED illumination, it reduces energy use and maintenance while supporting fast, accurate wayfinding. With a robust polycarbonate housing and an optional monitoring module, it aligns with modern facilities' reliability and safety goals.
Product Information
Extended Description
12191020022 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow left, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 9h), monitoring module, 1 x M20 plastic cable glands, 1 x M20 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020022
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217484797
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 9h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
LED illumination delivers high efficiency and long life, reducing energy costs and maintenance intervals while maintaining clear egress visibility in ongoing operations. The IP66-rated enclosure protects against dust and water ingress, translating to lower replacement costs and fewer downtime events in outdoor or harsh indoor environments. IECEx/ATEX Zone 1 and Zone 21 certifications guarantee regulatory compliance in hazardous locations, enabling safe installation in chemical plants, refineries, and mining facilities. The ISO 7010-compliant pictogram cover ensures universal recognition across shifts and languages, reducing response times during emergencies. Wall mounting with a standard M20 gland footprint simplifies retrofit and new-build installation, while the optional monitoring module provides remote status checks to preemptively address lighting faults. Polycarbonate housing combines durability with lightweight handling, improving total cost of ownership and lifecycle resilience in demanding industrial settings. The unit supports a broad voltage range of 220-254 Vac and 195-250 Vdc at 50-60 Hz, ensuring compatibility with existing power infrastructure and minimizing installation risk.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020022?
Enquire Now
FAQs
The 12191020022 is a wall-mounted exit sign designed for hazardous environments. It includes 1 x M20 plastic cable glands and 1 x M20 screw plug, supports monitoring module integration, and uses a rugged polycarbonate housing. Ensure correct wiring within 220-254 Vac or 195-250 Vdc supply, observe IP66 protection, and follow IECEx/ATEX installation guidelines for Zone 1 and Zone 21 applications.
This exit sign operates at 220-254 Vac or 195-250 Vdc with a frequency of 50-60 Hz. It uses LED technology for illumination, and the unit is designed to interface with standard industrial power systems, minimizing the need for additional power conditioning. The wide voltage range supports consistent performance across varying supply conditions common in large facilities.
Yes. The product carries IECEx/ATEX certifications for hazardous locations, including Zone 1 and Zone 21 classifications, along with ISO 7010 compliant pictograms. This combination ensures regulatory compliance, clear hazard communication, and safety standards alignment in chemical plants, offshore platforms, and other high-risk environments.
Industries such as oil & gas, chemical processing, mining, and power generation benefit most. The IP66 enclosure protects against dust and water ingress, while the hazardous-location ratings and pictogram standards support reliable egress signaling in tough environments, reducing risk and enhancing compliance during audits and inspections.
The LED technology delivers lower energy consumption and longer service life than traditional lamps, reducing replacement costs and downtime. The optional monitoring module provides proactive fault notifications, improving maintenance planning. Combined with IECEx/ATEX compliance and IP66 protection, the sign lowers regulatory risk and supports faster, safer evacuations in emergencies.
