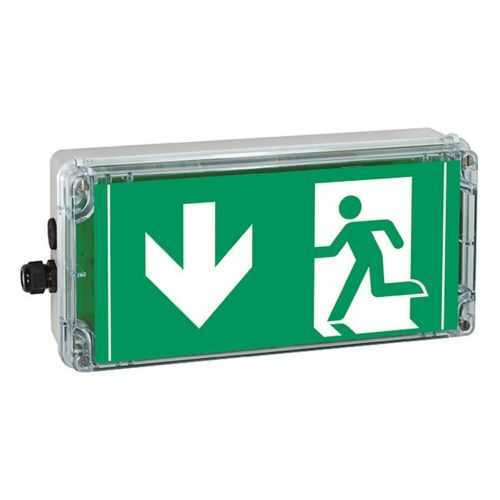

Eaton Crouse-Hinds Exit Sign 12191020023 - IP66
Part Number: 12191020023
Quick Summary
Exit Sign from Eaton Crouse-Hinds V-CG-S provides reliable emergency visibility for hazardous industrial locations. In challenging facilities with explosion-risk zones, teams struggle to meet safety codes while controlling maintenance costs. This unit carries IECEx/ATEX certification with Zone 1 and Zone 21 ratings and IP66 protection, delivering compliance and rugged performance. The LED design reduces energy use and simplifies maintenance, while its wall-mount form supports quick retrofits. With ISO 7010-compliant white lettering and a clear arrow-down pictogram, this sign streamlines safety communications, helping facilities improve safety metrics and lower total cost of ownership in demanding environments.
Product Information
Extended Description
12191020023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow down, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 6h), monitoring module, 1 x M20 plastic cable glands, 1 x M20 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020023
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217484896
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 6h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature → Business Impact → Application: The LED light source delivers high visibility with low energy consumption, leading to reduced operating costs and longer intervals between maintenance cycles in busy facilities such as chemical plants or refineries. This translates to fewer outages during shift changes and improved safety for personnel. Application: suitable for warehouses, process plants, and hazardous locations where reliable exit signaling is essential. Feature → Business Impact → Application: IP66 ingress protection combined with IECEx/ATEX Zone 1 and Zone 21 certifications ensures safe operation in damp, dusty, and potentially explosive environments, reducing regulatory risk and enabling compliant installations in oil & gas facilities and mining sites. Application: critical egress signage in hazardous areas. Feature → Business Impact → Application: Includes cover with silk-screen pictogram (arrow 6h) and an integrated monitoring module that highlights health of the sign and alerts maintenance teams before failure. Application: proactive maintenance programs in continuous operation plants. Feature → Business Impact → Application: 220-254 Vac, 195-250 Vdc, 50-60 Hz compatibility supports global electrical systems, enabling simple replacements and scalable rollouts. Application: multinational facilities with mixed power grids. Feature → Business Impact → Application: Wall-mount design and 1 x M20 glands plus plug simplify wiring, reducing installation time and on-site mistakes. Application: retrofit projects and new builds in hazardous zones. Feature → Business Impact → Application: Polycarbonate housing with gray finish provides robust durability, resistance to impact and harsh conditions, and long service life, lowering lifetime costs. Application: high-traffic exits in industrial environments.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020023?
Enquire Now
FAQs
The unit is designed for wall mounting and includes a robust gray polycarbonate housing with ISO 7010 pictogram. Its IP66 rating and IECEx/ATEX Zone 1/21 certifications mean it performs reliably in hazardous locations while simplifying mounting during retrofits or new installations. Field wiring is facilitated by the included M20 glands and plug, reducing installation time.
It operates at 220-254 Vac and 195-250 Vdc with a frequency range of 50-60 Hz, enabling compatibility with global power systems. The fixture is suitable for both new builds and retrofits in industrial settings, and its wiring provisions include one M20 plastic cable gland and one M20 screw plug for straightforward entry management.
The EXIT V-CG-S carries IECEx/ATEX certification for hazardous locations with Zone 1 and Zone 21 ratings, and an IP66 ingress protection level, ensuring suitability for damp, dusty, and explosive environments. It also adheres to ISO 7010 for pictograms and overall safety signaling expectations in industrial facilities.
Key elements include the pictogram cover (arrow 6h) and the built-in monitoring module, which enable ongoing status checks and quick verification of sign health. The wall-mount design and standard cable entries simplify wiring and future servicing, helping maintenance teams plan routine checks and minimize downtime during inspections.
The LED technology reduces energy consumption and extends service life, lowering energy costs and replacement frequency. Certifications for hazardous locations minimize regulatory risk, while the monitoring module supports proactive maintenance, reducing unplanned outages and improving overall safety performance and return on investment.
