Eaton 12191020101 EXIT Sign - IP66 Zone 1/21
Part Number: 12191020101
Quick Summary
Eaton EXIT V-CG-S exit sign delivers reliable emergency visibility for industrial facilities' corridors and egress routes. In hazardous locations, outdated signage can fail under moisture, vibration, or regulatory scrutiny, risking safety and compliance. This unit carries IECEx/ATEX certification, IP66 ingress protection, and Zone 1/21 hazardous-area ratings to ensure operation in harsh environments. Designed for wall mounting with a durable polycarbonate housing, it supports LED efficiency and monitoring capabilities while reducing maintenance cycles and total cost of ownership. For engineers and procurement teams, this sign offers reliable performance alongside straightforward installation and long-term regulatory confidence in demanding facilities.
Product Information
Extended Description

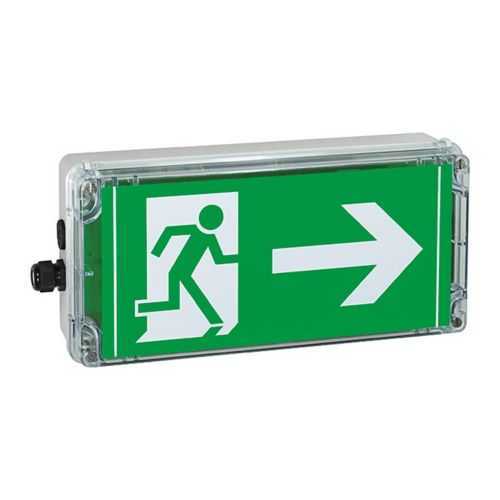

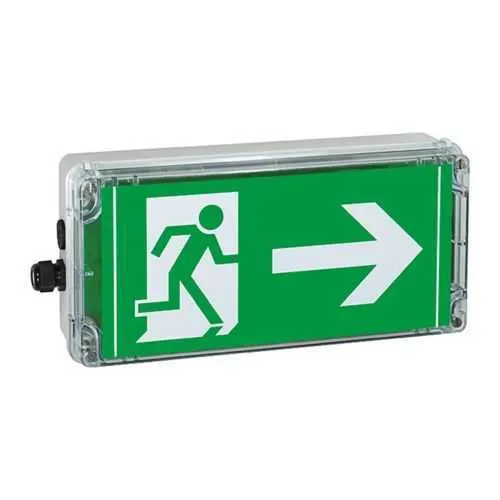

12191020101 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrowhead right, Gray, LED, White letters, Polycarbonate, Wall mount, Cover with pictogram (arrow 3h), monitoring module, 2 x M20 metal thread, DIN 4844, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020101
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217412967
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Type
DIN 4844
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 3h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature: LED lamp type provides high visibility with low energy consumption. Business Impact: Lower operating costs and longer service life reduce replacement cycles and maintenance budgets. Application: Industrial plants where continuous signaling is required without frequent lamp changes. Feature: IP66 rated enclosure plus IECEx/ATEX Zone 1/21 certification. Business Impact: Ensures compliance with hazardous-location requirements and protects against dust and water ingress, reducing downtime. Application: Chemical plants, oil & gas facilities, mining operations. Feature: Wall-mount design with 2 x M20 metal thread entries. Business Impact: Flexible, code-compliant wiring access simplifies installation in confined spaces and supports robust cable management. Application: New installations and retrofits in compact machines and control rooms. Feature: Includes cover with silk-screen pictogram (arrow 3h) and a monitoring module. Business Impact: Improves safety signaling clarity and enables status monitoring to preempt failures. Application: Areas requiring clear egress pictograms and remote signaling capabilities. Feature: Durable polycarbonate housing in gray finish. Business Impact: High impact resistance and vandal resistance with a neutral aesthetic suitable for industrial interiors. Application: Manufacturing floors, clean rooms adjacent corridors, and outdoor-wad areas. Feature: Voltage rating 220-254 Vac / 195-250 Vdc and 50-60 Hz compatibility. Business Impact: Broad power compatibility supports integration with existing electrical infrastructure and reduces converter needs. Application: General industrial power systems and building automation.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020101?
Enquire Now
FAQs
Install the EXIT V-CG-S in Zone 1/21 areas using the wall-mount configuration. Ensure IP66 enclosure protection to resist dust and water ingress and route cables through the 2 x M20 entries for compliant, robust wiring. Verify IECEx/ATEX labeling and maintain proper clearance around the sign to support heat dissipation and visibility in harsh environments.
The unit operates on 220-254 Vac and 195-250 Vdc, with a frequency range of 50-60 Hz. This dual voltage capability simplifies integration with typical plant electrical systems and minimizes the need for power conversion. Ensure power supply stability within these ranges to maximize LED life and signal reliability.
Yes. It is certified for Zone 1 (gas) and Zone 21 (dust) environments under IECEx/ATEX standards. The IP66 rating provides robust protection against dust and powerful water jets. These certifications, combined with durable polycarbonate construction, make it appropriate for hazardous-location signaling in petrochemical, mining, and other demanding industries.
The built-in monitoring module provides status feedback and optional signaling for failure or fault conditions. This enables preventive maintenance scheduling, reduces unexpected outages, and ensures continuous visibility of emergency exits. In regulated facilities, it supports compliance reporting and rapid fault isolation during audits.
The exit sign measures 380.5 mm in length, 175 mm in height, and 76 mm in width, weighing 2.2 kg. It is designed for wall mounting and features two M20 cable entries for flexible wiring. The durable polycarbonate housing with gray finish provides weather and impact resistance suitable for harsh industrial environments.
