Eaton 12191020103 Exit Sign - IP66 for Hazardous Locations
Part Number: 12191020103
Quick Summary

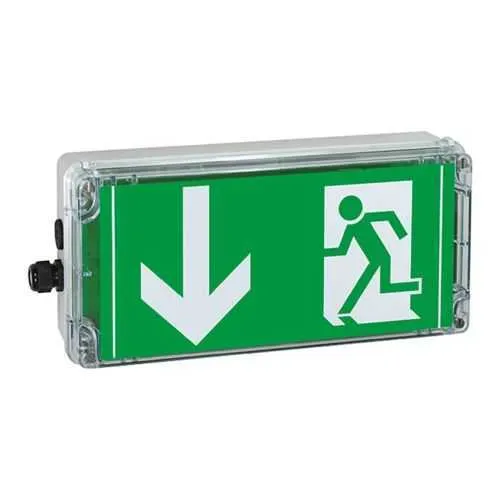

Exit Sign from Eaton Crouse-Hinds EXIT V-CG-S delivers reliable, clearly legible egress signaling for hazardous industrial environments. In demanding plants, inconsistent lighting or damaged enclosures can delay evacuations and elevate risk. This unit carries IECEx/ATEX certifications for Zones 21 and 1, and IP66 protection against dust and water, alongside hazardous-location classifications that support regulatory compliance. With wall mounting and an LED light source, it delivers long life with low energy use, reducing maintenance cycles and electricity costs. By pairing a monitored module with a silk-screen pictogram cover, it also supports safer, auditable safety signaling and easier inspection routines, while remaining compatible with standard power supplies and field-installable accessories.
Product Information
Extended Description
12191020103 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow downwards, Gray, LED, White letter color, Polycarb, Wall mount, Cover with silk-screen pictogram (arrow 6h), monitoring module, 2 x M20 metal thread, DIN 4844, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020103
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217412943
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
DIN 4844
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 6h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature LED technology with a long-life, low-energy LED lamp → Business Impact Reduced maintenance cycles and operating costs → Application Ideal for continuous exit signaling in busy production spaces and corridors in hazardous locations. Feature IP66-rated enclosure plus IECEx/ATEX Zone 21/1 compliance → Business Impact Enhanced protection against dust and water ingress while meeting strict regulatory requirements → Application Suitable for chemical plants, oil & gas facilities, and other classified sites. Feature Wall-mount design with dimensions 380.5 mm × 175 mm × 76 mm and weight 2.2 kg → Business Impact Compact, predictable footprint simplifies retrofits and minimizes structural changes → Application Retrofit or new-build installations in tight utility rooms or above exits. Feature Monitoring module included → Business Impact Proactive fault detection reduces downtime and supports compliance documentation → Application Critical in safety management programs and maintenance planning. Feature Silk-screen pictogram cover (arrow 6h) and white letter color on polycarbonate housing → Business Impact Improved visibility and standardized evacuation cues under varied lighting → Application Standardized signaling in process plants and refineries. Feature Dual power options 220-254 Vac or 195-250 Vdc at 50-60 Hz → Business Impact Flexible, worldwide applicability and reduced cable-management complexity → Application Global installations and multi-site rollouts benefit from universal voltage compatibility.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020103?
Enquire Now
FAQs
The unit is designed for wall mounting in Zone 21/1 environments. Use the two M20 mounting threads to secure the housing, connect to 220-254 Vac or 195-250 Vdc supply, and attach the monitoring module as specified. Ensure IP66 seals are intact and the silk-screen pictogram cover is installed to maintain visibility and compliance. Verify proper grounding and perform a functional test after installation.
The EXIT sign supports a dual voltage range: 220-254 Vac and 195-250 Vdc at 50-60 Hz. This enables worldwide deployment without voltage conversion. When ordering, confirm the site’s available power and select the version that matches your electrical infrastructure. The unit also includes a monitoring module to enhance fault detection and maintenance planning.
Yes. The product carries IECEx/ATEX certification for Zone 21 and Zone 1, and is rated IP66, which ensures protection against dust and water ingress in challenging environments. This makes it appropriate for chemical plants, offshore platforms, and other classified areas requiring robust evacuation signaling.
LED technology provides long life with low power consumption, reducing lamp replacement intervals and energy costs. The built-in monitoring module supports proactive fault detection, enabling planned maintenance rather than reactive repairs. The silk-screen pictogram cover maintains clear, standardized evacuation cues, reducing training time and inspection overhead.
Dimensions are 380.5 mm L × 175 mm H × 76 mm W with a weight of 2.2 kg, designed for wall mounting. The unit uses 2 x M20 metal thread entries for mounting and cable entry, simplifying integration into existing enclosures or new installations. When procuring, verify space above exits and ensure compatibility with nearby electrical and safety systems.
