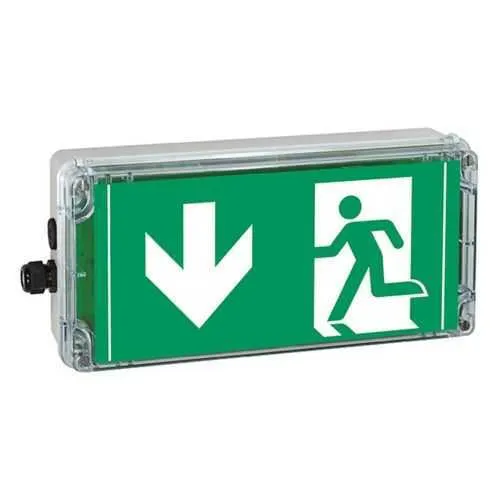

Eaton Crouse-Hinds EXIT Sign 12191020123 - IP66
Part Number: 12191020123
Quick Summary
EXIT Sign provides clear egress guidance for industrial facilities during outages or emergencies. Many signs fail in harsh environments or under sporadic power, causing delays during critical events. This unit meets IECEx/ATEX for hazardous areas and IP66 ingress protection, ensuring reliability in Zone 1/21 environments. Its LED lighting offers low power draw for long life and visible white letters, ideal for wall-mounted installations in demanding facilities. This combination supports faster approvals, lowers maintenance costs, and strengthens site safety programs. The compact 380.5 mm length and 76 mm width simplify retrofits, while the 2 x M20 entries ease cable management. With ISO 7010 pictograms and a monitoring module, operators stay informed without unnecessary downtime.
Product Information
Extended Description
12191020123 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT V-CG-S exit sign, Arrow downwards, Gray, LED, White letter color, Polycarb, Wall mount, Cover with silk-screen pictogram (arrow 6h), monitoring module, 2 x M20 metal thread, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT V-CG-S exit sign
Catalog Number
12191020123
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250217484902
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
ISO 7010
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 6h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature LED illumination delivers high-contrast visibility with low power draw, reducing energy bills and extending LED life. Business impact: lower operating costs, fewer lamp replacements, and reliable performance during power fluctuations. Application: horizontal and vertical exit routing on production floors, warehouses, and maintenance areas where quick, legible exit indicators are critical for safety audits and emergency drills. Feature Hazardous-location readiness combines IECEx/ATEX certification and IP66 protection to withstand washdowns, dust ingress, and corrosive environments. Business impact: simplifies risk assessments, accelerates regulatory approvals, and reduces non-compliance penalties. Application: Zone 1/Zone 21 installations in chemical plants, refineries, or mining facilities where equipment must endure harsh conditions without compromising visibility. Feature Construction and mounting options include polycarbonate housing in gray, wall-mount capability, and a silk-screen pictogram arrow 6h. Business impact: durable, tamper-resistant signage that supports straightforward retrofits and ongoing maintenance. Application: new installations or upgrading legacy signs in areas with fixed obstructions, ensuring consistent sign orientation and legibility across shifts. Feature Flexible electricals: voltage rating 220-254 Vac or 195-250 Vdc; 50-60 Hz; 2 x M20 metal thread entries; 380.5 mm length; 76 mm width; 175 mm height. Business impact: versatile power options for global sites and simplified cabling, reducing installation time and field wiring errors. Application: industrial sites with mixed electrical supplies, where wall-mounted exit signs must adapt to varying power standards. Feature Compliance and lifecycle support includes ISO 7010 lettering, a monitoring module option, and an easy-to-clean surface. Business impact: supports regulatory documentation, proactive fault reporting, and lower maintenance overhead. Application: facilities aiming for structured safety programs, periodic audits, and reliable signage that stays legible under demanding conditions.
Get a Quick Quote for a Eaton Crouse-Hinds 12191020123
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191020123?
Enquire Now
FAQs
The EXIT V-CG-S is designed for Zone 1/21 hazardous locations with IECEx/ATEX certification and IP66 protection, suitable for washdowns and dusty environments. Plan wall-mount placement to optimize visibility and minimize obstructions. Use the 2 x M20 metal threads for robust cabling, and ensure wiring meets local electrical codes for 220-254 Vac or 195-250 Vdc supplies. Verify pictogram orientation for ISO 7010 compliance and allow space for the monitoring module if selected.
This model complies with ISO 7010 by using a silk-screen arrow pictogram (arrow 6h) and white letter color for clear visibility. IECEx/ATEX certification confirms suitability for hazardous locations, specifically Zone 1 and Zone 21, while IP66 ensures ingress protection in harsh environments. These standards support regulatory audits, worker safety programs, and cross-border installations without separate sign adaptations.
Yes. The unit is designed for wall mounting with a compact footprint: 380.5 mm length, 76 mm width, and 175 mm height. Its 2 x M20 cable entries simplify field wiring, and the LED light source provides long life with low energy use. Retrofitting benefits include faster installation, reduced downtime, and consistent signage across facilities already using ISO 7010-compliant indicators.
An optional monitoring module is available to enhance status reporting and fault detection, enabling proactive maintenance and reducing unexpected downtime. The sign also features a silk-screen pictogram (arrow 6h) for immediate recognition and easy compliance verification. Regular cleaning and inspection are straightforward due to the polycarbonate housing and robust IP66 enclosure, suitable for frequent washdowns.
The EXIT Sign operates at 220-254 Vac or 195-250 Vdc with a frequency range of 50-60 Hz. The LED lamp provides high visibility with low energy consumption, while the 2 x M20 metal thread entries simplify field wiring. The unit is built to withstand harsh environments with IP66 protection and Zone 1/21 certification, making it versatile for global installations.
