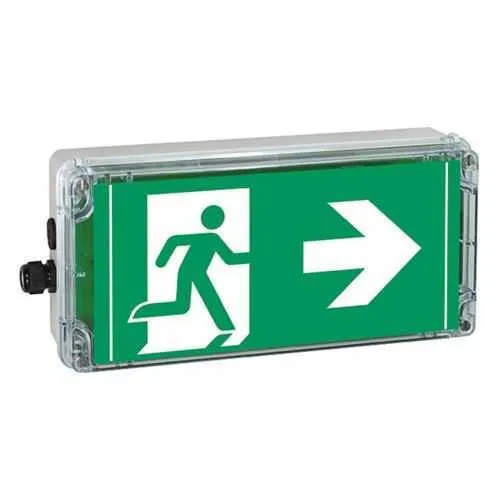

Eaton Crouse-Hinds 12191024021 LED Exit Sign - IP66
Part Number: 12191024021
Quick Summary
Eaton Crouse-Hinds EXIT 24V exit sign provides reliable, visible egress indication for hazardous-location facilities. In harsh environments, poor signage can delay evacuations and create safety risks during emergencies. Certified for IECEx/ATEX, Zone 1/21 hazardous locations, and IP66 protection, this wall-mounted LED sign meets ISO 7010 pictograms for quick recognition. Designed for industrial spaces with 12-24 Vdc operation, it combines LED efficiency with a rugged polycarbonate housing to reduce maintenance and operating costs.
Product Information
Extended Description
12191024021 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 24V exit sign, Arrowhead right, Gray, LED, White letter color, Polycarbonate, Wall mount, Cover with silk-screen pictogram (arrow 3h), 1 x M20 plastic cable glands, 1 x M20 screw plug, ISO 7010, 12-24 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 24V exit sign
Catalog Number
12191024021
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4250217484759
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 3h)
Voltage rating
12-24 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Durable IP66 polycarbonate housing protects the exit sign from dust, water spray, and impact in harsh plants. This rugged enclosure means reliable operation in chemical, oil, and outdoor environments without frequent replacements, reducing downtime and maintenance costs. Ideal for wall-mounted installation in loading docks, process rooms, and outdoor facilities where exposure to contaminants or weather is common. LED lamp technology delivers long life and low energy consumption, translating to lower total cost of ownership and less frequent lamp or driver replacements in mission-critical signaling. The 12-24 Vdc input provides flexible integration with existing plant power systems and emergency circuits, simplifying wiring and improving reliability during power events. ISO 7010 pictogram covers ensure standardized exit recognition, while the Arrowhead right designation directs occupants quickly to safety in an emergency. IECEx/ATEX Zone 1/21 certification affirms suitability for hazardous locations, expanding usable environments without compromising safety. The inclusion of 1 x M20 plastic cable glands and 1 x M20 screw plug simplifies field wiring and sealing, while wall mounting supports efficient space utilization in control rooms and utility corridors.
Get a Quick Quote for a Eaton Crouse-Hinds 12191024021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191024021?
Enquire Now
FAQs
Installation is designed for wall mounting in controlled industrial spaces. Use the provided M20 plastic cable glands and M20 screw plug for sealed entry. Ensure IP66-rated sealing is maintained, and provide clearance for the 380.5 mm length, 175 mm height, and 76 mm width. Confirm Zone 1/21 compliance for the installation area and maintain required clearances around the sign for visibility and maintenance access.
The sign operates on 12-24 Vdc with a frequency range of 50-60 Hz. It uses LED illumination with white letter color for high-contrast visibility. The compact 2 kg unit is designed for stable operation in hazardous environments, delivering long life and reduced energy consumption, which translates to lower operating costs over the product lifecycle.
Yes. The model supports IECEx/ATEX certification for hazardous locations, specifically Zone 1 (gas) and Zone 21 (dust). Combined with IP66 ingress protection and ISO 7010 pictograms, it is engineered to maintain reliable visibility and compliance in chemical plants, oil and gas facilities, and other classified areas.
The sign adheres to ISO 7010 for standardized exit pictograms and Arrowhead right designation for unambiguous egress direction. It holds IECEx/ATEX certification for hazardous locations and IP66 protection, ensuring compliance across global markets and enabling safe evacuation signaling in demanding environments.
LED technology delivers extended service life with lower energy consumption, reducing replacement intervals and energy costs. The rugged polycarbonate housing supports durability in harsh environments, lowering downtime. Wall-mounted installation saves space and simplifies retrofits in existing facilities, contributing to a favorable return on investment through decreased maintenance and improved evacuation efficiency.
