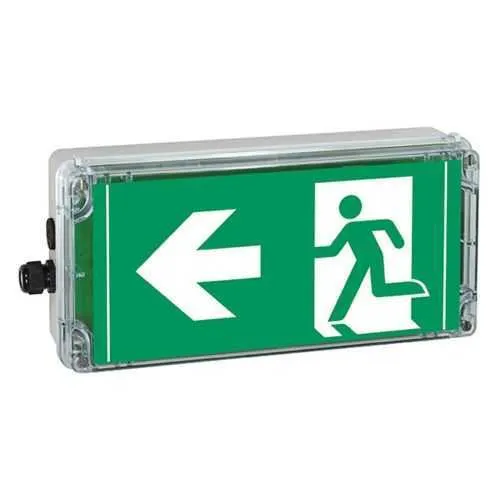

Eaton 12191024022 EXIT Sign - IP66, IECEx/ATEX Zone 21
Part Number: 12191024022
Quick Summary
The Eaton 12191024022 EXIT Sign is a rugged, 24V LED exit indicator designed for hazardous locations in industrial facilities. In demanding environments, unreliable signage can delay evacuations and complicate safety inspections, costing time and money. This unit carries IECEx/ATEX certification for Zone 21/1, IP66 ingress protection, and ISO 7010 compliant pictograms, ensuring regulatory alignment and visibility in harsh conditions. Wall-mounted and built with polycarbonate, it withstands vibration, moisture, and chemicals common in process plants. Its 12-24 Vdc input and concealed M20 gland options deliver flexible installation, while white lettering on a gray housing delivers clear, compliant signaling that reduces maintenance cycles and supports safer operations.
Product Information
Extended Description
12191024022 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 24V exit sign, Arrowhead left, Gray, LED, White letter color, Polycarbonate, Wall mount, Cover with silk-screen pictogram (arrow 9h), 1 x M20 plastic cable glands, 1 x M20 screw plug, ISO 7010, 12-24 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 24V exit sign
Catalog Number
12191024022
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4251510790349
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 9h)
Voltage rating
12-24 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature: LED illumination with a 12-24 Vdc input. Business Impact: Lower energy consumption and longer service life reduce operating costs and maintenance frequency. Application: Suitable for continuous safety signaling across plants, warehouses, and classified facilities. Feature: IP66 ingress protection and IECEx/ATEX Zone 21/1 certification. Business Impact: Ensures compliance and reliable operation in harsh environments, minimizing equipment downtime. Application: Offshore rigs, chemical plants, and other hazardous locations where environmental sealing matters. Feature: ISO 7010 pictogram with an Arrowhead left designation. Business Impact: Standardized, instantly recognizable exit signaling that improves evacuation speed and reduces confusion. Application: Facilities governed by ISO 7010 and ANSI-style safety communications. Feature: Wall-mount design with polycarbonate housing. Business Impact: Easy installation, durable construction, and vandal-resistant visibility. Application: Retrofit or new-build installations in restricted spaces where robust signage is required. Feature: Included M20 cable glands and silk-screen pictogram cover (arrow 9h). Business Impact: Flexible wiring and clear pictograms reduce commissioning time and support compliant installations. Application: Liquid-tight, cable-entry-compliant installations in hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds 12191024022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191024022?
Enquire Now
FAQs
Plan for a wall-mounted placement with unobstructed line-of-sight to the sign. Utilize the provided M20 plastic cable glands and the M20 screw plug for a secure, cable-entry solution. The unit’s IP66 rating and Zone 21/1 certification mean it tolerates dust, water exposure, and classified environments, reducing the need for frequent maintenance or replacements.
The sign operates on 12-24 Vdc with a frequency rating of 50-60 Hz, suitable for standard industrial power systems. LED technology delivers energy efficiency and long life. Wiring should follow local electrical codes, and the unit’s compact footprint (380.5 mm L × 175 mm H × 76 mm W) supports flexible installation in constrained spaces.
Yes, the product uses ISO 7010-compliant pictograms and is designated with an Arrowhead left. This standard ensures universal, quickly recognizable evacuation cues. In practice, Arrowhead left directs occupants to the left-hand exit path, improving evacuation times in emergencies and aiding regulatory audits.
IP66 provides robust protection against dust and powerful water jets, which is crucial for washdown zones and outdoor encounter in harsh environments. IECEx/ATEX Zone 21 certification confirms suitability for hazardous areas involving ignitable atmospheres. Together, these certifications help ensure compliant operation, reduce risk, and support safer, uninterrupted signaling in your plant.
LED exit signs offer extended service life with lower energy consumption than traditional lighting, translating to reduced maintenance cycles and fewer conduit entries for replacements. With reliable operation in hazardous locations, facilities can minimize downtime during routine inspections, improve safety compliance, and realize a favorable ROI through lower total cost of ownership.
