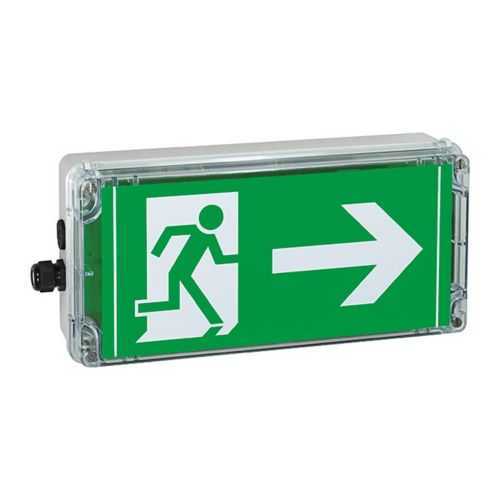

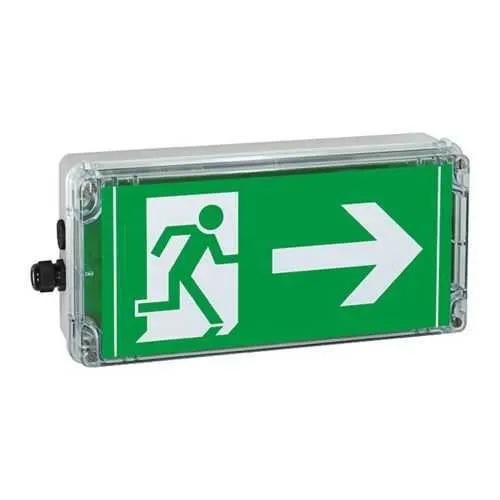

Eaton Crouse-Hinds 12191024101 EXIT Sign - IP66 LED
Part Number: 12191024101
Quick Summary
The Eaton Crouse-Hinds EXIT Sign is a rugged 24V LED emergency sign designed for hazardous industrial locations. In harsh plants, traditional signs can fail due to dust, moisture, or rapid temperature shifts, compromising safety and compliance. This unit carries IECEx/ATEX certifications for Zone 1 and Zone 21, and IP66 ingress protection, ensuring reliable operation in demanding environments. With a polycarbonate gray housing and a wall-mount design, installation is straightforward and maintenance-friendly. By delivering clear white lettering and an arrowhead right designation, it supports fast occupant evacuation while reducing energy costs through LED technology and long-life operation and simplifies ongoing asset management.
Product Information
Extended Description
12191024101 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 24V exit sign, Arrowhead right, Gray, LED, White letter color, Polycarbonate, Wall mount, Cover with silk-screen pictogram (arrow 3h), 2 x M20 metal thread, DIN 4844, 12-24 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 24V exit sign
Catalog Number
12191024101
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4251958121897
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Type
DIN 4844
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 3h)
Voltage rating
12-24 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
LED illumination paired with a wide input range reduces operating costs in your facility. The EXIT sign operates from 12-24 Vdc at 50-60 Hz, with a robust LED engine that delivers bright, white lettering for fast recognition. In practice, this means fewer lamp replacements, lower power draw, and predictable performance in temperature swings common in industrial plants. Rugged housing and environmental protection drive down maintenance burdens. The gray polycarbonate housing is built to withstand dusty, wet, and wash-down conditions, with an IP66 rating that keeps contaminants out. This combination is especially valuable in hazardous locations such as chemical plants, refineries, and offshore environments where downtime is costly. Certified for hazardous locations, the unit carries IECEx/ATEX Zone 1 and Zone 21 approvals, supporting safe operation in classified areas. The object is designed for hazardous/classified locations, enabling compliant evacuation signage without a separate control room or cabinet changes. These protections align with industry standards while facilitating regulatory audits and reliability reporting. Easy installation is enabled by DIN 4844 compatibility and two M20 metal threaded entries. Wall mounting simplifies retrofits and reduces enclosure integration time, while standardization with DIN 4844 keeps wiring trays and brackets compatible across sites. This design minimizes field adjustments and accelerates commissioning in new builds or expansions. The cover includes silk-screen pictogram with an arrow 3h, and the Arrowhead right designation provides clear exit guidance. White letters on a gray housing ensure legibility from a distance, and the overall footprint supports compact egress layouts. These features help meet safety codes while preserving sight lines in busy plant corridors.
Get a Quick Quote for a Eaton Crouse-Hinds 12191024101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191024101?
Enquire Now
FAQs
Proper installation starts with confirming power is removed and selecting a secure wall mounting location. Use the two M20 metal threads for conduit entries and follow DIN 4844 mounting guidelines. Route 12-24 Vdc supply with appropriate protection, and ensure IP66-rated seals are intact after mounting. This approach minimizes ingress risk and supports compliant wiring in Zone 1/21 environments.
IECEx/ATEX certification covers Zone 1 (gas) and Zone 21 (dust) classified locations, while IP66 protects against dust and powerful water jets. Together, these approvals support regulatory compliance for escape signage in petrochemical, mining, and off-shore facilities, and simplify audits by providing verifiable standards across maintenance cycles and asset registers.
Yes, the unit operates on 12-24 Vdc at 50-60 Hz, standard for many plant LED signs. The two M20 knockouts and DIN 4844 mounting enable straightforward integration into common electrical cabinets and wall enclosures. However, ensure any power supply and wiring meet hazardous-location wiring regulations and use appropriate sealing to preserve IP66 integrity.
LED technology provides long life with reduced lumen depreciation, translating to fewer lamp replacements and lower maintenance visits in hazardous areas. The rugged polycarbonate housing resists impact and chemical exposure, and the sign's compact 2 kg weight eases handling during servicing. The result is lower total cost of ownership and improved system availability in critical safety signage.
Chemical plants, oil and gas facilities, mining operations, and wash-down zones are ideal for this EXIT sign. Its IP66 rating and IECEx/ATEX Zone 1/21 certifications support safe operation in harsh environments, while wall mounting and standard DIN sizing facilitate retrofits and new constructions. In all cases, it helps ensure clear egress visibility and regulatory compliance without costly enclosure alterations.
