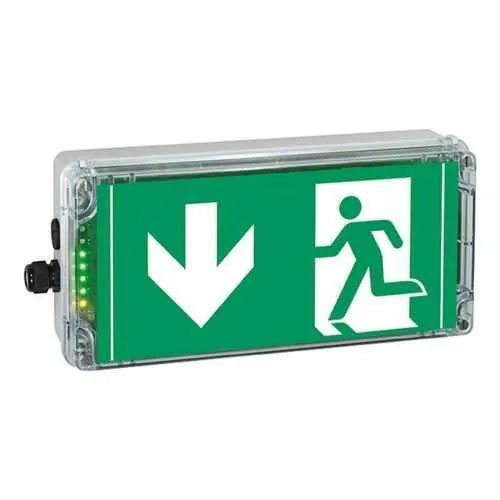

Eaton 12191030023 EXIT N exit sign - IP66 Rated LED
Part Number: 12191030023
Quick Summary
EXIT N exit sign delivers reliable emergency indication and illumination for hazardous locations in industrial facilities. In demanding environments, maintenance and compliance can be costly and time-consuming. Rated IECEx/ATEX for Zone 21/1 with IP66 protection ensures safe operation in hazardous areas, while ISO 7010 pictograms support clear signage. The design supports wall mounting, universal voltage options, and a self-contained battery, reducing wiring complexity and maintenance downtime while delivering long-life LED performance and durable polycarbonate housing.
Product Information
Extended Description
12191030023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT N exit sign, Arrow downward, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ silk-screen pictogram (arrow 6h), battery, 1 x M20 plastic cable gland, 1 x M20 screw plug, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT N exit sign
Catalog Number
12191030023
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.1 kg
EAN
4250217484933
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 6h), self-contained battery system
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT N Nonmetallic LED Exit Signs operating instructions
Feature LED illumination provides low energy consumption and long service life, translating to lower operating costs and less frequent maintenance in demanding facilities. Benefit The reduced power draw and extended LED life cut energy spend and downtime, improving uptime in hazardous locations. Application Ideal for chemical plants, refineries, and mining sites where reliable egress signaling is critical. Feature IP66 rugged enclosure protects against dust and water ingress in harsh environments, safeguarding visibility and safety. Benefit This resilience reduces replacement cycles and service calls in marine, offshore, and outdoor installations. Application Suitable for wall-mounted installations in zones classified for hazardous locations, ensuring code-compliant exits. Feature IECEx/ATEX Zone 21/1 certification delivers compliance with global safety standards. Benefit Enables fast, compliant deployment across multi-site operations. Application Useful in facilities requiring ISO 7010 arrow-down pictograms for universal interpretation. Feature Self-contained battery backup supports continued operation during mains outages, minimizing risk of unlit exits. Benefit Improves safety continuity, reduces wiring complexity, and lowers total cost of ownership in critical infrastructure projects.
Get a Quick Quote for a Eaton Crouse-Hinds 12191030023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191030023?
Enquire Now
FAQs
The EXIT N sign is designed for wall-mount installation in hazardous locations. It supports 110-277 Vac or 110-250 Vdc input at 50-60 Hz and includes 1 x M20 plastic cable gland plus a plug for sealing. Ensure mounting on a suitable wall surface, observe clearance for battery access, and follow local safety codes. The self-contained battery system minimizes wiring and simplifies maintenance.
This sign carries IECEx/ATEX certifications for Zone 21 and Zone 1 locations, with an IP66 ingress protection rating. It uses ISO 7010 compliant pictograms and is intended for hazardous/classified locations. Such certifications support regulatory compliance for chemical plants, refineries, and other demanding environments.
Yes. With Zone 21/1 suitability, IP66 protection, and a rugged polycarbonate housing, the EXIT N sign is well suited for oil and gas facilities, chemical plants, and mining operations. Its wall-mount design, LED efficiency, and self-contained battery backup help ensure visibility and reliability even in harsh outdoor or indoor zones.
The unit complies with ISO 7010 and IECEx/ATEX standards, displaying an arrow-down pictogram for exit indication. The pictogram is silk-screened on the cover for clear visibility, supporting universal interpretation across multilingual workforces in global facilities.
The LED source and self-contained battery backup deliver long life with minimal maintenance, reducing replacement cycles and downtime. Universal voltage input simplifies procurement and installation across multi-site facilities, while rugged IP66 rating lowers replacement and service costs in harsh environments, yielding a favorable total cost of ownership.
