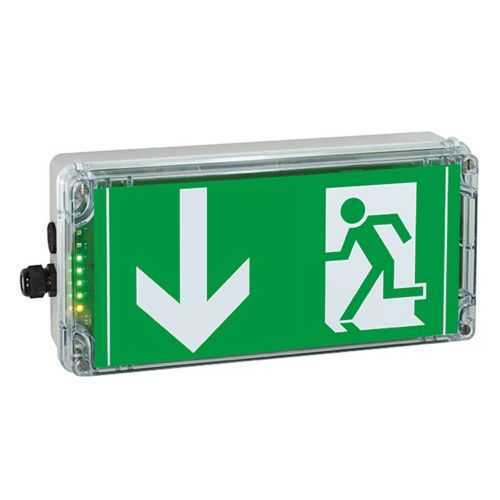

Eaton 12191030103 Exit Sign - IECEx/ATEX Zone 1/21
Part Number: 12191030103
Quick Summary
Eaton 12191030103 Exit Sign is an LED wall-mounted emergency indicator ideal for hazardous locations. Facilities facing regulatory pressure require signage that remains visible, reliable, and compliant under harsh conditions. Certified to IECEx/ATEX for Zone 1 and Zone 21 with IP66 ingress protection and a DIN 4844 mounting standard, this exit sign meets demanding industrial safety standards. The unit features a self-contained battery system and a silk-screen pictogram cover for clear directionality, reducing maintenance calls and downtime. With its durable polycarbonate housing and gray finish, it delivers long service life in petrochemical, mining, and other high-risk environments, while supporting compliant, visible emergency signaling across facilities.
Product Information
Extended Description
12191030103 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT N exit sign, Arrowhead downwards, Gray, LED, White letter color, Polycarbonate, Wall mount, Cover with silk-screen pictogram (arrow 6h), battery, 2 x M20 metal thread, DIN 4844, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT N exit sign
Catalog Number
12191030103
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.1 kg
EAN
4250217412752
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
DIN 4844
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 6h), self-contained battery system
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT N Nonmetallic LED Exit Signs operating instructions
Feature LED lamp type delivers long life and low maintenance, reducing operating costs and downtime. Business Impact The robust LED solution minimizes replacement cycles and energy consumption in continuous operation applications. Application Ideal for oil, gas, and chemical plants where visibility must be maintained during power loss. Feature IP66 ingress protection and IECEx/ATEX Zone 1/21 certifications ensure safe operation in dust, water, and explosive atmospheres. Business Impact This compliance reduces the risk of nonconformance penalties and supports safer commissioning in hazardous locations. Application Suitable for walls in industrial facilities with 380.5 mm length, 175 mm height, and 76 mm width, designed for easy retrofit or new installations. Feature Self-contained battery system and silk-screen pictogram cover provide reliable operation during outages and clear direction, cutting service calls. Business Impact Improves uptime and safety metrics, aiding regulatory audits. Application Compatible with 110-277 VAC or 110-250 VDC supplies and 50-60 Hz frequency, enabling flexible installation across mixed electrical systems. Feature DIN 4844 mounting and 2 x M20 metal thread entries simplify cabling and mounting, reducing installation time. Business Impact Faster deployment and fewer field modifications, translating to lower total cost of ownership. Application Wall mounting in hazardous/classified locations is supported by polycarbonate housing and gray finish for durable, tamper-resistant signage.
Get a Quick Quote for a Eaton Crouse-Hinds 12191030103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191030103?
Enquire Now
FAQs
Mount the sign on a wall using the DIN 4844 mounting standard and 2 x M20 metal thread entries. Ensure power is supplied within 110-277 VAC or 110-250 VDC and follow the included installation instructions. The IP66 rating protects against dust and water ingress, making it suitable for hazardous environments.
The EXIT N is IECEx/ATEX certified for Zone 1 and Zone 21, with IP66 ingress protection, designed for Hazardous/Classified Locations. This combination supports compliance in petrochemical, mining, and similar sectors.
Lamp type is LED; voltage rating is 110-277 VAC or 110-250 VDC; frequency 50-60 Hz. Dimensions are 380.5 mm (length) x 175 mm (height) x 76 mm (width), and the unit weighs 2.1 kg.
Yes. With IECEx/ATEX Zone 1/21 certification and IP66 protection, plus a durable polycarbonate housing, it is well-suited for petrochemical, petrochemical processing plants, mining operations, and other high-risk environments requiring compliant emergency signage.
The self-contained battery system supports emergency operation during outages, reducing external wiring needs. The LED lighting provides long life and low maintenance, while the silk-screen pictogram ensures clear exit direction, contributing to lower maintenance costs and better ROI over the sign’s lifecycle.
