Eaton Crouse-Hinds 12191030113 EXIT N - IP66/IECEx
Part Number: 12191030113
Quick Summary
EXIT N exit sign from Eaton Crouse-Hinds provides reliable emergency illumination for industrial facilities. In hazardous environments, maintenance and power outages can halt production, so rugged reliability is essential. It carries IECEx/ATEX certifications for Zone 1 and Zone 21, plus EN 1838 compliance for safe egress in hazardous locations. With a 380.5 mm body and wall-mount design, it fits tight installations while delivering consistent visibility. Designed for 110-277 Vac or 110-250 Vdc inputs, it supports global deployment and retrofit programs, making it a versatile choice for international projects.
Product Information
Extended Description

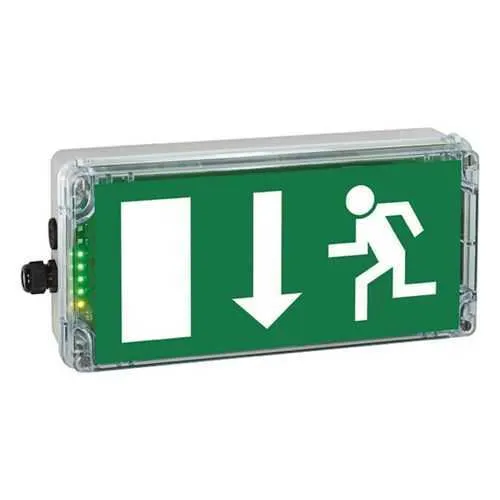

12191030113 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT N exit sign, Arrowhead downwards, Gray, LED, White letter color, Polycarbonate, Wall mount, Cover with silk-screen pictogram (arrow 6h), battery, 2 x M20 metal thread, EN 1838, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT N exit sign
Catalog Number
12191030113
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.5 kg
EAN
4250217408311
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
EN 1838
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 6h), self-contained battery system
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT N Nonmetallic LED Exit Signs operating instructions
LED illumination with a self-contained battery ensures emergency operation during mains loss, reducing downtime and improving safety on production lines. This feature translates to tangible business value by maintaining visibility during outages and meeting strict safety standards for hazard-prone facilities. The IP66 polycarbonate housing protects against dust and water ingress, extending service life in dirty, dusty, or wet environments while minimizing maintenance cycles. The ability to wall-mount with 2 x M20 metal threads provides installation flexibility and conduit-entry options, speeding up field setup and enabling cleaner code-compliant installations. A silk-screen pictogram cover (arrow 6h) enhances readability, supporting compliant egress signaling under EN 1838 guidelines. Combined with 50-60 Hz operation and LED efficiency, this unit reduces energy consumption and operating costs over traditional signage. The IECEx/ATEX Zone 1/21 rating delivers regulatory confidence for hazardous locations, lowering risk of compliance delays on projects. In retrofit scenarios, its long 380.5 mm form factor aligns with standard mounting footprints, while its 2.5 kg weight offers manageable handling by technicians.
Get a Quick Quote for a Eaton Crouse-Hinds 12191030113
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12191030113?
Enquire Now
FAQs
The EXIT N 12191030113 is designed for wall mounting with two 20 mm metal entry points (2 x M20). This provides flexible conduit entry, easy integration with standard electrical boxes, and straightforward retrofit in existing installations without altering structural elements.
It supports 110-277 Vac and 110-250 Vdc input with 50-60 Hz frequency. The unit includes a self-contained battery system that powers the sign during mains loss, ensuring continuous visibility for critical egress paths and reducing maintenance calls during outages.
Yes. It is rated for hazardous/classified locations with IECEx/ATEX certification for Zone 1 and Zone 21, IP66 protection, and EN 1838 compliance, making it appropriate for chemical plants, refineries, and other aggressive industrial environments.
The exit sign measures 380.5 mm in length, 175 mm in height, and 76 mm in width, with a weight of 2.5 kg. These specs help ensure alignment with existing mounting spaces and allow for precise enclosure planning.
LED efficiency lowers energy use and reduces replacement cycles, while the self-contained battery ensures operation during outages, decreasing downtime. Its compliance with IECEx/ATEX and EN 1838 reduces regulatory risk and supports longer service intervals in hazardous facilities.
