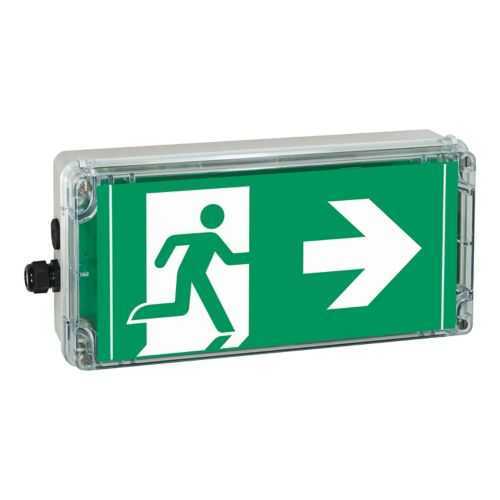

Eaton Crouse-Hinds 12193000022 EXIT Sign - IP66 Zone 22
Part Number: 12193000022
Quick Summary
EXIT sign from Eaton Crouse-Hinds provides high-visibility emergency wayfinding for hazardous industrial environments. In demanding plants, unreliable lighting and minimal ingress protection create safety and downtime challenges. This unit carries IP66 ingress protection, IECEx/ATEX Zone 22 certification, and ISO 7010 compliant pictograms, ensuring reliable visibility even in dust, moisture, or hazardous locations. Built for wall mounting, its LED illumination delivers long life with low energy consumption, reducing maintenance costs over time. Dual voltage operation (110-277 Vac or 110-250 Vdc) simplifies retrofits across existing infrastructure, while the gray polycarbonate housing withstands harsh conditions. The combination of rugged design, precise signage, and industry-standard compliance supports safer operations and faster regulatory approvals, making it a practical choice for industrial facilities and chemical processing sites.
Product Information
Extended Description
12193000022 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 2 exit sign, Arrowhead left, 50-60 Hz, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ silk-screen pictogram (arrow 9h), 1 x M20 plastic cable gland, 1 x M20 screw plug, ISO 7010, 110-277Vac, 110-250Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 2 exit sign
Catalog Number
12193000022
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4250959910721
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX hazardous rating
Zone 22 Zone 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 9h)
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs operating instructions
Feature LED lamp type → Business Impact: Long-life, low wattage illumination reduces energy use and maintenance cycles. Application: Everyday harsh-environment signaling in hazardous locations. Feature IP66 rating → Business Impact: Superior ingress protection minimizes dust and water ingress, lowering failure risk. Application: Outdoor or wash-down areas in chemical plants and refineries. Feature IECEx/ATEX Zone 22 certification → Business Impact: Regulatory compliance simplifies site approvals and reduces commissioning time. Application: Classified locations across global facilities. Feature ISO 7010 arrowhead left designation → Business Impact: Clear, standardized evacuation cues reduce response time during incidents. Application: Industrial plants with complex layouts. Feature dual voltage (110-277 Vac, 110-250 Vdc) and 50-60 Hz → Business Impact: Flexible power compatibility lowers retrofit costs and spare-part inventory. Application: Mixed electrical infrastructures and retrofit projects. Feature wall mounting with M20 glands and silk-screen pictogram cover → Business Impact: Fast, secure installation with clean signage presentation. Application: Retrofits and new-builds in demanding environments. Feature polycarbonate housing in gray finish → Business Impact: Tough, impact-resistant enclosure that resists corrosion and wear. Application: Harsh environments, wash-down zones, and chemical processing facilities.
Get a Quick Quote for a Eaton Crouse-Hinds 12193000022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12193000022?
Enquire Now
FAQs
The unit is wall-mounted and designed for harsh environments. It uses 1 x M20 plastic cable gland and 1 x M20 screw plug, includes a cover with silk-screen pictogram, and meets IECEx/ATEX Zone 22 requirements with IP66 protection to withstand dust and moisture during installation and operation.
This exit sign uses ISO 7010 pictograms with a left-pointing arrow and is rated for Hazardous/Classified Locations. It features IEC/IECEx/ATEX Zone 22 certification and IP66 ingress protection, aligning with global safety and installation regulations for hazardous environments.
Yes. It supports voltage ratings of 110-277 Vac and 110-250 Vdc, with a frequency range of 50-60 Hz, enabling flexible deployment across facilities with mixed power infrastructure.
Yes. The IP66 enclosure and polycarbonate housing are designed for challenging chemical and wash-down environments, providing durable visibility and long service life in hazardous locations.
LED signage delivers longer life and lower energy consumption than traditional lighting, reducing maintenance frequency and power costs while improving emergency visibility, which translates to lower total cost of ownership in industrial facilities.
