Eaton 12193020022 EXIT Sign - LED IP66 Zone 2/22
Part Number: 12193020022
Quick Summary

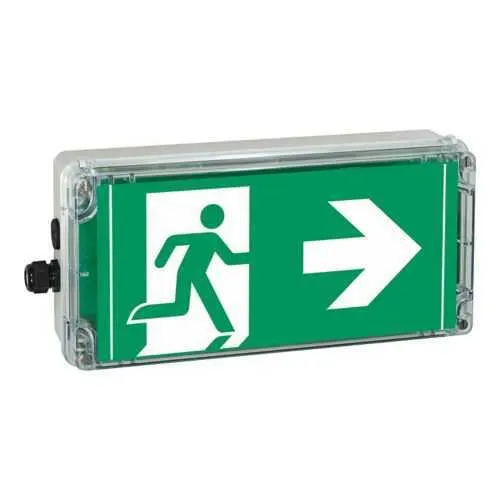

Eaton's Crouse-Hinds EXIT 2 V-CG-S exit sign provides clear, reliable emergency egress indication for hazardous-area facilities. In industrial environments, unreadable or damaged signage can hinder evacuation and complicate compliance audits. This unit carries IP66 ingress protection and IECEx/ATEX Zone 2 and Zone 22 ratings, alongside ISO 7010 pictograms for universal understanding. Its LED efficiency reduces energy use and maintenance while the wall-mount design simplifies installation in confined spaces, delivering safer operations and streamlined procurement for safety-critical projects.
Product Information
Extended Description
12193020022 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 2 V-CG-S exit sign, Arrowhead left, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 9h), monitoring, 1 x M20 plastic cable glands, 1 x M20 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 2 V-CG-S exit sign
Catalog Number
12193020022
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250959910967
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX hazardous rating
Zone 2 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead left
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 9h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
LED Lamp Type is paired with high-efficiency operation to reduce energy consumption and extend service life, delivering lower total cost of ownership while maintaining bright, legible output in challenging conditions. This translates to measurable reliability gains on the line and safer egress in emergencies. IP66 rating and IECEx/ATEX Zone 2/Zone 22 approval protect against dust ingress and water exposure, ensuring consistent performance in chemical, mining, or offshore environments and easing regulatory compliance. Arrowhead left with ISO 7010 designation ensures quick, unambiguous direction during evacuations, speeding response times and minimizing risk in high-stakes scenarios. Wall mounting on polycarbonate Gray housing offers robust impact resistance and straightforward installation, reducing downtime and enabling faster retrofit in existing facilities. The monitoring module supports proactive fault detection and signaling integrity, while the cover with pictogram (arrow 9h) guarantees clear visibility from multiple angles, enhancing ongoing maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds 12193020022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12193020022?
Enquire Now
FAQs
Installation in hazardous locations begins with confirming zone classification (Zone 2/Zone 22) and IP66 protection. Mount the unit on a suitable wall surface using the provided M20 glands for power ingress, connect 220-254 VAC or 195-250 VDC within 50-60 Hz, and attach the cover with pictogram. Ensure the monitoring module is configured for remote status and perform a functional test after wiring.
This model operates at 220-254 VAC and 195-250 VDC with a frequency range of 50-60 Hz. It uses LED lighting for high efficiency, includes one M20 plastic cable gland and one M20 screw plug, and is designed for wall mounting. Compliance with ISO 7010 is built-in, with toggled pictograms and monitoring to support ongoing electrical safety audits.
Yes. The EXIT 2 V-CG-S is rated for Zone 2 and Zone 22 hazardous locations, offering IECEx/ATEX compliance and IP66 ingress protection, which ensures safe operation in dust-prone and potentially explosive atmospheres found in chemical plants, offshore platforms, and mines. This makes it a reliable choice for regulatory-constrained sites.
The sign carries IEC-based standards, IECEx/ATEX hazardous ratings for Zone 2 and Zone 22, and ISO 7010 for its pictograms. These certifications matter because they verify performance in hazardous environments, ensure easy cross-border acceptance, and simplify safety documentation and audits by aligning with global evacuation signage requirements.
The built-in monitoring module provides fault detection and status indication, reducing in-person inspections and enabling predictive maintenance. This leads to lower maintenance labor costs, reduced downtime during outages, and a faster path to return on investment, especially in high-demand facilities where signaling reliability directly affects safety and regulatory compliance.
