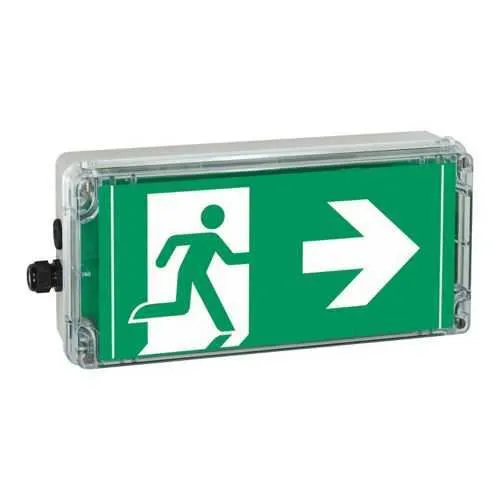

Eaton 12193020023 EXIT Sign - IP66
Part Number: 12193020023
Quick Summary
EXIT Sign from Eaton 12193020023 provides reliable emergency indication for industrial facilities. When mains power is interrupted, clear visibility and fast egress remain critical, and this sign helps meet those needs with rugged durability. It carries IP66 protection, IECEx/ATEX hazardous location ratings (Zone 2/Zone 22), and ISO 7010 compliant pictograms to support compliance across global installations. Its wall-mount design and LED efficiency reduce maintenance cycles and energy costs, delivering reliable performance in demanding environments. This sign integrates seamlessly with existing safety systems while offering clear evacuation guidance and long-term return on investment for facilities operating in hazardous locations.
Product Information
Extended Description
12193020023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 2 V-CG-S exit sign, Arrowhead down, Gray, LED, White letters, Polycarb, Wall mt, Cover w/ pictogram (arrow 6h), monitoring, 1 x M20 plastic cable glands, 1 x M20 screw plug, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 2 V-CG-S exit sign
Catalog Number
12193020023
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.2 kg
EAN
4250959910974
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX hazardous rating
Zone 2 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
ISO 7010
Trade size
1 x M20 plastic cable glands, 1 x M20 screw plug
Special features
Includes cover with silk-screen pictogram (arrow 6h), monitoring module
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature: LED lamp technology delivers high brightness with low power consumption → Business Impact: Extends battery life and reduces energy costs while maintaining reliable visibility → Application: Continuous-operation industrial sites seeking energy-efficient emergency signage. Feature: IP66 ingress protection and rugged polycarbonate housing → Business Impact: Superior dust and water resistance lowers downtime and replacement needs → Application: Wet, dusty, or outdoor plant areas such as chemical processing and steel mills. Feature: IECEx/ATEX hazardous location rating (Zone 2/Zone 22) → Business Impact: Enables compliant installation in classified locations, reducing regulatory risk → Application: Chemical plants, oil and gas facilities, offshore platforms. Feature: Screen cover with silk-screen pictogram and built-in monitoring module → Business Impact: Ensures visibility with standardized ISO 7010 symbols and enables monitoring for proactive maintenance → Application: Critical safety zones where rapid verification of signage status is required. Feature: Wall mounting with M20 cable glands and plug → Business Impact: Simplifies installation and cable management, shortening project timelines → Application: Retrofit or new-build installations in constrained spaces. Feature: Exit designation Arrowhead downwards and white lettering on gray housing → Business Impact: Unambiguous evacuation guidance improves evacuation times and compliance → Application: Industrial facilities needing clear directional signage in emergency scenarios.
Get a Quick Quote for a Eaton Crouse-Hinds 12193020023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12193020023?
Enquire Now
FAQs
Installation should follow standard IECEx/ATEX procedures for Zone 2/22 areas. Mount the unit on a suitable wall, use the included M20 cable glands and plug for weatherproofing, and ensure wiring complies with local electrical codes. The wall-mount design and gland entries simplify retrofits and new installations alike.
Plan for 220-254 Vac or 195-250 Vdc operation with a 50-60 Hz frequency. The LED lamp provides reliable illumination with low power draw, supporting energy efficiency targets and reduced operational costs over the product life.
Yes. The unit carries IECEx/ATEX hazardous location ratings for Zone 2 and Zone 22, enabling safe use in classified areas such as chemical plants and offshore environments while maintaining standard ISO 7010 pictograms.
The sign meets ISO 7010 pictogram standards, IP66 ingress protection, and IECEx/ATEX hazardous location ratings, ensuring compliance with global safety and evacuation signage requirements for industrial facilities.
The integrated monitoring module supports status checks and preventive maintenance planning, while LED technology delivers long life and low energy use. These factors reduce maintenance frequency and downtime, delivering faster ROI in facilities with rigorous safety and uptime goals.
