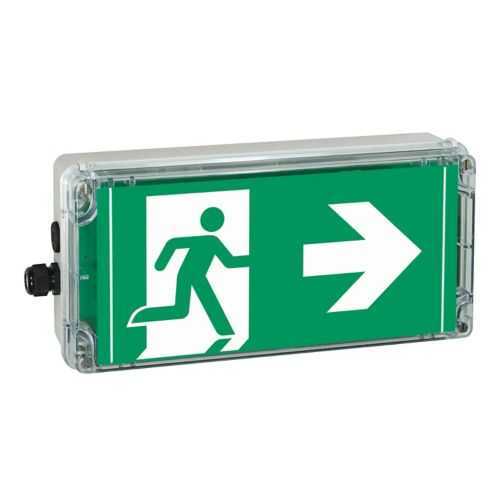

Eaton EXIT 2 24V Sign 12193024121 - Zone 22 IP66
Part Number: 12193024121
Quick Summary
EXIT 2 24V exit sign from Eaton provides clear egress indication in hazardous industrial environments. In harsh facilities, signs can fail due to moisture, dust, or insufficient protection, delaying safe evacuation. This model carries IECEx/ATEX Zone 22 Zone 2 hazardous location ratings, IP66 ingress protection, and ISO 7010-compliant pictograms for reliable compliance. LED efficiency reduces energy use and maintenance, while the polycarbonate housing resists impact. Wall mounting and a compact footprint enable rapid deployment across busy sites, with 2 x M20 gland access supporting flexible wiring. Together these features deliver safer, more reliable wayfinding without disrupting operations or increasing lifecycle costs.
Product Information
Extended Description
12193024121 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 2 24V exit sign, Arrowhead right, 50-60 Hz, Gray, LED, White letter color, Polycarbonate, Wall mount, Includes cover with silk-screen pictogram (arrow 3h), 2 x M20 metal thread, ISO 7010, 12-24 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 2 24V exit sign
Catalog Number
12193024121
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4251958136907
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX hazardous rating
Zone 22 Zone 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Type
ISO 7010
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 3h)
Voltage rating
12-24 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature → Business Impact → Application: LED lamp technology delivers longer life and lower power consumption, reducing maintenance intervals and energy costs in continuous signaling applications. This translates to lower total cost of ownership for large facilities and critical safety zones where signs run 24/7. Application: manufacturing floors, chemical plants, and offshore platforms where dependable visibility is essential. Feature → Business Impact → Application: 12-24 Vdc operation with 50-60 Hz compatibility enables flexible power planning and easier integration with existing control systems, minimizing wiring complexity and retrofit costs. Application: retrofit projects or new builds requiring standard DC supply. Feature → Business Impact → Application: IP66 protection and hazardous location rating (Zone 22 Zone 2) deliver reliable operation in dust, water splash, and explosive environments, reducing downtime and replacement costs. Application: washdown areas, outdoor installations, and hazardous process zones. Feature → Business Impact → Application: ISO 7010 compliant arrow pictograms and ISO standard designation ensure universal interpretation, speeding evacuations and improving regulatory compliance. Application: safety signage across multinational sites. Feature → Business Impact → Application: Polycarbonate gray housing offers impact resistance and durability in bustling industrial spaces, extending service life in harsh environments. Application: factories, warehouses, and remote facilities. Feature → Business Impact → Application: Wall-mount design with 2 x M20 metal threads and a slim profile simplifies installation and scalable deployment, enabling quick audits and consistent signage across rooms. Application: greenfield and brownfield projects seeking standardized exit signaling.
Get a Quick Quote for a Eaton Crouse-Hinds 12193024121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12193024121?
Enquire Now
FAQs
Install the EXIT 2 24V exit sign on a wall using the 2 x M20 metal threads. Ensure the mounting location provides a clear line of sight and maintains IP66 protection. Designed for Zone 22 Zone 2 classifications, plan wiring with a 12-24 Vdc supply and 50-60 Hz input, and isolate power during maintenance to meet safety protocols.
The sign operates from 12-24 Vdc with a frequency rating of 50-60 Hz. It uses LED illumination for high efficiency and long life, reducing energy usage and maintenance needs in continuous-safety applications. Ensure compatible DC power supply, appropriate wiring, and compliance with local electrical codes during installation.
Yes. The EXIT 2 24V sign features ISO 7010-compliant pictograms and IEC-based standards alignment, supporting universal interpretation and regulatory compliance across multinational sites. This makes it suitable for industries requiring standardized safety signage in hazardous environments.
The unit measures 380.5 mm in length, 175 mm in height, and 76 mm in width, with a weight of 2 kg. These dimensions are important for enclosure fit, mounting clearances, and ensuring the sign aligns with sightlines and maintenance access in confined spaces.
LED illumination provides long life and lower energy consumption, reducing replacement intervals and maintenance labor in hazardous zones. The IP66 ingress protection and Zone 22/Zone 2 rating minimize the risk of dust or water ingress, supporting reliable operation in harsh environments and lowering total cost of ownership over the sign’s lifetime.
