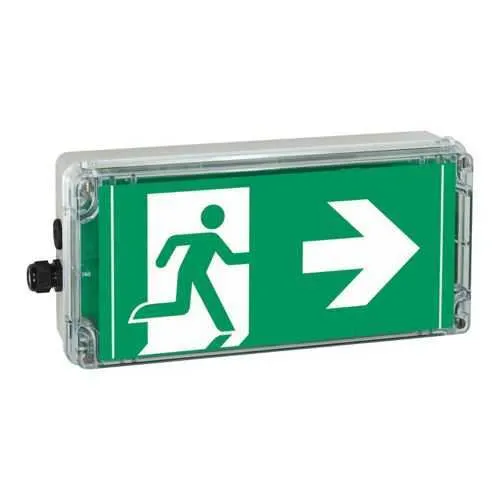

Eaton 12193024123 Exit Sign - LED 12-24V IP66
Part Number: 12193024123
Quick Summary
Eaton's 12193024123 exit sign provides reliable LED emergency signaling for industrial facilities. In hazardous or challenging environments, visibility, reliability, and fast service are critical to minimizing downtime and protecting personnel. With IECEx/ATEX Zone 2 and Zone 22 approvals, IP66 ingress protection, and ISO 7010 compliant pictograms, it meets demanding industry standards. The unit is designed for wall mounting and 12-24 Vdc operation, which simplifies integration with existing power rails and controls. By combining rugged construction with compliant labeling, this sign delivers long-term value through reduced maintenance needs and consistent regulatory alignment in industrial lighting and safety signage programs.
Product Information
Extended Description
12193024123 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 2 24V exit sign, Arrowhead downwards, 50-60 Hz, Gray, LED, White letter color, Polycarbonate, Wall mount, Includes cover with silk-screen pictogram (arrow 6h), 2 x M20 metal thread, ISO 7010, 12-24 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 2 24V exit sign
Catalog Number
12193024123
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2 kg
EAN
4251958137928
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX hazardous rating
Zone 2 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Type
ISO 7010
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 6h)
Voltage rating
12-24 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Feature led efficiency and wide voltage range → Business Impact lower energy consumption and extended LED life, reducing operating costs while maintaining high visibility in process areas. Application: ideal for continuous operation in manufacturing plants and laboratories. Feature IP66 enclosure and hazardous-location rating → Business Impact reliable protection against dust and water ingress in Zone 2/22 environments, boosting uptime and safety. Application: chemical plants, paint shops, and coastal facilities. Feature wall mounting and 2 x M20 mounting threads → Business Impact flexible installation in tight spaces, simplifying retrofits and new builds. Application: retrofit projects and new safety signage installations. Feature polycarbonate housing and gray finish → Business Impact rugged durability with long service life, minimizing replacement cycles. Application: demanding industrial environments with temperature extremes. Feature LED lamp type with white letter color and ISO 7010 pictogram → Business Impact consistent compliance with international signage standards, reducing audit findings. Application: ISO-standard emergency signaling in regulated facilities. Feature 12-24 Vdc, 50-60 Hz, arrow-down ISO 7010 design with silk-screen pictogram cover → Business Impact dependable operation across standard control systems and easy stock management. Application: unified signaling across multi-building sites and ISO-compliant signage programs.
Get a Quick Quote for a Eaton Crouse-Hinds 12193024123
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12193024123?
Enquire Now
FAQs
The 12193024123 is designed for 12-24 Vdc input, aligning with common industrial DC distribution and control circuits. It supports standard 50-60 Hz operation and wall-mount installation, simplifying retrofits and new builds. Ensure a stable DC source within the 12-24 Vdc range and verify enclosure space for the 380.5 mm length to prevent obstruction of the pictogram.
This unit is IECEx/ATEX certified for hazardous locations, covering Zone 2 and Zone 22, and it carries IP66 protection for dust and water ingress. It follows ISO 7010 pictogram standards for safety signage, and the housing, material, and mounting meet robust industrial requirements. Compliance supports regulatory approvals and safer commissioning in regulated facilities.
Yes. The EXIT 2 LED exit sign is designed for hazardous/classified locations, including Zone 2/Zone 22, with IP66 protection. Its wall-mountable design and durable polycarbonate housing withstand demanding environments. It is suitable for chemical plants, refineries, and offshore platforms where reliable emergency signaling and compliant pictograms are essential.
Key specifications include LED lamp type with white letter color, 12-24 Vdc input, and 50-60 Hz operation. The sign uses ISO 7010 arrow-down pictograms and a silk-screen cover, ensuring clear visibility and compliance. The unit weighs 2 kg, with dimensions 380.5 mm by 175 mm by 76 mm, optimized for wall mounting in constrained spaces.
LED efficiency yields lower energy use and longer service life than traditional lamps, reducing replacement and maintenance costs. The rugged IP66 enclosure and hazardous-location rating lower the risk of unplanned downtime due to environmental exposure. Regenting standards and long service life translate to lower total cost of ownership in facilities with frequent safety audits.
