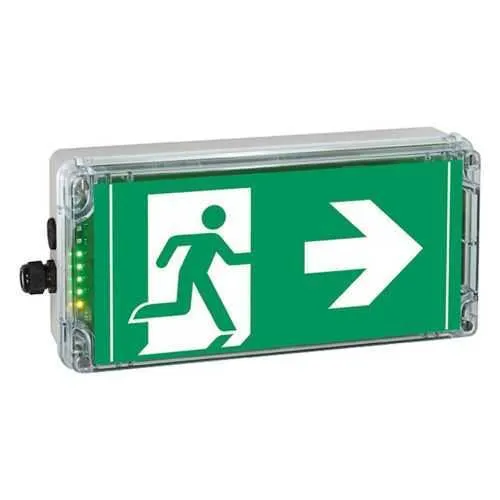

Eaton 12193030121 EXIT SIGN 2N LED Wall Mount - IP66
Part Number: 12193030121
Quick Summary
Eaton 12193030121 EXIT SIGN 2N is a LED wall‑mounted exit indicator designed for industrial facilities and hazardous locations. In harsh environments, conventional signs can fail due to moisture ingress, battery depletion, or power outages, risking unsafe downtime. This model addresses those challenges with a self-contained battery system and an IP66‑rated polycarbonate housing that resists dust and water ingress. It complies with IEC standards and IECEx/ATEX hazardous rating Zone 22 Zone 2, and carries the ISO 7010 pictogram designation for universal emergency signage. By combining robust reliability with regulatory credentials, it supports compliance, reduces maintenance cycles, and delivers dependable hazardous-location exit lighting for critical operations.
Product Information
Extended Description
12193030121 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EXIT 2 N exit sign, Arrowhead right, Gray, LED, White letters, Polycarbonate, Wall mount, Cover with silk-screen pictogram (arrow 3h), Battery, 2 x M20 metal thread, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series EXIT 2 N exit sign
Catalog Number
12193030121
Product Length/Depth
380.5 mm
Product Height
175 mm
Product Width
76 mm
Product Weight
2.5 kg
EAN
4250959910912
Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX hazardous rating
Zone 22 Zone 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Type
ISO 7010
Trade size
2 x M20 metal thread
Special features
Includes cover with silk-screen pictogram (arrow 3h), self-contained battery system
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50-60 Hz
Letter color
White
Material
Polycarbonate
Housing finish color
Gray
Mounting
Wall
Crouse-Hinds series CEAG EXIT/EXIT2 Nonmetallic LED Exit Signs catalog page
Crouse-Hinds series CEAG EXIT 2N Nonmetallic LED Exit Signs operating instructions
LED lamp technology delivers long service life and reduces energy use, cutting wattage during continuous operation. The result is lower total cost of ownership and fewer lamp replacements in high-traffic areas. This makes the exit sign ideal for busy manufacturing floors, automated warehouses, and hazardous locations where reliability matters most. Self-contained battery backup ensures visibility during power outages, boosting safety and reducing downtime during emergencies. The rugged IP66 rating and polycarbonate housing minimize ingress of dust and water, lowering maintenance and extending service life in harsh environments. Universal input across 110-277 VAC and 110-250 VDC at 50-60 Hz simplifies installation and global deployment, helping facilities standardize signage across sites. ISO 7010 compliance and clear arrow/pictogram support regulatory alignment, while wall‑mount installation with 2 x M20 threads enables quick retrofits and secure mounting. The nonmetallic construction and durable finish withstand industrial wear without compromising visibility or performance.
Get a Quick Quote for a Eaton Crouse-Hinds 12193030121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 12193030121?
Enquire Now
FAQs
The unit is wall‑mountable with 2 x M20 metal threads for secure installation. It ships with a cover featuring silk-screen pictogram and is designed for straightforward retrofits or new installs in industrial spaces. The built‑in battery backup and universal voltage range (110-277 VAC / 110-250 VDC) simplify wiring and location planning.
It uses LED illumination with a self-contained battery system to ensure exit visibility during mains interruptions. The voltage rating covers 110-277 VAC and 110-250 VDC at 50-60 Hz. The sign complies with ISO 7010 pictograms and provides an IP66 rating for rugged environments, making it suitable for hazardous locations per IECEx/ATEX Zone 22 Zone 2.
Yes. The EXIT SIGN 2N is certified for Hazardous/Classified Locations with IECEx/ATEX Zone 22 Zone 2 ratings and IP66 ingress protection. Its nonmetallic polycarbonate housing and ISO 7010 pictogram ensure reliable egress signaling in environments with dust, moisture, and potentially explosive atmospheres.
The sign adheres to IEC standards and IECEx/ATEX hazardous ratings, supporting Zone 22 Zone 2 classifications. It features ISO 7010 standard pictograms for universal recognition and is designed for hazardous locations, ensuring regulatory alignment for safe egress signage across sites.
The self-contained battery and long‑life LED reduce maintenance visits and lamp replacements, lowering lifecycle costs. IP66 protection minimizes ingress-related failures in harsh environments, while universal voltage support simplifies inventory and spares. Overall, facilities gain improved reliability, faster retrofits, and a safer, compliant egress solution with lower total cost of ownership.
