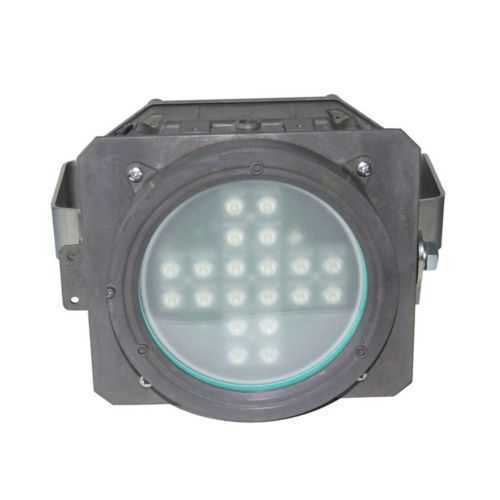

Eaton 13042106005 PXLED Floodlight - IP66/IP67
Part Number: 13042106005
Quick Summary
Eaton Crouse-Hinds PXLED floodlight is a rugged hazardous-location LED lighting solution for industrial facilities. This luminaire addresses the common pain point of unreliable, maintenance-heavy lighting in harsh environments by delivering robust performance and long life. With IECEx/ATEX certifications and Zone 1, Zone 2, Zone 21, and Zone 22 approvals alongside IP66/IP67 protection, it meets rigorous global standards. The PXLED integrates energy efficiency with durable construction, reducing maintenance costs and downtime. For engineers and procurement teams, this fixture combines reliable illumination, adaptability, and a favorable total cost of ownership in hazardous-area applications.
Product Information
Extended Description
13042106005 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 0.24A, 4000K color temp, 2 x M25 plastic plugs, Glass cover, 5000 lm, 102 lm/W, Anod copper-free alum, Asymmetric 2, >0.93, Swivel, Type 2410-max. 6mm² terminals, 110-277Vac, 127-270Vdc, 49W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042106005
Product Length/Depth
343 mm
Product Height
265 mm
Product Width
255 mm
Product Weight
9.9 kg
EAN
4251510797645
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 2 Zone 1 Zone 21 Zone 22
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
5000
Lumens per watt
102
Optical distribution
Asymmetric 2
Color temperature
4000 K
Lens material
Toughened glass
Type
Type 2410 - max. 6 mm² terminals
Entry size
2 x M25 plastic threaded plugs
Wattage
49W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.24A
Power factor
> 0.93
Material
Anodized copper-free aluminum
Special features
Swivel bracket
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED IES photometric files
Crouse-Hinds CEAG PXLED IES photometric files
Feature: Asymmetric 2 optical distribution with a toughened glass lens. Business Impact: Delivers targeted illumination for complex industrial layouts, improving visibility and reducing operator error. Application: Outdoor yards, loading areas, and plant perimeters. Feature: LED lamp with 5000 lumens at 4000 K and 102 lm/W efficiency. Business Impact: Lower energy consumption and extended service life, shrinking operating costs. Application: General area lighting in hazardous locations requiring steady, high-quality white light. Feature: Wide voltage and frequency tolerance 110-277 Vac / 127-270 Vdc, 50-60 Hz. Business Impact: Easy integration in diverse plants without custom transformers, minimizing installation time. Application: Global operations with mixed electrical infrastructure. Feature: 2 x M25 plugs and Type 2410 terminals (max 6 mm²). Business Impact: Simplified cabling and reliable connections in harsh environments, reducing wiring errors. Application: Hazardous-area enclosures and junctions. Feature: Swivel bracket, anodized copper-free aluminum, and toughened glass lens. Business Impact: Adjustable aiming, corrosion resistance, and durable protection against impact, lowering maintenance cycles. Application: Outdoor and internal areas exposed to corrosive atmospheres. This combination supports measurable outcomes such as improved site safety, reduced energy bills, and lower maintenance intervals, while aligning with long-tail needs like hazardous-location LED lighting, IECEx/ATEX certified floodlights, IP66/IP67 lighting, and retrofit-ready industrial luminaires.
Get a Quick Quote for a Eaton Crouse-Hinds 13042106005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042106005?
Enquire Now
FAQs
The PXLED floodlight uses a swivel bracket with an anodized copper-free aluminum housing and a toughened glass lens. It features 2 x M25 plastic threaded plugs and Type 2410 terminals (up to 6 mm²), enabling straightforward cabling in Zone 1/2 and Zone 21/22 environments while maintaining IP66/IP67 protection for outdoor or challenging indoor applications.
It carries IECEx and ATEX certifications with hazardous area ratings for Zone 1, Zone 2, Zone 21, and Zone 22, plus IP66/IP67 ingress protection, ensuring compliance across global industrial sites.
Yes. It is designed for Zone 1 and Zone 2 hazardous locations. Wiring supports 110-277 Vac or 127-270 Vdc at 50-60 Hz, with an amperage of 0.24 A and a power draw of 49 W. Use the 2 x M25 plugs and 6 mm² terminals to complete a compliant installation.
Key specs include 5000 lumens, 4000 K color temperature, 49 W power, 102 lm/W efficiency, 50-60 Hz, voltage tolerance 110-277 Vac or 127-270 Vdc, and IP66/IP67 protection. The light is LED-based with a corrosion-resistant aluminum housing and toughened glass lens.
The swivel bracket allows flexible aiming, reducing commissioning time. The rugged housing and glass lens withstand corrosive environments, lowering maintenance. High efficiency (102 lm/W) reduces energy costs, while long service life minimizes replacement cycles in hazardous locations.
