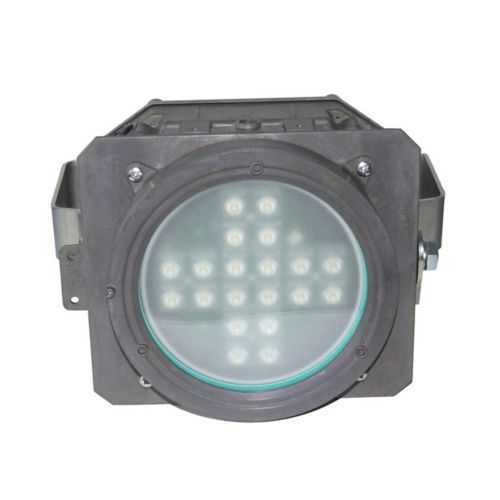

Eaton 13042110005 PXLED Floodlight - IECEx ATEX Zone 1 IP66
Part Number: 13042110005
Quick Summary
PXLED floodlight is a high-efficiency LED luminaire engineered for hazardous locations and demanding industrial applications. It delivers 5,000 lumens at 5700 K with a narrow beam while drawing 49 W and achieving a PF greater than 0.93, helping reduce energy use and heat load across the facility. The rugged anodized aluminum housing with toughened glass lens and a swivel bracket supports quick, flexible mounting even in tight spaces. With IECEx/ATEX certification and IP66/IP67 ratings, it meets Zone 1/2 and Zone 21/22 requirements for safe operation in explosive atmospheres. Designed for 110-277 Vac or 127-270 Vdc sources, it simplifies integration in mixed-voltage sites. For procurement, it offers reliable performance, lower lifecycle costs, and strong compliance across global hazardous-location standards.
Product Information
Extended Description
13042110005 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 0.24A, 5700 K color temp, 2 x M25 plastic threaded plugs, Glass cover, 5000 lm, 110 lm/W, Anodized copper-free aluminum, Narrow beam, > 0.93, Swivel bracket, 110-277 Vac, 127-270 Vdc, 49W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042110005
Product Length/Depth
343 mm
Product Height
265 mm
Product Width
255 mm
Product Weight
9.9 kg
EAN
4250959981349
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 2 Zone 22 Zone 21 Zone 1
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
5000
Lumens per watt
110
Optical distribution
Narrow beam
Color temperature
5700 K
Lens material
Toughened glass
Entry size
2 x M25 plastic threaded plugs
Wattage
49W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.24A
Power factor
> 0.93
Material
Anodized copper-free aluminum
Special features
Swivel bracket
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED IES photometric files
Crouse-Hinds CEAG PXLED IES photometric files
Feature: 5000 lumens at 5700 K with a narrow beam. Business Impact: enhances visibility and target illumination, improving accuracy and safety in critical tasks. Application: use along production lines, walkways, and equipment perimeters in hazardous locations. Feature: PF > 0.93 and 49 W power draw. Business Impact: lowers energy consumption and reduces heat generation, cutting operating costs over the asset lifetime. Application: continuous operation in substations, outdoor staging, and outdoor process areas. Feature: 110-277 Vac / 127-270 Vdc voltage range. Business Impact: supports flexible power sourcing and simplifies global deployments. Application: multinational facilities with mixed voltage systems. Feature: IP66/IP67 ingress protection. Business Impact: ensures reliable operation in dust, rain, and wash-down environments, reducing maintenance downtime. Application: outdoor installations and zones with high exposure. Feature: IECEx/ATEX certified for Zone 1/2 and Zone 21/22. Business Impact: compliance-driven procurement with reduced risk in hazardous areas. Application: chemical plants, offshore platforms, and mining operations. Feature: Toughened glass lens and anodized copper-free aluminum housing. Business Impact: durable construction minimizes maintenance and extends service life. Application: harsh environments with vibration and temperature fluctuations. Feature: Swivel bracket mounting. Business Impact: installation flexibility reduces labor time and allows precise aiming. Application: ceiling, wall, or gantry mounting in constrained spaces.
Get a Quick Quote for a Eaton Crouse-Hinds 13042110005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042110005?
Enquire Now
FAQs
Install with the included swivel bracket and confirm clearance for the 343 mm length, 265 mm height, and 255 mm width. Use the 2 x M25 plastic threaded plugs for wiring glands, ensure proper cable management, and mount on a compatible support structure rated for hazardous locations. Follow local IECEx/ATEX installation practices.
The luminaire operates from 110-277 Vac or 127-270 Vdc with a 50-60 Hz frequency range. It draws 0.24 A at 49 W, provides a lumen output of 5000 with a color temperature of 5700 K, and achieves a PF greater than 0.93, enabling reliable performance across mixed voltage sites.
Yes. It carries IECEx/ATEX certifications and IP66/IP67 ratings, meeting Zone 1/2 and Zone 21/22 requirements. This makes it appropriate for explosive atmospheres in chemical plants, refineries, and other hazardous environments where safe, compliant illumination is essential.
The luminaire uses anodized copper-free aluminum and a toughened glass lens, delivering robust corrosion resistance and impact durability. The protective enclosure supports long service life in harsh environments, reducing maintenance intervals in industrial facilities and outdoor sites.
With LED technology delivering 5000 lumens at 5700 K while consuming only 49 W, energy costs drop significantly compared with traditional luminaires. The IP66/IP67 rating and rugged construction reduce maintenance frequency in harsh locations, improving uptime and lowering lifecycle costs across the asset base.
