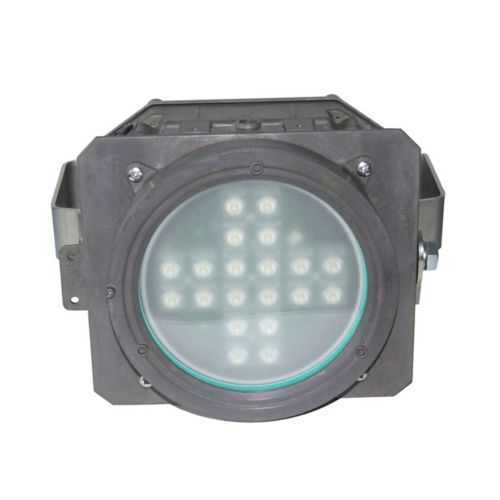

Eaton 13042111005 Floodlight - IECEx/ATEX Zone 1
Part Number: 13042111005
Quick Summary
Floodlight for hazardous locations delivers high-output illumination for industrial facilities. Engineers struggle to maintain consistent lighting in explosion-risk zones where safety certifications and rugged IP ratings are non-negotiable. This luminaire carries IECEx/ATEX certifications with Zone 1 Zone 21 Zone 22 ratings and IP66/IP67 protection, ensuring safe operation across harsh environments. With 5000 lumens at 5700 K and a 49 W LED, it lowers energy use and reduces maintenance while offering a wide beam for open areas. In addition to rugged construction and a swivel bracket, it supports quick installation and reliable ongoing performance in mining, chemical processing, and oil and gas sites.
Product Information
Extended Description
13042111005 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 0.24A, 5700 K color temp, 2xM25 plastic plugs, Glass cover, 5000 lm, 106 lm/W, Anod copper-free alum, Wide, >0.93, Swivel bracket, Type 2410-max. 6mm² terminals, 110-277Vac, 127-270Vdc, 49W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042111005
Product Length/Depth
343 mm
Product Height
265 mm
Product Width
255 mm
Product Weight
9.9 kg
EAN
4250959981356
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 2 Zone 22 Zone 1 Zone 21
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
5000
Lumens per watt
106
Optical distribution
Wide beam
Color temperature
5700 K
Lens material
Toughened glass
Type
Type 2410 - max. 6 mm² terminals
Entry size
2 x M25 plastic threaded plugs
Wattage
49W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.24A
Power factor
> 0.93
Material
Anodized copper-free aluminum
Special features
Swivel bracket
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED LED LDT photometric files
Crouse-Hinds CEAG PXLED LED LDT photometric files
The PXLED floodlight uses a high-efficiency LED source delivering 5000 lumens at 5700 K, producing bright, consistent illumination with a wide beam that improves situational awareness in open industrial spaces. This translates to faster inspections, safer maintenance, and reduced time-to-light in critical areas, all while keeping energy consumption low at 49 W and a power factor above 0.93 for predictable electrical demand. The copper-free aluminum housing and toughened glass lens provide robust protection against dust, water, and vibration, extending service life in harsh environments and minimizing replacement costs. Its IP66/IP67 enclosure, combined with hazardous-location ratings (Zone 1/21/22), ensures compliance and safe operation in chemical plants, mining, and oil & gas facilities. The mounting versatility of a swivel bracket and 2x M25 plugs simplifies installation and future repositioning, supporting quick retrofit programs and reduced downtime. This luminaire integrates seamlessly with 110–277 Vac or 127–270 Vdc feeds, enabling flexible site deployment and scalable lighting design across mixed electrical infrastructures.
Get a Quick Quote for a Eaton Crouse-Hinds 13042111005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042111005?
Enquire Now
FAQs
Plan for an adaptable mounting using the swivel bracket to achieve aimed lighting coverage in Zone 1/21/22 areas. Ensure 2x M25 plastic entries are accessible for cabling, and use the Type 2410 terminals (max 6 mm²) for clean terminations. Confirm IP66/IP67 protection and gas-resistance suitability align with your hazardous area classifications to minimize risk during commissioning and maintenance.
Yes. The PXLED operates from 110–277 Vac and 127–270 Vdc, covering common global grid and DC bus configurations. The 50–60 Hz frequency rating supports typical industrial power systems. This flexibility supports mixed electrical infrastructures and simplifies retrofits without requiring separate luminaires for AC and DC sections.
The PXLED carries IECEx/ATEX certifications with Zone 1/21/Zone 22 approvals, aligning with regulatory requirements for hazardous locations. IP66/IP67 compliance means the luminaire is dust-tight and protected against powerful water jets (IP66) and immersion (IP67), ensuring reliable operation in harsh outdoor and indoor environments.
The unit delivers 5000 lumens at a color temperature of 5700 K with a measured efficacy of about 106 lm/W. It draws 49 W with an amperage of 0.24 A, and a power factor greater than 0.93. This combination reduces energy costs while maintaining bright, consistent light crucial for hazard-sensitive tasks.
Industries like oil and gas, chemical processing, mining, and other hazardous facilities benefit most due to IECEx/ATEX certification, Zone 1/21/22 ratings, and rugged IP66/IP67 protection. The lightweight yet durable anodized copper-free aluminum construction, together with easy installation via swivel mounting and M25 entries, supports rapid deployments and dependable uptime in demanding environments.
