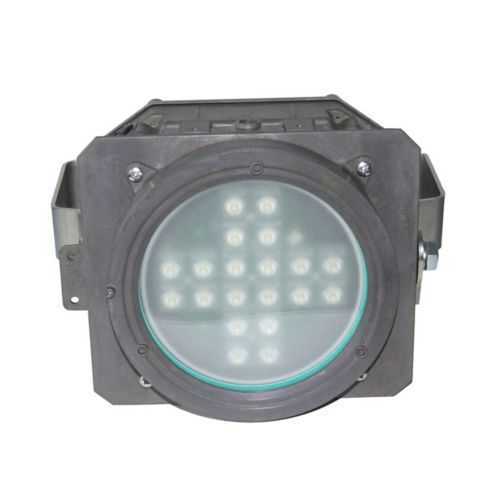

Eaton Crouse-Hinds 13042111011 Floodlight - IECEx/ATEX
Part Number: 13042111011
Quick Summary
Eaton's Crouse-Hinds CEAG PXLED floodlight delivers high-efficiency illumination for hazardous-location industrial facilities. In harsh plant environments, reliability, maintenance downtime, and safety compliance are chronic pains for engineers and procurement teams. This LED floodlight carries IECEx/ATEX certification and IP66/IP67 protection, enabling safe operation in Zones 1 and 2 as well as 21 and 22. The toughened-glass lens, anodized copper-free aluminum housing, and swivel bracket mix rugged durability with flexible installation. With 5000 lumens at 5700 K and 49 W, it reduces energy use while sustaining visibility across shifts. Designed for retrofit and new builds in oil, gas, chemical, and mining sectors, it supports uptime and lifecycle-cost efficiency.
Product Information
Extended Description
13042111011 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED flood, 0.24A, 5700 K color temp, 1xM25 metal gland, 1xM25 plastic plug, Glass cover, 5000 lm, 102 lm/W, Anod copper-free alum, Wide, >0.93, Swivel, Type 2410-max. 6mm² term, 110-277Vac, 127-270Vdc, 49W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042111011
Product Length/Depth
343 mm
Product Height
265 mm
Product Width
255 mm
Product Weight
9.9 kg
EAN
4250959982018
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 2 Zone 1 Zone 22 Zone 21
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
5000
Lumens per watt
102
Optical distribution
Wide beam
Color temperature
5700 K
Lens material
Toughened glass
Type
Type 2410 - max. 6 mm² terminals
Entry size
1 x M25 ADE-1F2 metal gland, 1 x M25 plastic threaded plug
Wattage
49W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.24A
Power factor
> 0.93
Material
Anodized copper-free aluminum
Special features
Swivel bracket
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED LED LDT photometric files
Crouse-Hinds CEAG PXLED LED LDT photometric files
Feature: LED performance delivering 5000 lumens at 5700 K with 102 lm/W efficacy. Business Impact: High-contrast, reliable illumination with lower energy consumption and reduced cooling load. Application: Large hazard-area workspaces, outdoor yards, and process areas that require consistent brightness. Feature: Wide beam with toughened-glass lens. Business Impact: Uniform coverage reduces the number of fixtures and maintenance events while improving safety margins. Application: Docking zones, plant perimeters, and access corridors where wide-area visibility matters. Feature: IP66/IP67 ingress protection and IECEx/ATEX Zones 1/2, 21/22 ratings. Business Impact: Proven reliability in dust, water, and explosive atmospheres, minimizing enclosure breaches and downtime. Application: Refineries, chemical plants, and offshore locations. Feature: Flexible electrical range 110-277 Vac / 127-270 Vdc at 50-60 Hz with PF > 0.93. Business Impact: Seamless integration with existing power systems and robust performance under grid fluctuations. Application: Retrofit projects and new installations with varied power supplies. Feature: Copper-free aluminum housing and glass lens with swivel mounting. Business Impact: Corrosion resistance and adaptable mounting simplify installation and extend service life. Application: Outdoor and wet locations where long-term durability matters. Feature: 1 x M25 gland and 1 x M25 plug with Type 2410 terminals (up to 6 mm²). Business Impact: Simplified, compliant wiring and future-accessibility for maintenance. Application: Space-constrained or retrofit installations in hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds 13042111011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042111011?
Enquire Now
FAQs
The PXLED floodlight supports surface mounting with its swivel bracket and offers entry via 1 x M25 metal gland and a 1 x M25 plastic plug. Terminals are Type 2410 with a maximum 6 mm² conductor size, enabling straightforward wiring in restricted spaces and ensuring compliance with hazardous-area installation practices.
Key specs include 5000 lumens at 5700 K, 49 W power, 110-277 Vac or 127-270 Vdc, 50-60 Hz operation, 0.24 A current, and a power factor > 0.93 with 102 lm/W efficiency. These values deliver reliable brightness, energy efficiency, and stable operation in fluctuating plant power conditions.
Yes. The PXLED is rated for IECEx/ATEX hazardous locations, covering Zones 1, 2, 21, and 22, along with IP66/IP67 protection. This supports safe, compliant operation in chemical, petrochemical, and mining environments, backed by official certification documents.
LED technology provides longer life and reduced maintenance compared to traditional luminaires, while rugged housing and sealed IP66/IP67 construction protect against dust, moisture, and corrosive atmospheres. The combination lowers replacement frequency, minimizes downtime, and improves inspection intervals in demanding facilities.
Eaton provides brochures, EU-Type Examination certificates, Russian certificates, IECEx certificates, UK declarations, operating instructions, and photometric data. These resources support compliance verification, permitting, and performance validation during commissioning and audits.
