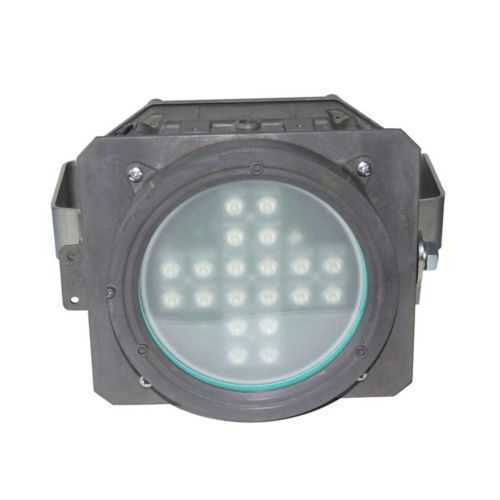

PXLED Floodlight 13042115011 Eaton Crouse-Hinds - IECEx/IP67

LED performance delivers 5000 lumens at 5700 K with a high 102 lm/W efficacy. This results in crisp, high-contrast hazardous area illumination that enhances safety while trimming energy consumption compared with legacy luminaires. Operators benefit from longer service intervals and lower operating costs on plant floors, outdoor yards, and hazardous work zones. Protection and certifications are built in, including IECEx/ATEX for Zone 1 and Zones 21/22, plus IP67/IP66 ingress protection. This combination supports regulatory compliance and reliable operation in chemical plants, offshore platforms, and mining sites. The rugged construction minimizes corrosion risks and maintains performance in challenging climate conditions. The housing uses anodized copper-free aluminum with laminated frosted glass lenses for durability and weather resistance. A swivel bracket enables quick aiming during commissioning and on-the-fly adjustments during maintenance. The result is a versatile fixture that stands up to demanding environments and simplifies retrofits in space-constrained installations. Electrical compatibility is broad, with universal 110–277 Vac and 127–270 Vdc input over 50–60 Hz. Rated at 49 W and 0.24 A with a power factor >0.93, it delivers stable brightness while reducing waste heat. The wide voltage window supports mixed electrical infrastructures and minimizes the need for power conditioning or rewiring. Wiring and mounting are streamlined with 1 x M25 gland and 1 x M25 plastic plug, plus Type 2410 terminals for up to 6 mm². The length, height, and beam configuration provide flexible installation in ceilings, walls, or poles, while the laminated glass lens protects against impact and moisture. Comprehensive resources, including IES files and installation instructions, are readily accessible for engineers.
